Mercusys MW330HP User Manual

MW330HP
300Mbps High Power Wireless N Router
1. Click and drag across the cells to set the restriction time periods.
2. Click Save.

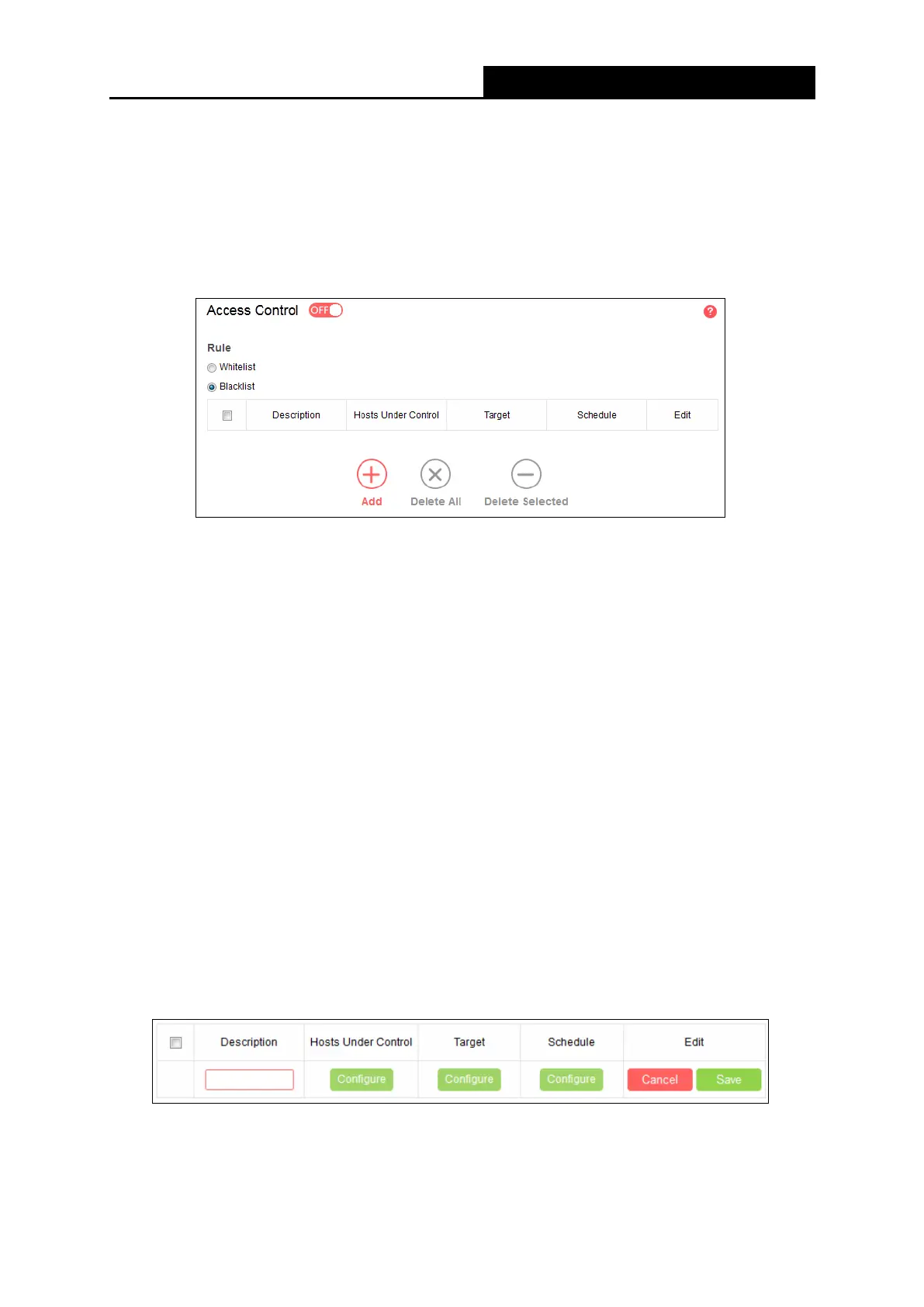

5.3.2 Access Control
Go to Network Control→Access Control, and then you can configure the access control in
the screen.
• Access Control - Click the button to enable or disable Access Control.
• White List - Select to allow only the internet activities specified in the table.
• Black List - Select to block only the internet activities specified in the table.
• Description - Displays the name of the rule and this name is unique.
• Hosts Under Control - Displays the host selected in the corresponding rule.
• Target - Displays the target selected in the corresponding rule.
• Schedule - Displays the schedule selected in the corresponding rule.
• Edit - Here you can edit an existing rule.
• Add - Click to add a new rule entry.
• Delete All - Click to delete all the entries in the table.
• Delete Selected - Click to delete selected entries in the table.
To add a new rule, follow the steps below.
1. Toggle on to enable Access Control.
2. Select Whitelist or Blacklist.
- 34 -

Mercusys MW330HP Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Product type	Tabletop router
Product color	Black
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	-74 dBmW
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	9 V
Power source type	AC
Antenna gain level (max)	7 dBi
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	127 mm
Width	192 mm
Height	36 mm
