MW330HP
300Mbps High Power Wireless N Router
3. Click Add and enter a brief description for the rule.

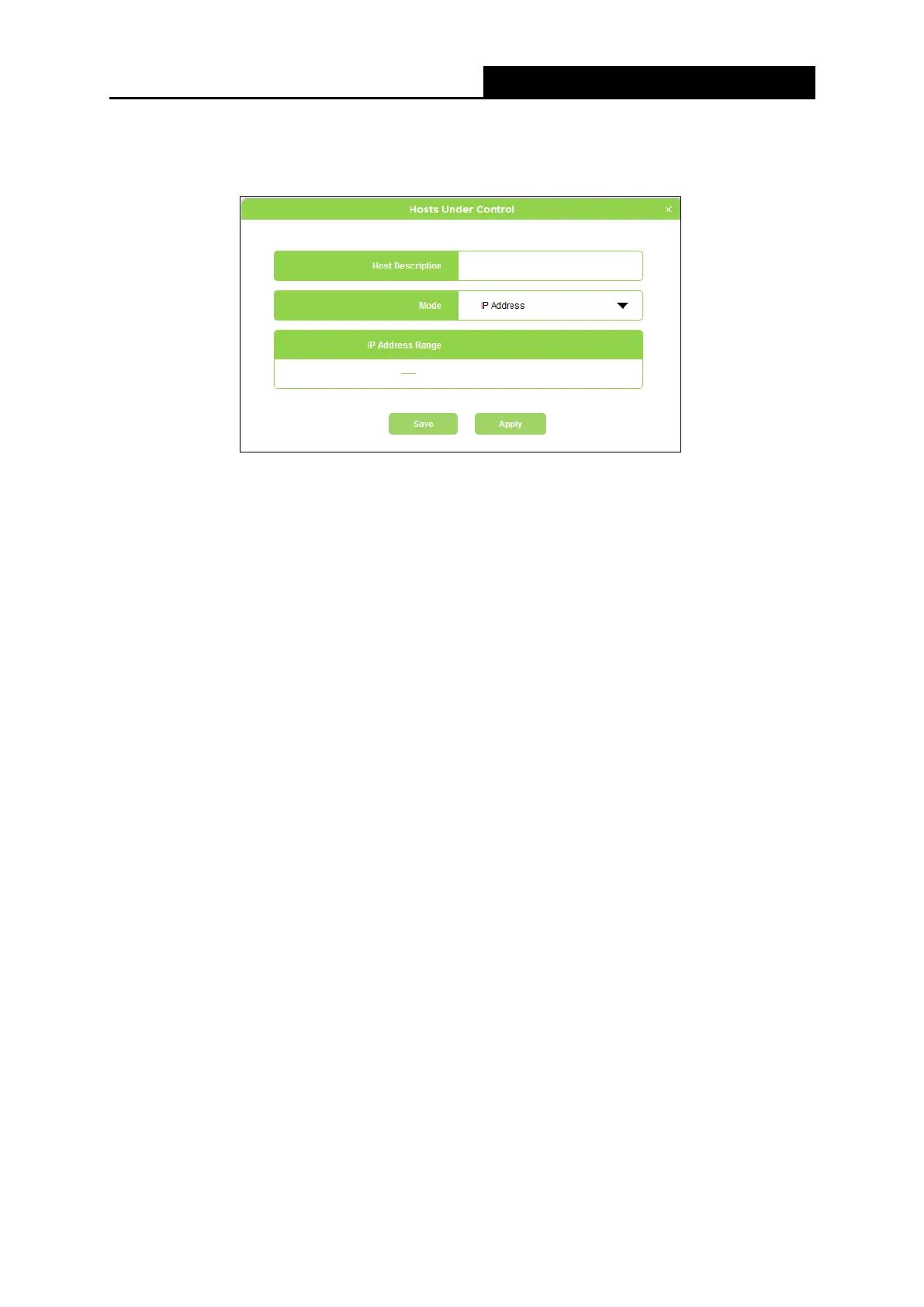

4. Click Configure in the Hosts Under Control column to add a host, then click Apply.
Host Description - In this field, create a unique description for the host.
Mode - Here are two options, IP Address and MAC Address. You can select either of
them from the drop-down list.
If the IP Address is selected, you can see the following item:
IP Address Range - Enter the IP address or address range of the host in
dotted-decimal format (e.g. 192.168.1.23).
If the MAC Address is selected, you can see the following item:
MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g.
00-11-22-33-44-AA).
- 35 -

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercusys MW330HP and is the answer not in the manual?

Mercusys MW330HP Specifications

General IconGeneral
DSL WANNo
Ethernet WANYes
WAN connection typeRJ-45
Product typeTabletop router
Product colorBlack
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)-90 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)-78 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)-74 dBmW
Ethernet LAN (RJ-45) ports3
Output current0.6 A
Output voltage9 V
Power source typeAC
Antenna gain level (max)7 dBi
Cables includedLAN (RJ-45)
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Security algorithmsWPA-PSK, WPA2-PSK
Weight and Dimensions IconWeight and Dimensions
Depth127 mm
Width192 mm
Height36 mm
