7 Circuit boards and diagrams
Back to contents >
7 CIRCUIT BOARD S AND DIAGRA MS
IO BOARD

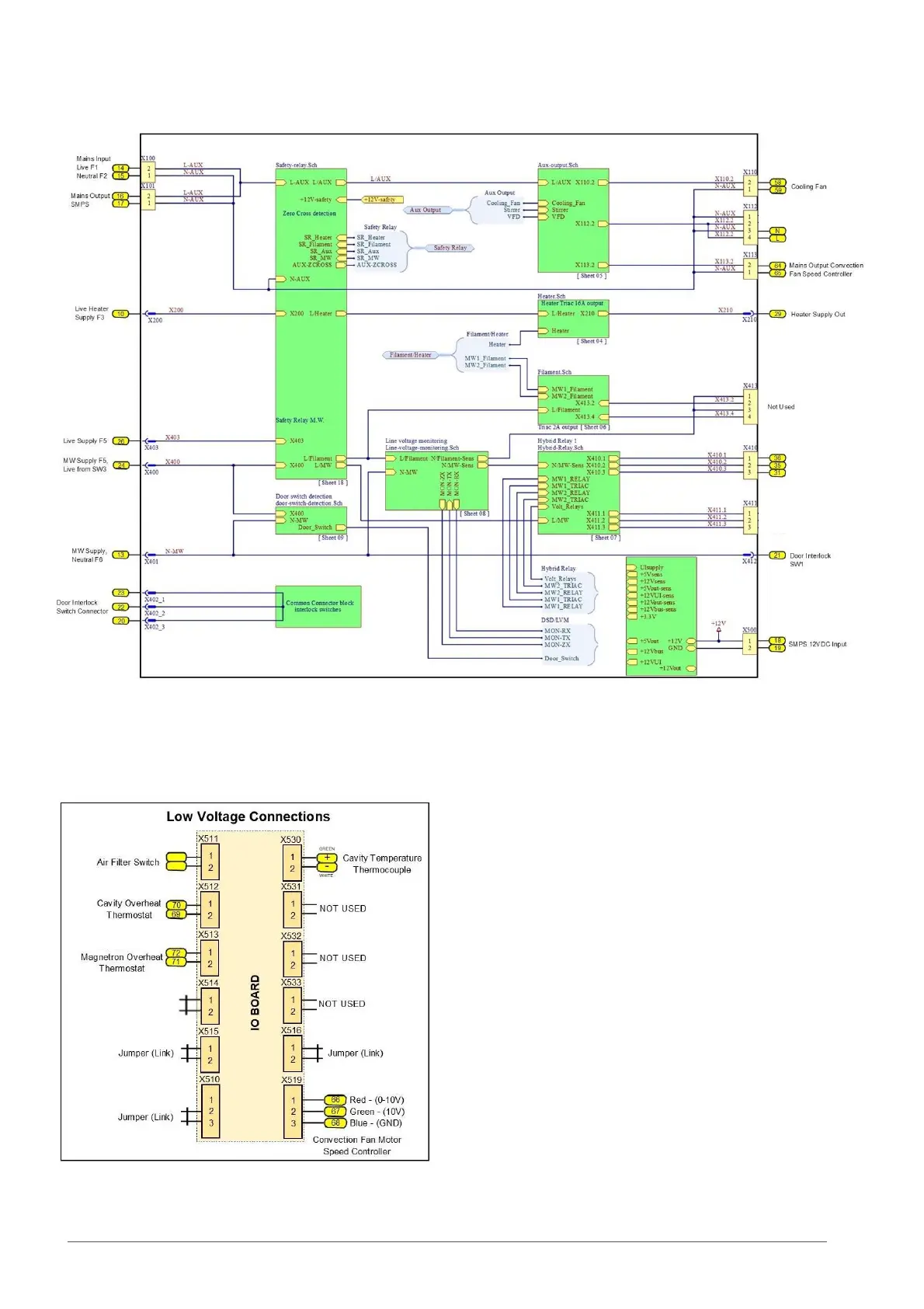

IO Board LV Connections.
Notes: Standard power versions
X514. Link fitted.
X112. Pins 1 & 2 not used
X411. Not used
Jumper (Link)
Not Used
Stirrer Motor
Not Used
HV Transformer
