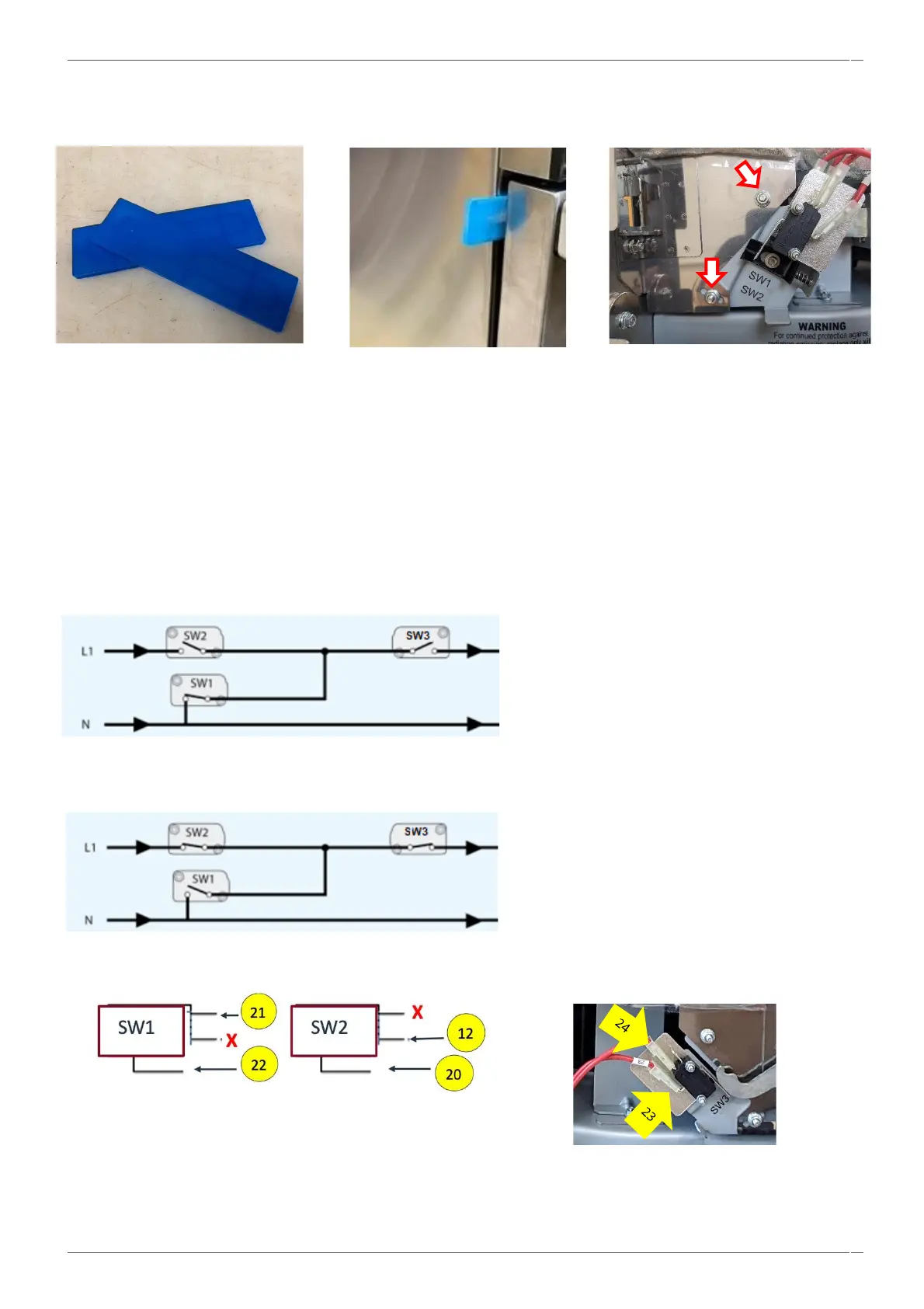

6. Remove the 3mm spacers and replace with two 5mm spacers, again over the top corners of the door seal. Then
carefully close the door ensuring the spacers are still in position.
1. Loosen the left interlock adjuster nuts, SW1 and SW2 (Arrowed).
2. Loosen the two flange head screws just enough to let the microswitch bracket move.
3. The switch bracket can now be rotated around the top screw.
4. As soon as the secondary door switch (SW2) closes, nip up the two flange head nuts to 2.1Nm.
5. Remove the spacers, then open and close the appliance door a few times to validate the door switches operate in the
correct sequence.
6. Once the panels have been refitted, conduct a microwave leakage test.
IMPORTANT:
Check if the switches operate in the following sequence as microswitch SW3 must switch the load current.
Oven door open
Closing the door:
▪ SW1 opens first.
▪ SW2 closes second.
▪ SW3 closes third.
Oven door closed.
Opening the door:
▪ SW3 opens first.
▪ SW2 opens second.
▪ SW1 closes third.
Right-Hand Side Left-Hand side
Outer Switch Inner Switch (closest to cooling fan)
