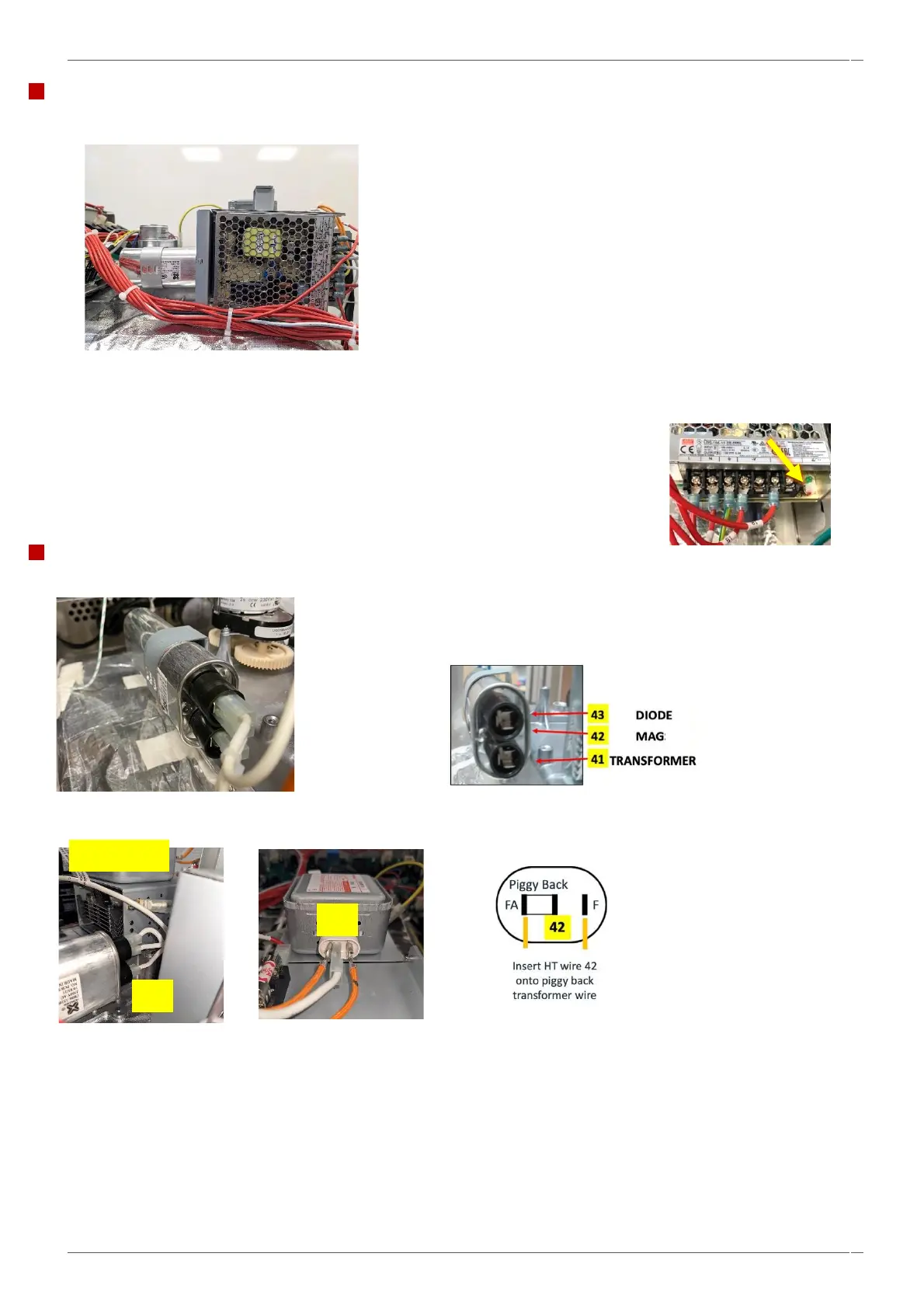

Switch Mode Power Supply.
The Switch Mode Power Supply (ELV) is located.
▪ On the top right of the cavity, towards the
rear.
Providing the 12VDC supply to IO Board.
The 12VDC output voltage adjuster is factory pre-set and does not require adjustment.
The green LED is illuminated to show correct functionality.
Capacitor (high voltage).
The high voltage capacitor is located on top of the cavity and is fixed by a sheet
metal bracket and a pozidriv (PZ2) screw.
