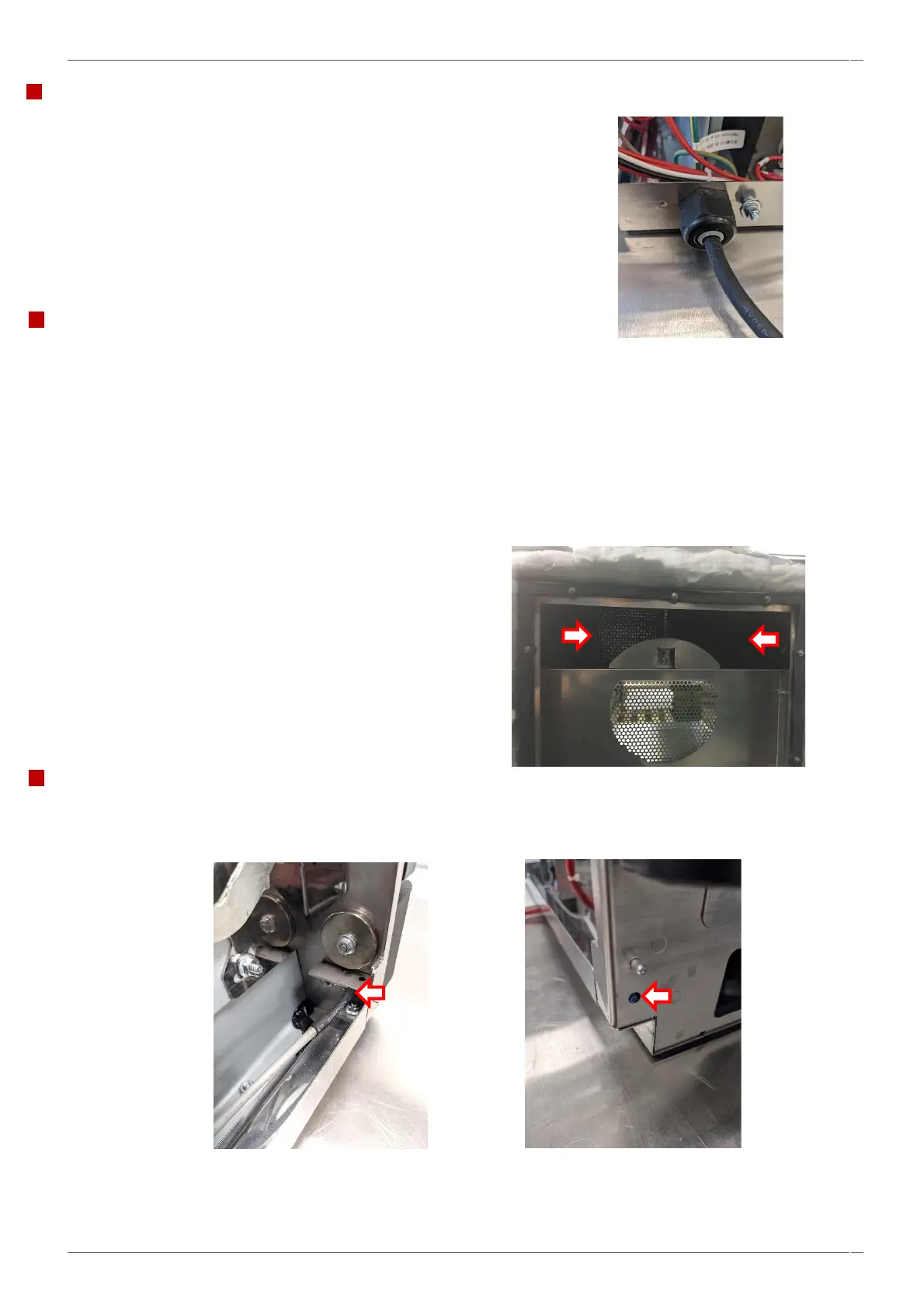

Mains Cable Entry.
The mains cable enters the oven through a PG21 / PG16 cable gland on the
base plate at the rear right-hand side of the oven.
Catalytic Converters.
See section 6.13 for convection fan motor assembly removal to access the catalytic
converters.
Once the fan motor assembly has been removed from the rear of the cavity, the
four M7 hex nuts should be removed at the rear of the cavity (inside) to allow
removal of the internal box and catalytic converters.
The upper catalyst is fitted using one M4 hex flange nut,
tightened to 2.1 Nm.
Air Filter Microswitch.
The air filter microswitch is located on the bottom front left-hand side of the cavity frame by a M5.5 hex nut and wired
directly to the IO Board (X511).
