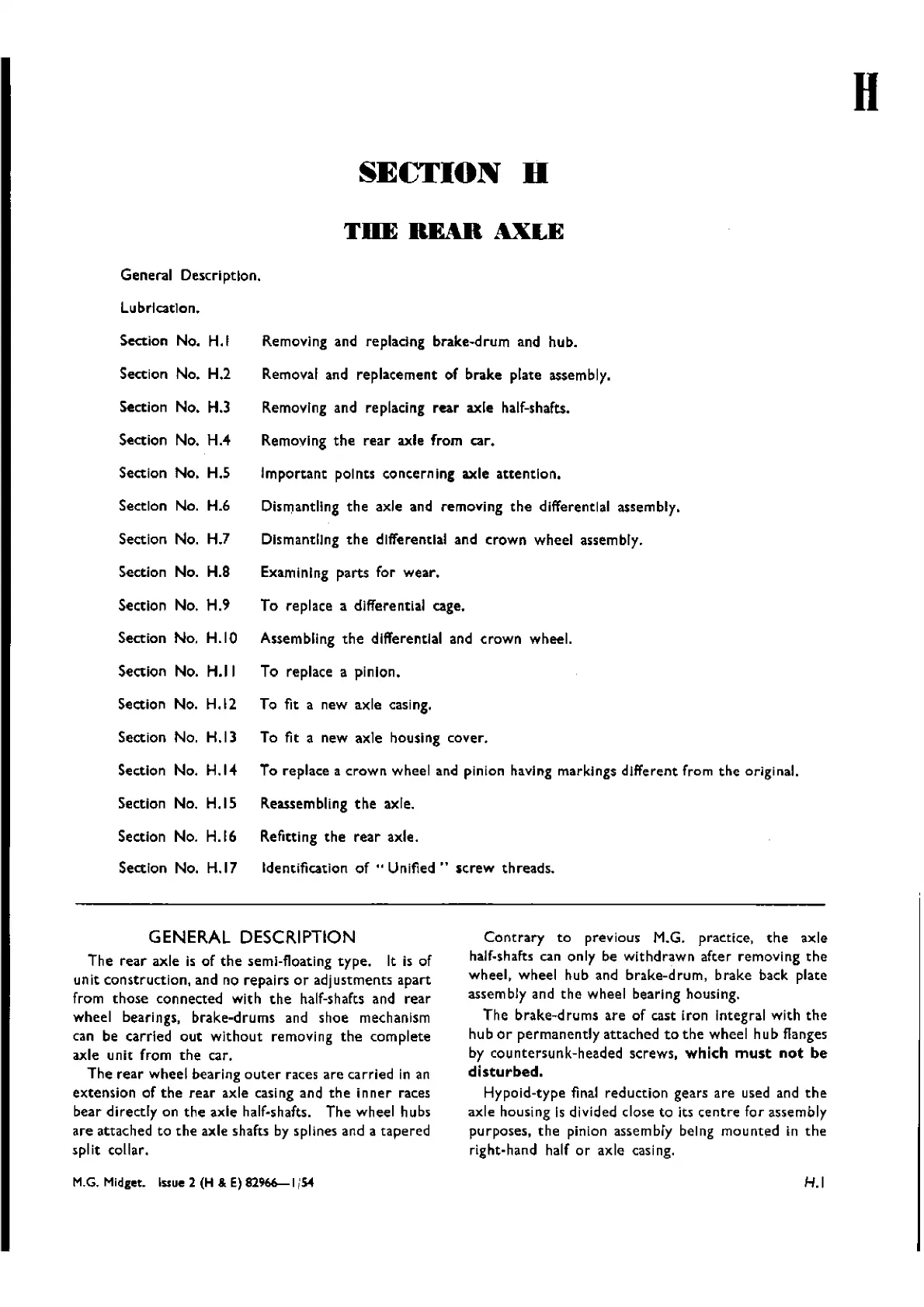

SECTION H
TOE REAIl AXLE
General Description.
LubrIcatIon.
H
Section
No.
H.I
Section No. H.2
Section
No. H.3
Section
No. HA
Section No. H.5
Section No. H.6
Section No. H.7
Section No.
H.a
Section
No.
H.9
Section No. H.IO
Section
No.
H.I!
Section No. H.12
Section No. H.13
Sectlon No.
H.I'"
Section No. H.IS
Section No. H.16
Section No.
H.17
Removing and replacing brake-drum and hub.
Removal and replacement of brake plate assembly.
Removing
and replacing rear axle half-shafts.
Removing
the rear axle from car,
Important points concerning axle attention.
Dismantling the axle and removing the differential assembly.
Dismantling
the differential and crown wheel assembly.
Examining
parts for wear.
To replace a differential age.
Assembling the differential and crown wheel.
To replace a pinion.
To fit a new axle casing.
To
fit a new axle housing cover,
To replace a crown wheel and pinion having markings different from the original.
Reassembling
the axle.
Refitting
the rear axle.
Identification
of .. Unified" screw threads.
GENERAL DESCRIPTION
The rear axle is of the semi-floating type. It is of
unit construction, and no repairs or adjustments apart
from those connected with the half-shafts and rear
wheel bearings, brake-drums and shoe mechanism
Cdn be carried out without removing the complete
axle unit from the car.
The rear wheel bearing outer races are carried in an
extension of the rear axle casing and the inner races
bear directly on the axle half-shafts. The wheel hubs
are attached to the axle shafts by splines and a tapered
split collar.
M.G. Midget. Issue 2 (H & E) 82966-1/5-4
Contrary to previous M.G. practice, the axle
half-shafts an only be withdrawn after removing the
wheel, wheel hub and brake-drum, brake back plate
assembly and
the wheel bearing housing.
The brake-drums are of cast iron integral with the
hub or permanently attached to the wheel hub flanges
by
countersunk-headed screws, which must not be
disturbed.
Hypoid-type final reduction gears are used and the
axle housing is divided close to its centre for assembly
purposes, the pinion assembly being mounted in the
right-hand half or axle casing.
H.I
