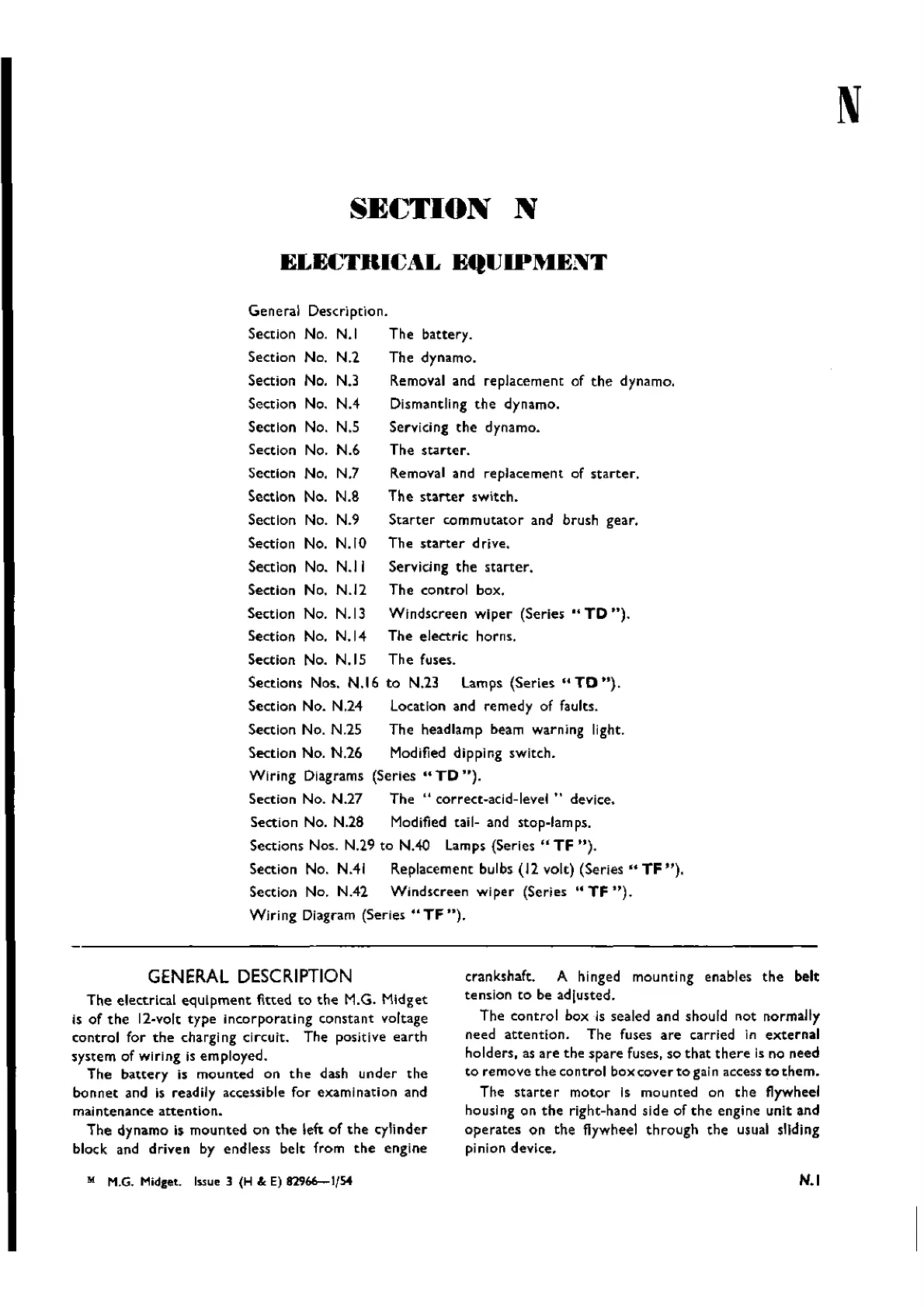

SECTION N
ELECTRICAL
EQUIPMENT
General Description.
Section No. N.I The battery.
Section No. N.2 The dynamo.
Section No. N.3 Removal and replacement of
the
dynamo.
Section No. NA Dismantling
the
dynamo.
Section No. N.S Servicing
the
dynamo.
Section No. N.6 The
starter.
Section No. N.7 Removal and replacement of
starter.
Sectlon No. N.B The starter switch.
Section No. N.9
Starter
commutator
and brush gear.
Seetio n No. N.
10Th
e
starter
drive.
Section No. N.! I Servicing
the
starter.
Section No. N.12 The control box.
Section No. N.
13
Wi ndscreen wiper (Series .. TO
").
Section No. N.14
The
electric horns.
Section No. N.15 The fuses.
Sections Nos. N.16
to
N.23 Lamps (Series .. TO
").
Section No. N.24
location
and remedy of faults.
Section No. N.25 The headlamp beam warning light.
Section No. N.26 Modified dipping switch.
Wiring
Diagrams
(Series"
TD
").
Section No. N.27
The"
correct-actd-level .. device.
Section No. N.2a Modified tail- and stop-lamps.
Sections Nos. N.29 to NAO
lamps
(Series"
TF
").
Section No. NAI Replacement bulbs (12 volt)
(Series"
TF
"),
Section No. NA2 Windscreen Wiper
(Series"
TF
").
Wiring
Diagram
(Series"
TF
").
N
GENERAL
DESCRIPTION
The
electrical
equtpment
fitted
to
the
M.G. Midget
is of
the
12-volt
type
incorporating constant voltage
control for
the
charging circuit. The positive
earth
system of wiring is employed.
The
battery
is mounted on
the
dash
under
the
bonnet
and is readily accessible for examination and
maintenance
attention.
The
dynamo is mounted on
the
left of
the
cylinder
block and driven by endless belt from
the
engine
M M.G. Midget. Issue 3
(1-1
&. E) 82966--1/504
crankshaft. A hinged mounting enables
the
belt
tension
to
be adjusted,
The control box is sealed and should
not
normally
need
attention.
The fuses
are
carried in
external
holders. as are
the
spare fuses, so
that
there
is no need
to
re move
the
control box
cover
to
galn access
to
the
m.
The
starter
motor
is mounted on
the
flywheel
housing on
the
right-hand side of
the
engine unit and
operates
on
the
flywheel
through
the
usual sliding
pinion device.
N.I
