Remove
the
road wheel by prlslng off
the
hub
cover
with
the
flat on
the
end of
the
wheel nut spanner,
giving
the
spanner
a sideways motion and
not
a
radial
one.
The
spanner
end
should be
inserted
in
the
depressions provided adjacent
to
the
studs holding
the
cover.
Unscrew
the
wheel stud
nuts
and
withdraw
wheel.

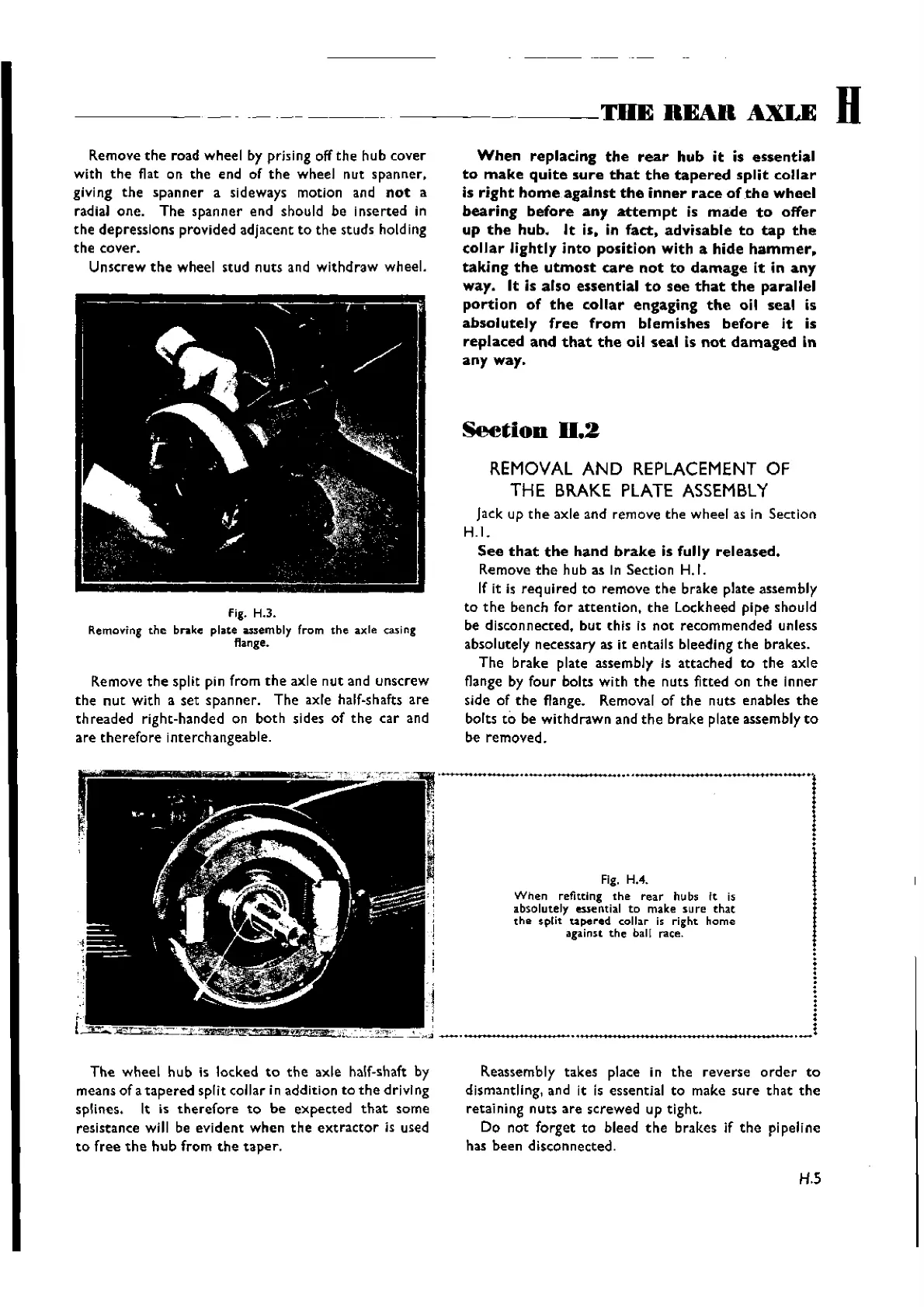

fig.
H.3.
Removing
the
brake plate assembly from
the
axle caslng
flange.
Remove
the
split pin from
the
axle
nut
and unscrew
the
nut
with a
set
spanner. The axle half-shafts
are
th readed right-handed on
both
sides
of
the
car
and
are
therefore
interchangeable.
---THE
BEAll
AXLE
H
When
replacing
the
rear
hub
it
is
essential
to
make
quite
sure
that
the
tapered
split
collar
is
right
home
against
the
inner
race
of
the
wheel
bearing
before
any
attempt
is
made
to
offer
up
the
hub.
It
is. in
fact,
advisable
to
tap
the
collar
lightly
into
position
with
a
hide
hammer.
taking
the
utmost
care
not
to
damage
it
in
any
way.
It is
also
essential
to
see
that
the
parallel
portion
of
the
collar
engaging
the
oil
seal
is
absolutely
free
from
blemishes
before
it
is
replaced
and
that
the
oil
seal
is
not
damaged
in
any
way.
Seetion
B.2
REMOVAL
AND
REPLACEMENT OF
THE
BRAKE
PLATE
ASSEMBLY
Jack up
the
axle and remove
the
wheel as in Section
H.1.
See
that
the
hand
brake
is
fully
released.
Remove
the
hub as In Section H.1.
If
it Is
required
to remove
the
brake plate assembly
to
the
bench for
attention.
the
lockheed
pipe should
be disconnected,
but
this is
not
recommended
unless
absolutely
necessary as it entails bleeding
the
brakes.
The brake plate assembly Is attached
to
the
axle
flange by
four
bolts with
the
nuts fitted on
the
Inner
side of
the
flange. Removal
of
the
nuts enables
the
bolts
to
be
withdrawn
and
the
brake plate assembly
to
be removed.
The
wheel hub is locked
to
the
axle half-shaft by
means
of
a
tapered
split collar in addition
to
the
driving
splines. It is
therefore
to
be expected
that
some
resistance
will be
evident
when
the
extractor
is used
to
free
the
hub
from
the
taper.
"-····----------·
........
·1
~
Fig. H.4.
When
refitting
the
rear
hubs it is
absolutely esse ntial
to
make su re
that
the
split
upered
collar is right home
against
the
ball race.
.
.
I
___
_.._..>+-<+..._
.....
11 1
Illlt
Illll.
III
.................
'
.....
'
...
110+'
...
'
.....
_._i
Reassembly takes place in
the
reverse
order
to
dismantling. and it is essential
to
make
sure
that
the
retaining
nuts
are screwed up
tight.
Do not
forget
to
bleed
the
brakes jf
the
pipeline
has been disconnected.
