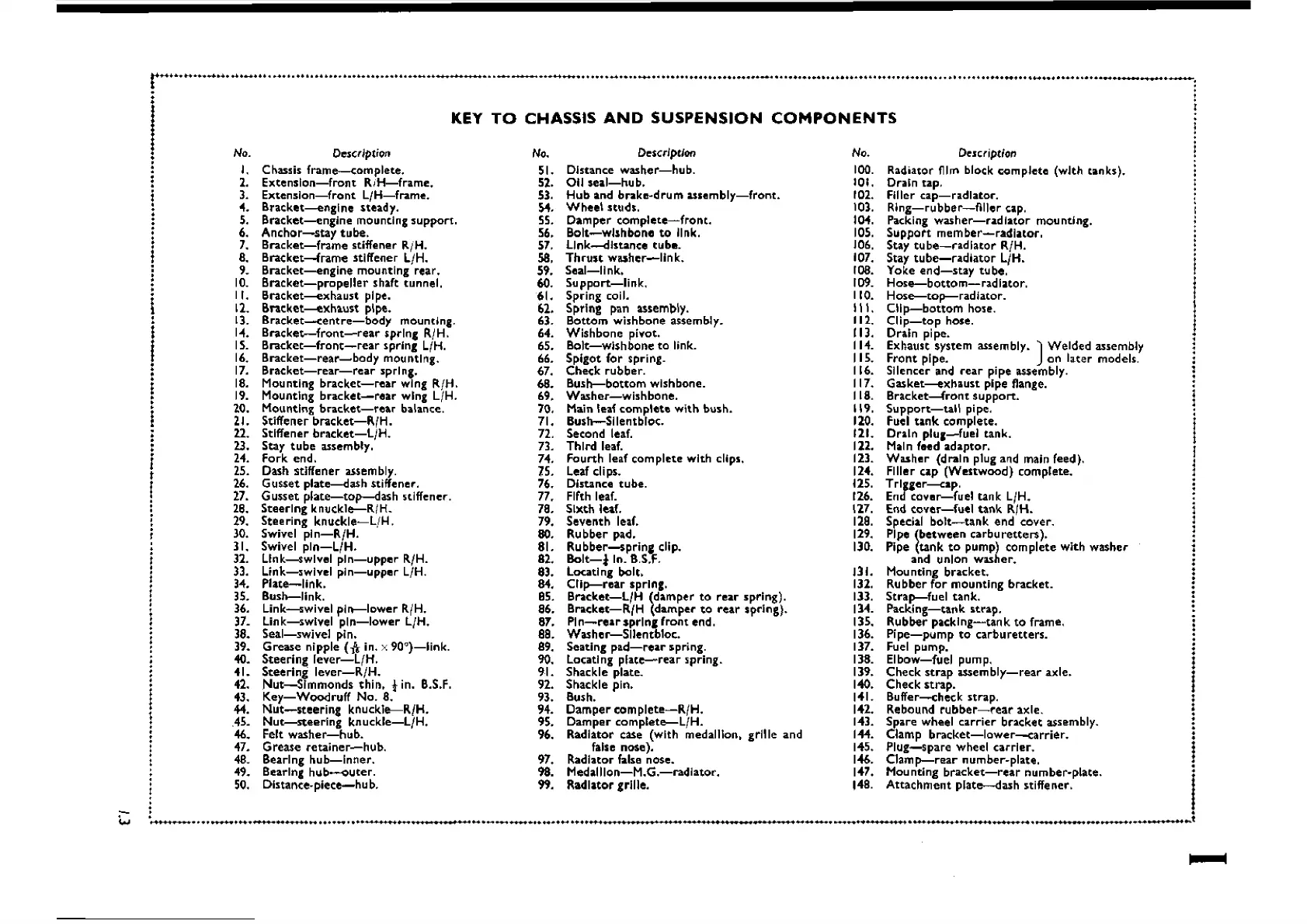

KEY TO CHASSIS AND SUSPENSION COMPONENTS
No. Description No. Description No. Descriptio"
I. Chassis frame-<:omplete. 51. Distance washer-hub. 100. Radiator film block complete (with tanks},
2. Extension-front RiH-frame. 52. Oil seal-hub. 101. Drain tap.
3. Extension-front LIH-frame. 53. Hub and brake-drum assembly-front. 102. Filler cap-radiator.
~. Bracket-englne steady. ~. Wheel $tUGS. 103. Rlng-rubber-flller cap. I
5. Bracket-engine mounting support. 55. Damper complete-front. l~. Packing washer-n.dlator mounting. ,
6. Anchor-stay tube. 56. Bolt-wishbone to lIJ1k. lOS. Support member-radiator, ,
7. Bracket-frame stiffener RiH. 57. llnk-dlstance tube. 106. Stay tube-radiator R/H. :
8. Bracket-frame stiffener ljH. 58. Thru$t washer-Ilnk. 107. Stay tube-radiator liH. "
9. Bracket-englne mounting rear. 59. Seal-link. loa. Yoke end-stay tube.
10. Bracket-propeller shaft tunnel. 60. Suppcrt-c-Ilnk, 109. Hose-bottom-radlator. I
1r. Bracket-exhaust pipe. 61. Spring coil. 110. Hose-top-radiator.
11. Bncket-exhaust pIpe. 61. Spring pan assembly. Ill. Clip-bottom host. I
13. Bracket-eentre-body mounting. 63. Bottom wishbone assembly. 112. CIi p-top hose.
I.... Bracket-front-rear spring R} H. 64. Wishbone pivot. . 113. Drain pipe. :
IS. Brackec-fronc-rear spring l{H. 6S. Bolc-wlshboJle to hnk. II.... Exhaust system assembly. ] Welded assembly :
16. Bracket-rear-body mounn JIg. 66. Spigot for spri ng. 115. Front pipe. on later models. :
17. Bracket-rear-rear sprlJlg. 67. Check rubber. 116. Silencer and rear pipe assembly. :
18. Mounting bracket-rear wing R/H. 68. Bush-bottom wishbone. 117. Gasket-exllaust pipe flange. :
19. Mounting bracket-rear wing L/H. 69. Washer-wishbone. 118. Bracket-front support. I
20. Mounting bracket-rear balance. 70. Main leaf complete wIth bush. I\9. Support-tall pipe. :
21. StiffeJler bracket-R{H. 71. Bush-Sllentbloc. 120. fuel tank complete. I
22. Stiffener bracket-lIH. 72. Second leaf. 121. Drain plue-fuel tank,
23. Stay tube assembly, 73. Third leaf. 122. Main feed adaptor. I
24. fork end. 7.... Fourth leaf com plete with clips. 123. Washer (dral JI plug and main feed). 1
25. Dash stiffener assem bly. 15. leaf ell pl. 124. Filler up (Westwood) complete.
26. Gusset plate--dash stiffener. 76. DlstaJlce tube. 12S. Trlgler-eap. :
27. Gusset plate-top-dash stiffener. 77. Fifth leaf. 126. End covllr-fuel tank liH. •
28. Steering k nuckle-RI H. 78. Sixth leaf. 127. End cover-fuel tank RIH.
29. Steering kJluckle-L,IH. 79. SeveJlch leaf. 128. Special bclt-v-tank end cover.
30. Swivel pln-RfH. 80. Rubber pad. 129. Pipe (betweeJl carburetters).
31. Swivel pln-lIH. 81. Ru bber-sprln, clip. 110. Pipe (tank to pump) com plete with washer
32. llnk--swlvel pin-upper R/H. 82. Bolt-! In. B.S.f. and union washer.
33. link-swlvel pin-upper l/H. 83. locating bolt. Jl L Mounting bracket.
34. Plate-link. 84. Clip-rear spring. 132. Rubber for mounting bracket.
35. Bush-link. 85. Bracket-LIH (damper to rear spring). 133. Strap-fuel tank.
36. Link-swlvel plJl-lower R(H. 86. Bracket-RIH (damper to rear spring). 13~. Packing-tank strap.
37. Link-swlvel pin-lower L/H. 8Y. Pin-rear spring front end. 135. Rubber packing-tank to frame. :
38. Seal-swivel pin. 88. Washer-Sllentbloc. 136. Pipe-pump to carburetters. •
39. Grease nipple (-f,; ln. x 90")-llnk. 89. Seating pad-rear spring. I ]7. Fuel pump. •
~. Steering lever-l{H. 90. locating plate-rear spring. 1]8. Elbow-fuel pump. 1
11. Steering lever-RfH. 91. Shackle plate. 139. Check strap assem bly-rear axle. j
42. Nut-SlmmoJlds thin. tin. 6.S.f. 92. Shackle pin. 140. Check strap.
43. Key-Woodruff No.8. 93. 8ush. 141. Buffer--eheck strap. :
44. Nut--steering knuckle-R{H. 94. Damper complete-R/H. 142. Rebound rubber-rear axle. !
.45. Nut-steerlng knuckle-l/H. 95. Damper complete-lJH. 143. Spare wheel carrier bracket assembly. :
46. Felt washer-hub. 96. Radiator case (with rnedalllon, grille and 144. Clamp bracket-Iower-earrier. :
~7. Grease retainer-hub. false nose). 145. Plug--spare wheel carrier. l:
48. Bearing hub-Inner. 97. Radiator false nose. 146. Clamp-rear number-place. !
49. Bearln. hub-outer. 98. MedallloJl-M.G.-radlacor. 1.7. Mounting bracket-rear number-plate. i
1 50. Distance.plece-hub. en. Radiator grille. 148. Attachment plate-s-dash stiffener. 1
.
