OPERATION
3 USER INTERFACE
There are two different local user interfaces available, either a 5.7” touch screen on
the Display model, or a button with multicolor LED indicator on the transmitter version.
All functionality available through the local user interface is present in the when running
the Michell Application Software. The Optidew offers three interfaces to connect to a
PC or network:
• RS485
• USB
• Ethernet (Optional)
3.1 Main Display
The Optidew features a 5.7” color touch screen display.
Then the instrument is switched on, an ‘initialising’ overlay will be shown while the
menu system loads.
After the menu system has loaded, the Main Screen will show.

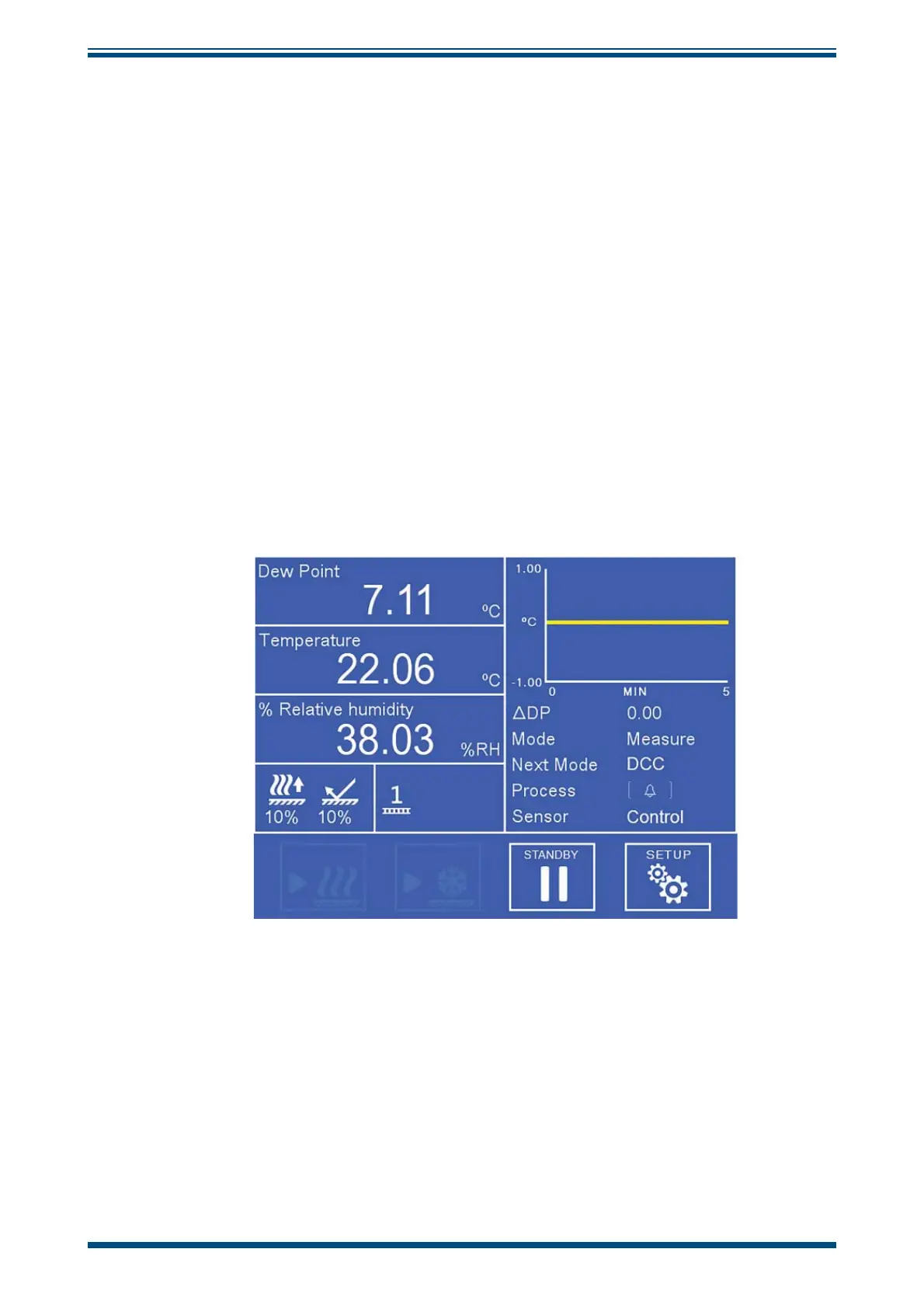

Figure 13
Main screen
