Component Parts and Assembly Hardware

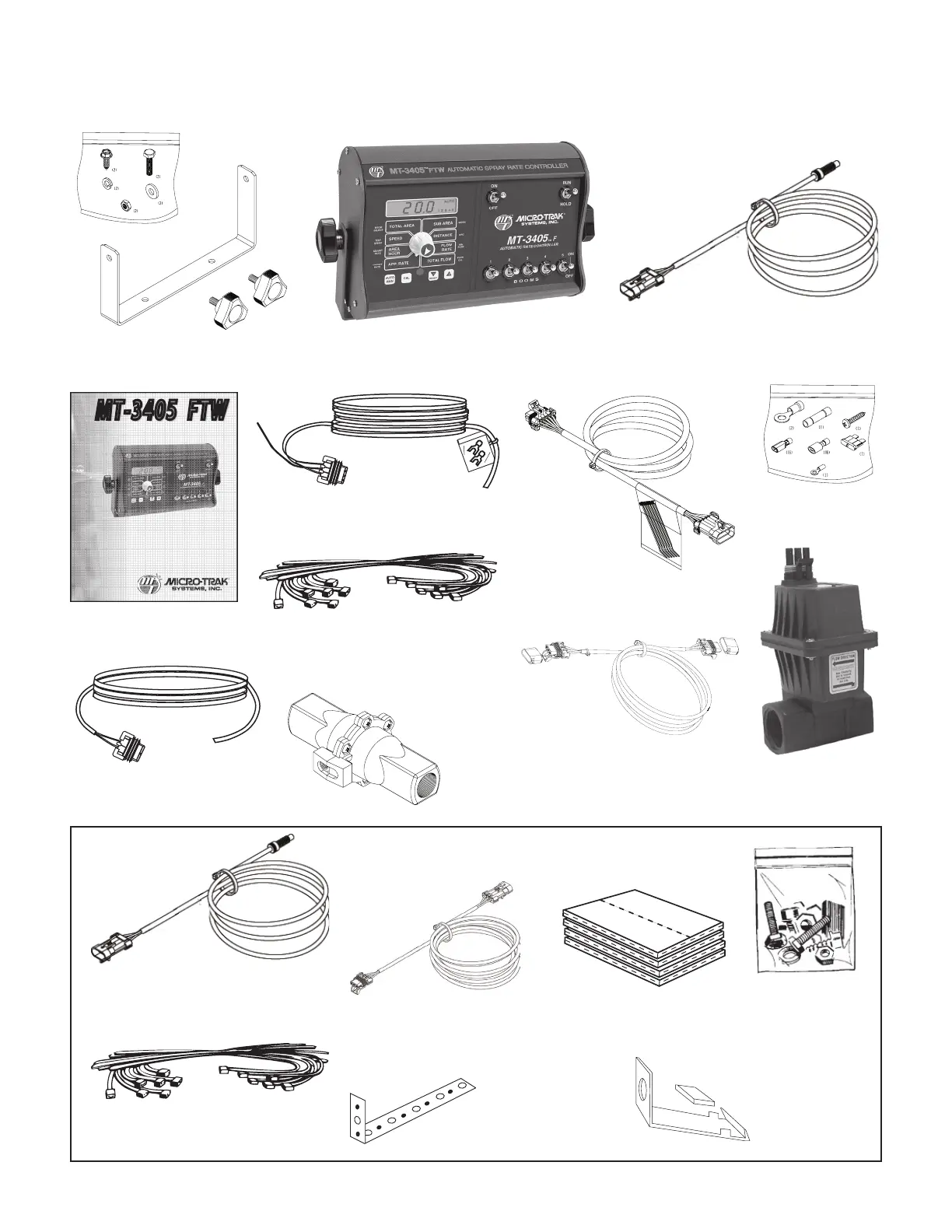

Before beginning installation, check the carton contents for the following items:
Terminal Kit
P/N 13270
Speed Sensor Kit P/N 01531
Including items A-G, below:
C. 15’ 3-Pin Extension Cable
M/P 150 P/N 13207
F. Magnet Clips (6)
P/N 10080
G. Hardware Bag
P/N 13251
D. Speed Sensor
Mounting Bracket
P/N 10013
E. Magnets (6)
P/N 12069
(2 in hardware bag)
MT-3405 FTW Console
P/N 13887
10’ 10-Pin M/P Extension Cable (3)
P/N 13221
5’ 3-Pin W/P Extension Cable
P/N 10450
1” Electric
Servo Valve
P/N 11218
20’ 3-Pin M/P Power Harness
P/N 13092
14” Nylon Cable Ties
P/N 12910
B: 14” Nylon Cable Ties
P/N 12910
5’ Shut-off Cables (5)
P/N 13115
FM750 GFN
Flowmeter
P/N 11501
Console Mount Kit
P/N 13774
5’ Hall-effect Flow Sensor Cable
with threaded sensor
P/N 13096
A: 5’ Hall-effect Flow Sensor Cable
with threaded sensor
P/N 13096
Reference Manual
P/N 13895
REFERENCE MANUAL
MT - 3 4 0 5 FTW
™
LR
AUTOMATIC SPRAY RATE CONTROLLER*
*For sprayers equipped with a single
owmeter and three-way shut-o valves.
C B A
B A
