CARDIAC STIMULATOR
ENGLISH Page 9 of 49

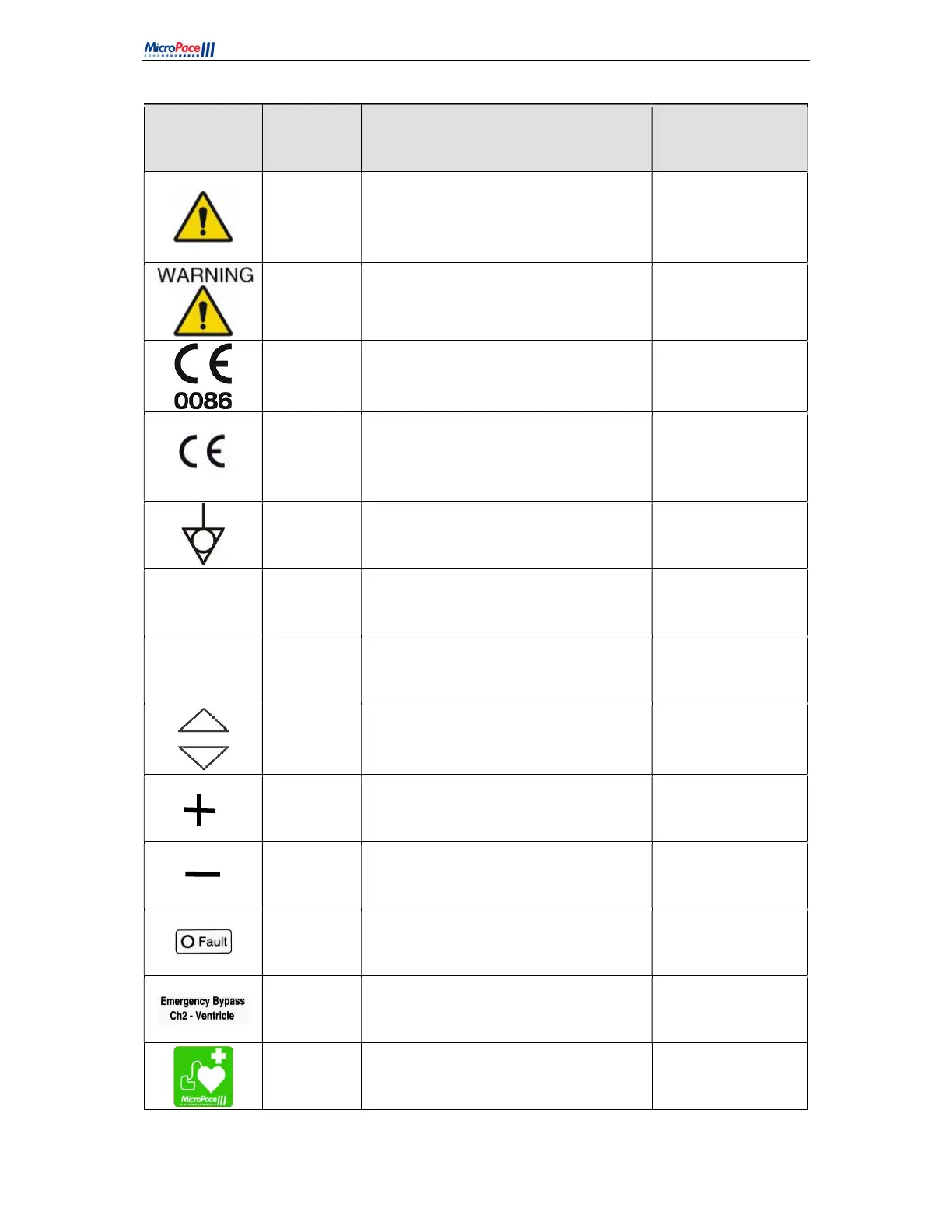

Symbol Name
Meaning Location
Attention
Connect only to Micropace supplied parts.
AUXILIARY PORT
on MP3008.
Warning
Not Suitable for direct connection to RF
Ablation Power > 150W into 300 Ohms.
On MP3086 and
MP3014.
CE Marking
& Notified
Body
Identification
Complies with European Medical Devices
Directive (MDD). On MP3008.
CE Marking
Complies with EMC and Safety Standards
for distribution in Europe.
Accessories.
1 Isolation
Transformer.
2 Low voltage
Transformer.
Equipoten-
tiality
System central grounding terminal.
Isolation
Transformer.
0
Power
OFF
Device is switched OFF; battery is NOT
charging.
POWER ON/OFF
switch of MP3008.
I
Power
ON
Device is switched ON and battery is
charging.
POWER ON/OFF
switch of MP3008.
Increase
/
Decrease
Increase / Decrease adjacent Interval or
Current parameter.
On the front of
MP3008 next to
Interval Current
displays.
Positive
Output
Positive stimulus output. Defibrillator CF
Protected part.
On MP3014 and
MP3086.
Negative
Output
Negative stimulus output, Defibrillator CF
Protected part.
On MP3014 and
MP3086.
FAULT
Fault Detected in Stimulus Multiplexer
Box – use Emergency Bypass.
On MP3086.
Emergen-cy
Bypass
Emergency Bypass output socket - pace
Ch2 (Ventric), or use Emergency Pacing
on the Stimulator.
On MP3086.
Backup
Stimulator
Here
Sign indicating location of Stimulator SGU
MP3008 for backup pacing.
Next to where SGU
MP3008 is installed.
