CARDIAC STIMULATOR
ENGLISH Page 13 of 49
5
5
EPS320 FAMILY OF CARDIAC STIMULATORS

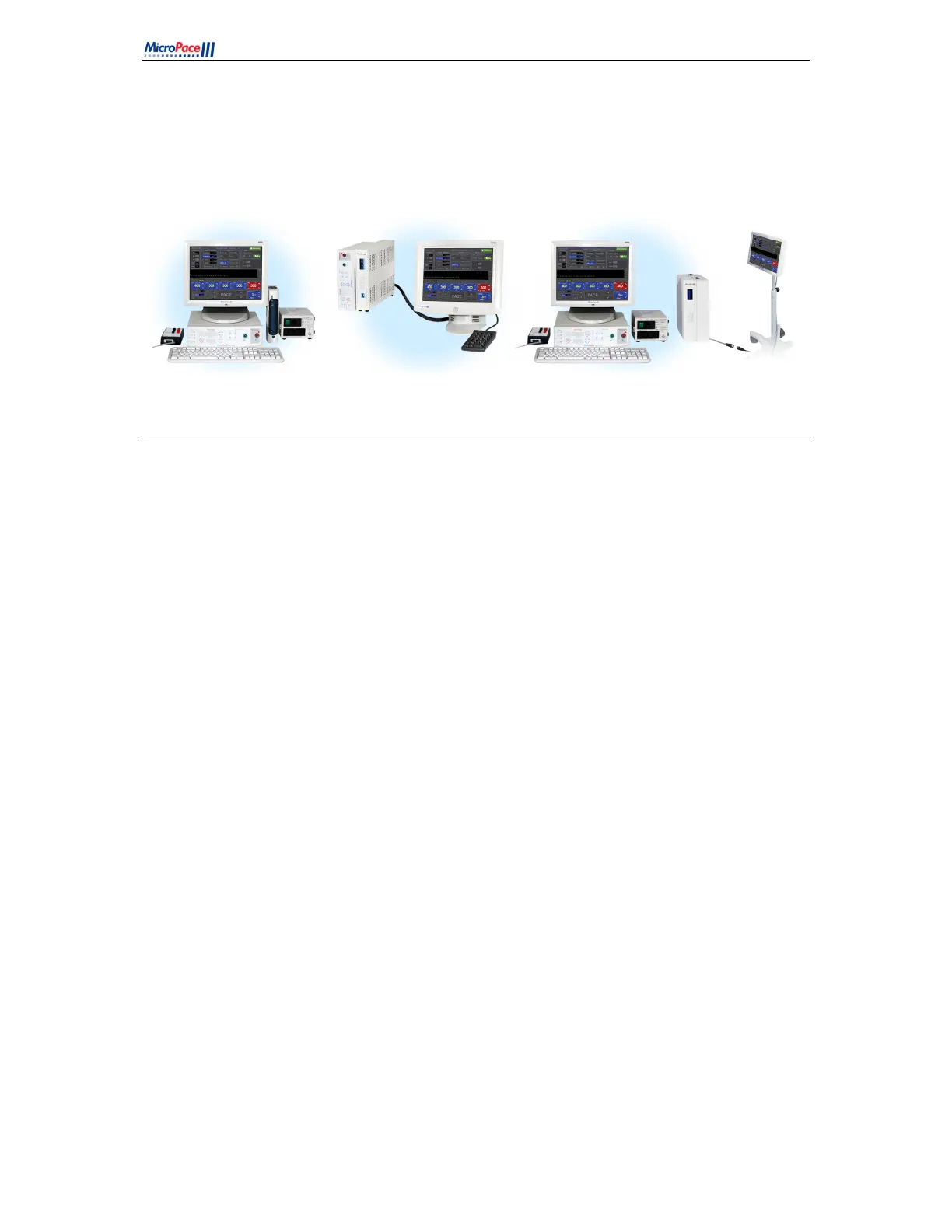

Figure 1: EPS320B/T, StimCor™ and StimLab™
5.1 Description of Stimulator Family
The EPS320 Cardiac Stimulator is a diagnostic external programmable cardiac stimulator.
The Cardiac Stimulator consists of a self-contained two channel microcontroller-based Stimulus
Generator Unit, MP3008,capable of generating simple regular pacing pulses by the controls on its
front panel. During normal use, however, it is externally programmable by using a computer to
generate complex pacing patterns.
The two stimulation channels are independent isolated current pulse generators capable of generating
0.5 to 10ms pulses at 0.1 to 25mA with a maximum output voltage of 27V. The stimulus output may be
used to stimulate the human heart during electrophysiological studies via any third party legally
marketed transvenous intracardiac pacing catheters. These may be connected directly or via any third
party legally marketed EP recording equipment intended to switch pacing pulses of above description
to selected specific catheters and electrodes.
