USER INSTRUCTION MANUAL
Page 36 of 49 ENGLISH

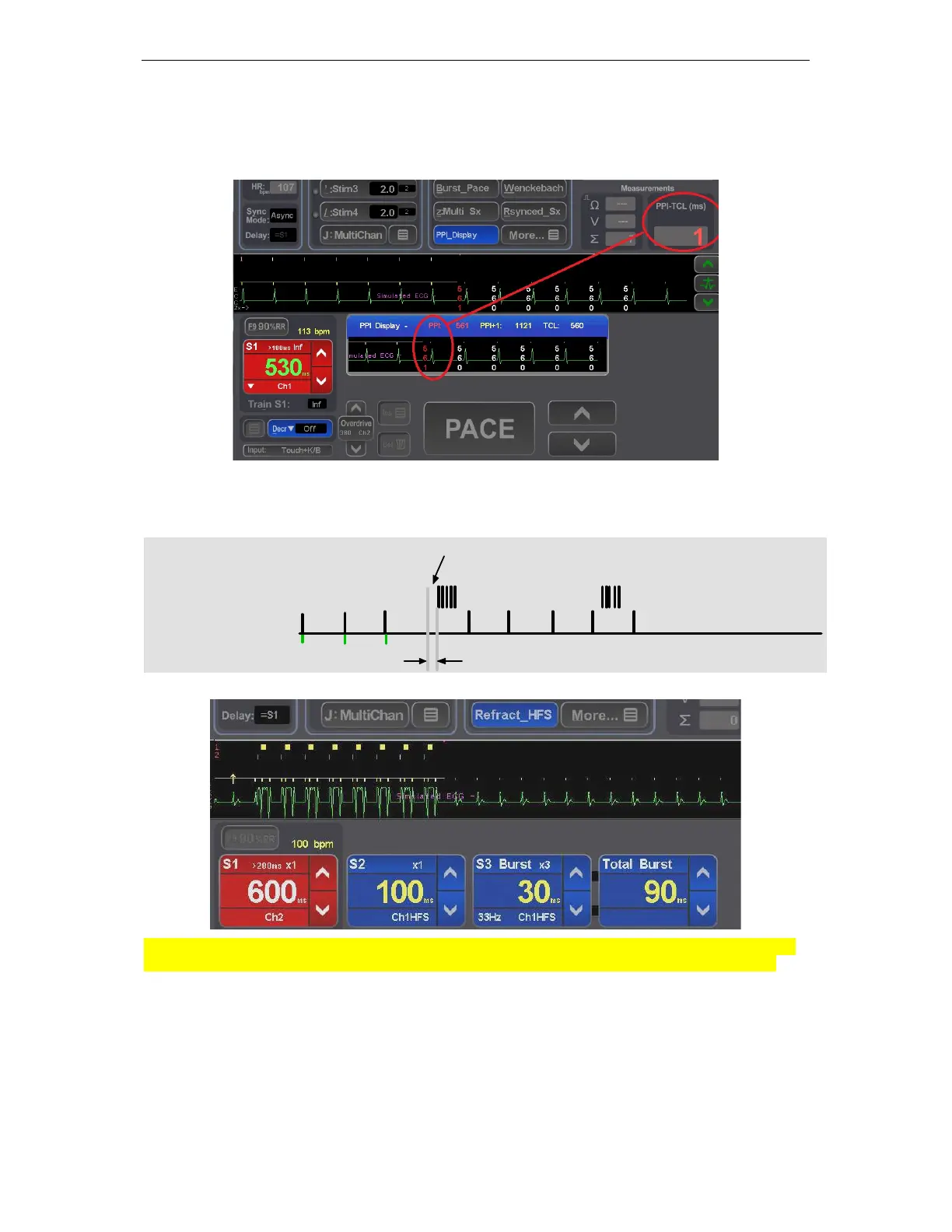

PPI Protocol. This protocol displays the Post Pacing Interval during entrainment studies of
tachyarrhythmias.
Refractory High Frequency Stimulation. Regular S1 into Ch2 with HF burst into Ch1. S2 Delay
from S1 to S3. Minimum S3 burst of 30mS.
S3 >=30 mS
Refractory HFS
('m,f')
S2 Delay
S1 S1 S1 S1 S1
S1 S1 S1
S3
S1
In the high frequency burst protocol, you may specify a train with a frequency and either as a number
of stimuli or a duration of pacing. For example, (S1=40ms, train of 3) or (S1=40ms train for 80ms).
