Technical Information
29
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
1 Technical Data
n/a
2 Function
2.1 Water Path Control System
The Water Path Control System uses a single Cold Water Valve
that opens during all needs for cold-water. The incoming cold water
supply is routed to the Dispenser Assembly where a distributor tube
(driven by a geared synchronous motor) sends the water to the
appropriate dispenser. The position of the distributor tube is
monitored by the Electronic via several contacts within the Water
Path Control System Unit.

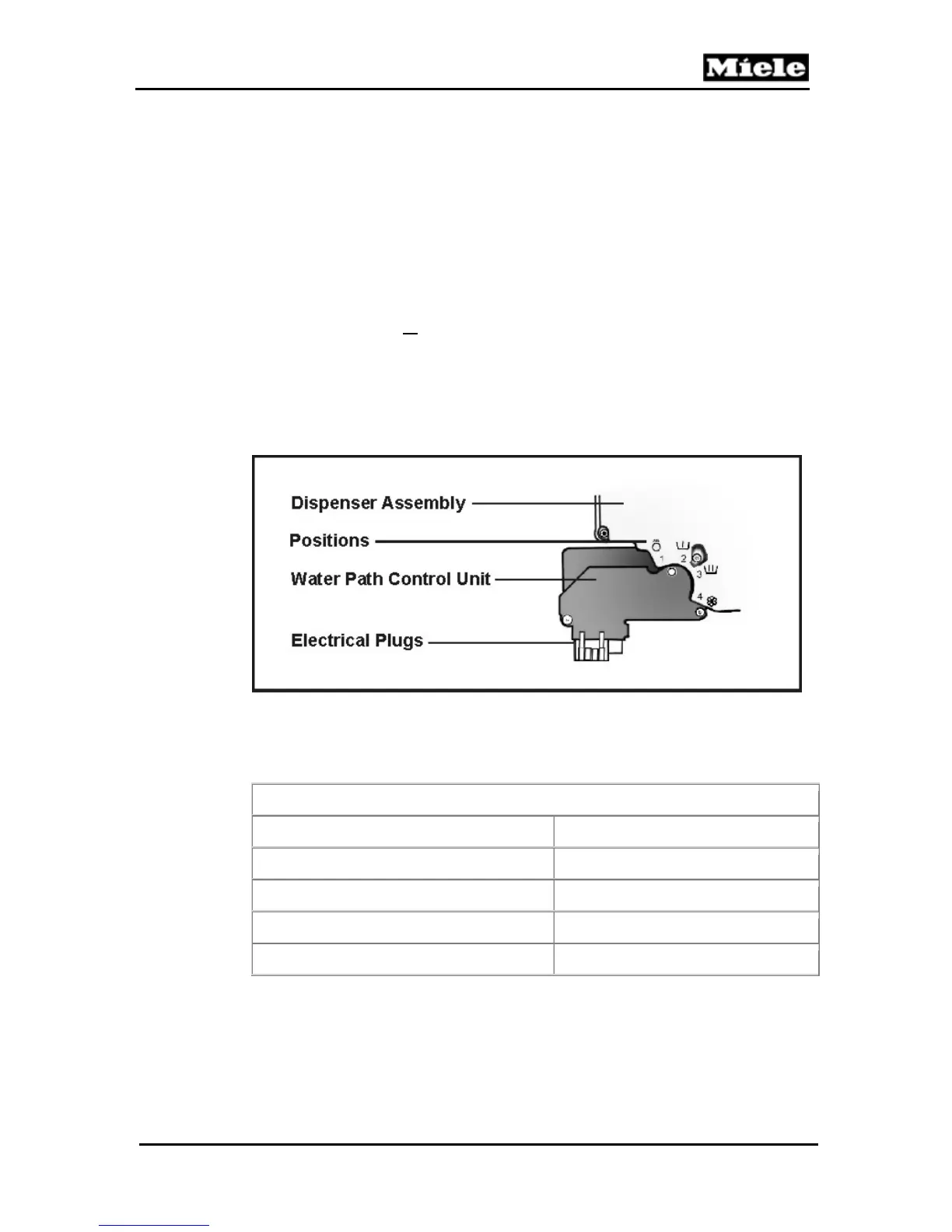

Figure 040-1: Overview of Water Path Control System
Table 040-1: Water path control system -
Water Path Control System
POSITION WATER PATH FLOW
1 Door glass
2 Pre-wash compartment
3 Main wash compartment
4 Starch / Fabric Softener
