W1113, W1119, W1203, W1213 & W1215 Clothes Washers
3 Fault Repair
n/a
4 Service
4.1 Main Motor - Removal
1. Remove the Front Panel (010 4.3).
2. Refer to Figure 060-2.
3. Disconnect the electrical connections (4).
4. Release the wiring harness retainer from the motor cover.
5. Remove the retaining bolts (1, 2 and 6).
6. Remove the drive belt from the motor pulley.
7. Remove the motor toward the front.
4.2 Motor Module - Removal
1. Remove the Front Panel (010 4.3)
2. Refer to Figure 060-2.
3. Disconnect the electrical connections (4).
4. Release the wiring harness retainer from the motor cover.
5. Unscrew the motor cover and remove it.
6. Unscrew the module fixing screws (5), and remove the module.

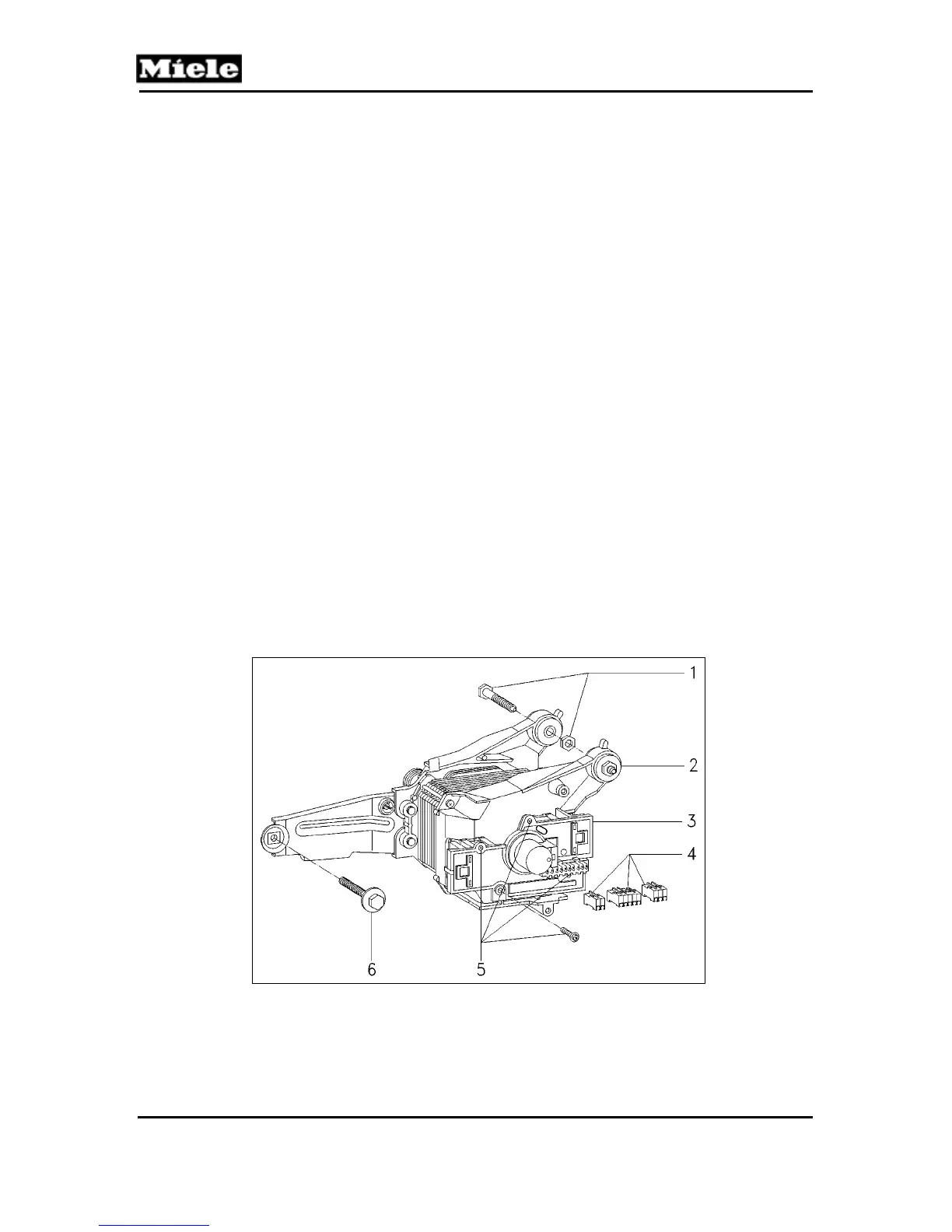

Figure 060-2: Main motor assembly
