W1113, W1119, W1203, W1213 & W1215 Clothes Washers
4 Service
4.1 Power Electronic - Removal

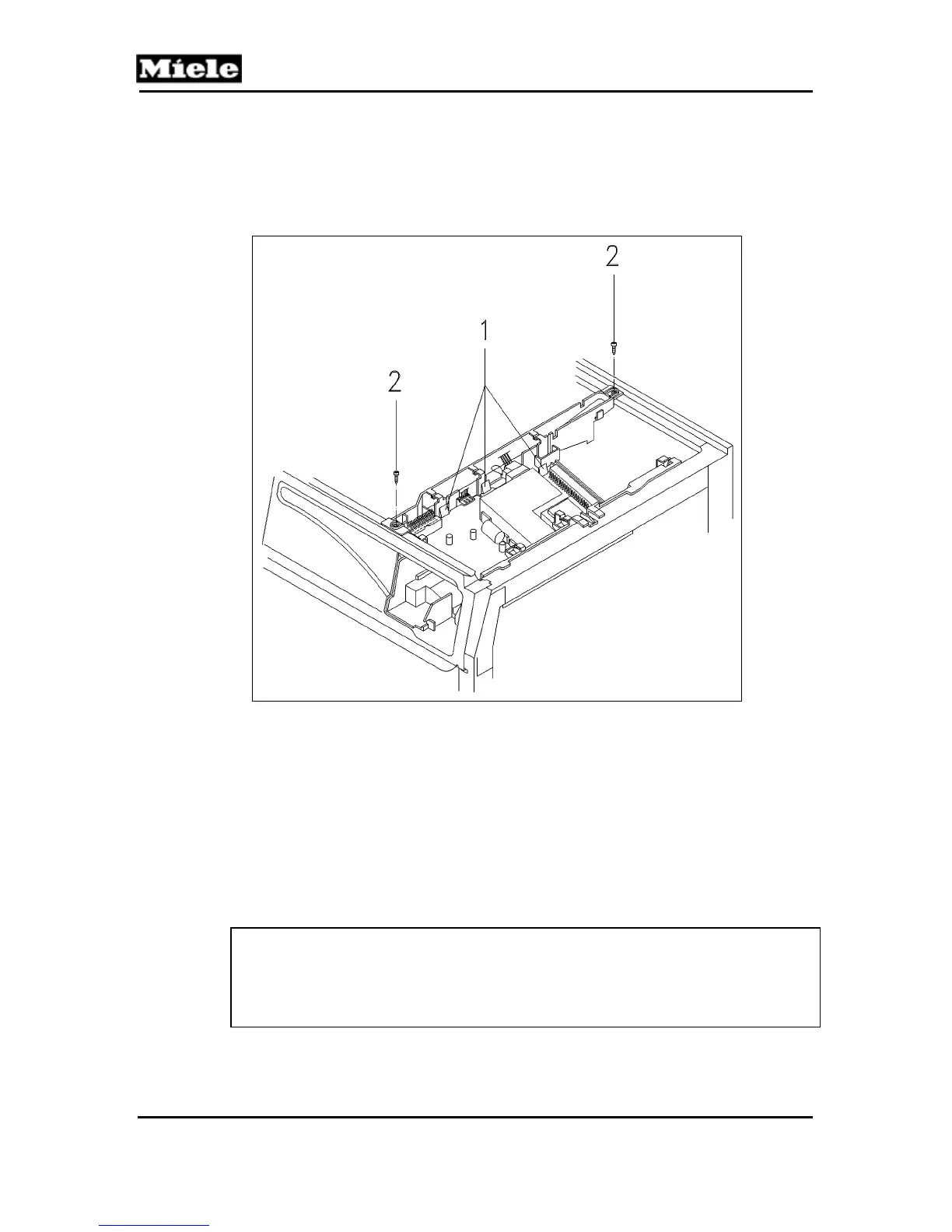

Figure 09-1: Power Electronic - removal
1. Ensure the power is disconnected from the appliance.
2. Remove the Lid (010 4.1)
3. Refer to Figure 090-1.
4. Disconnect all plugs from the power module.
5. Press back the three retaining clips (1), and remove the Power
Electronic upwards.
Note
If the bracket is being removed, the two retaining screws (2), must
be removed first.
