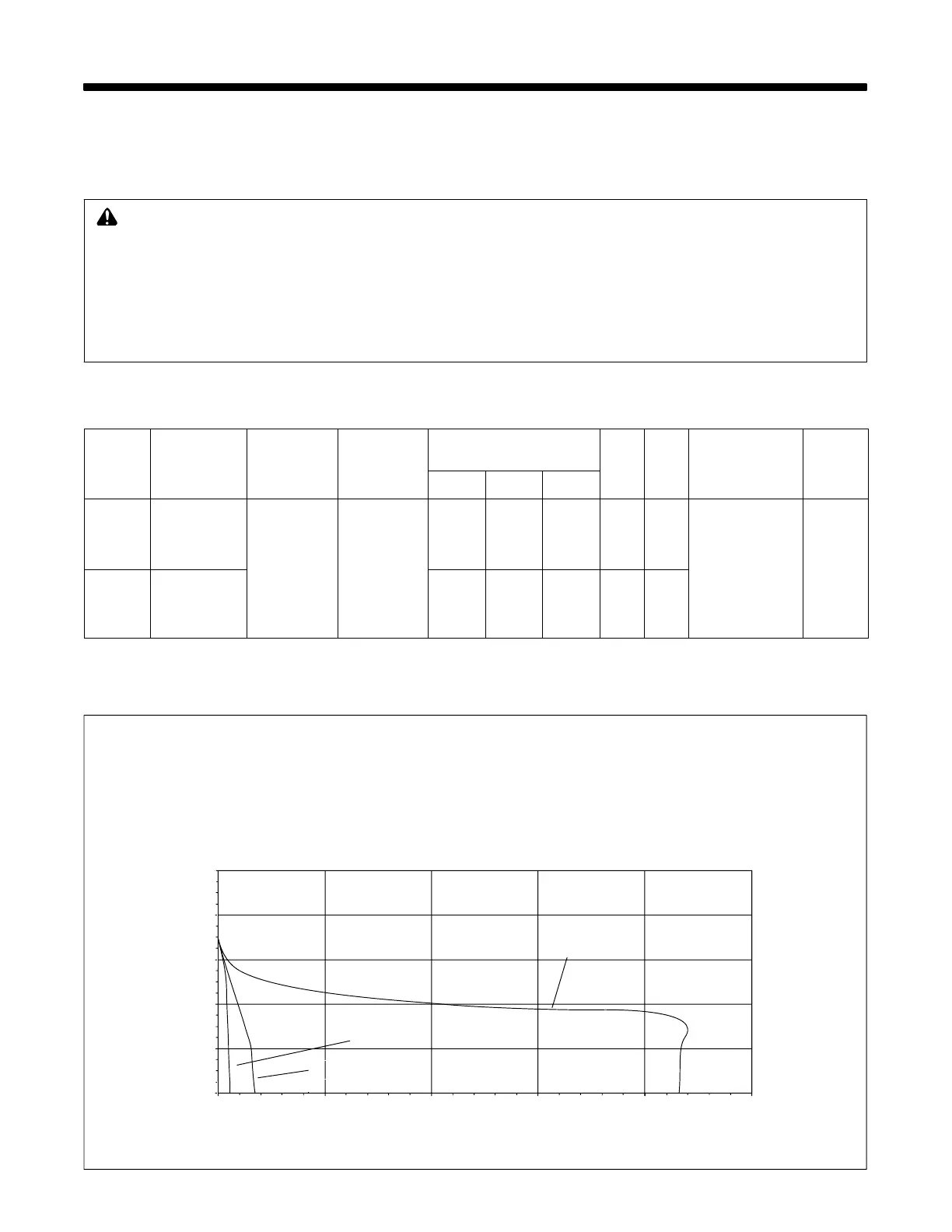

OM-245 849 Page 7
SECTION 3 − SPECIFICATIONS
3-1. Important Information Regarding CE Products (Sold Within The EU)
! This equipment shall not be used by the general public as the EMF limits for the general public might be exceeded during welding.
This equipment is built in accordance with EN 60974−1 and is intended to be used only in an occupational environment (where the general public
access is prohibited or regulated in such a way as to be similar to occupational use) by an expert or an instructed person.
Wire feeders and ancillary equipment (such as torches, liquid cooling systems and arc striking and stabilizing devices) as part of the welding
circuit may not be a major contributor to the EMF. See the Owner’s Manuals for all components of the welding circuit for additional EMF exposure
information.
S The EMF assessment on this equipment was conducted at 0.5 meter.
S At a distance of 1 meter the EMF exposure values were less than 20% of the permissible values.
3-2. Specifications
Welding
Process
Rated Output
Welding
Amperage
Range
Max.
Open-Circui
t
Voltage (U0)
Amperes Input At Rated
Output, 50/60Hz
KVA KW Dimensions Weight
380 400 440
Stick
200 A @ 28
VDC,
40% Duty
Cycle
5 − 200 85 VDC
13.5 12.8 11.5 8.86 6.51
Length: 470 mm
(18-1/2 in.)
Width: 192 mm
(7-9/16 in.)
Height: 333 mm
(13-3/8 in.)
13 Kg
(28.6 lb)
TIG
200 A @ 18
VDC,
40% Duty
Cycle
8.7 8.3 7.5 5.73 4.2
3-3. Volt-Ampere Curves
Volt-ampere curves show minimum
and maximum voltage and amper-
age output capabilities of welding
power source. Curves of other set-
tings fall between curves shown.
230 VAC Input
Amperes
Volts
TIG/Stick Max
Stick Min
TIG Min
100
80
60
40
20
0
0 50 100 150 200 250
