OM-245 849 Page 25
SECTION 11 − STICK WELDING (SMAW) GUIDELINES

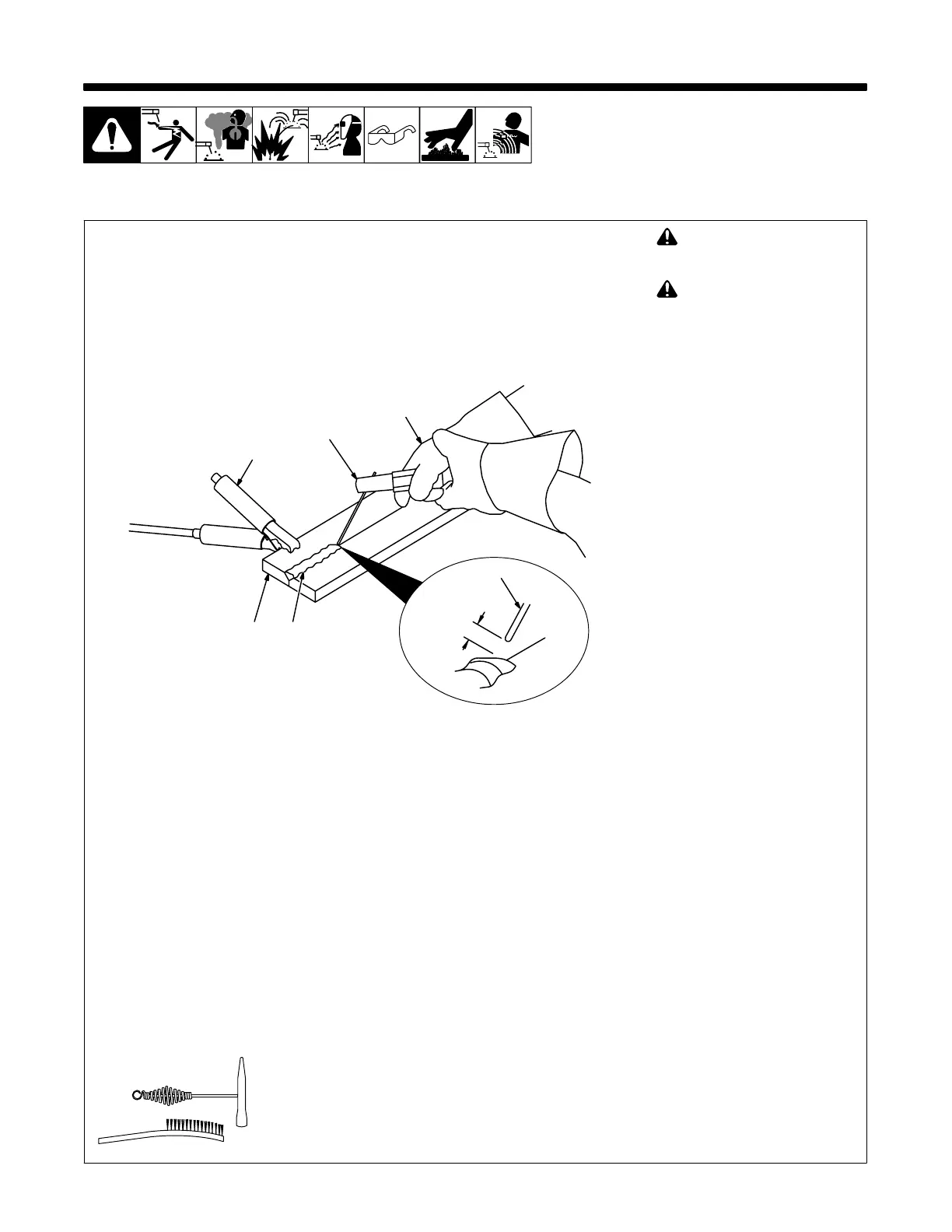

11-1. Stick Welding Procedure
stick 2007−04 − ST-151 593
! Weld current starts when
electrode touches work-
piece.
! Weld current can damage
electronic parts in vehicles.
Disconnect both battery
cables before welding on a
vehicle. Place work clamp
as close to the weld as
possible.
1 Workpiece
Make sure workpiece is clean be-
fore welding.
2 Work Clamp
3 Electrode
A small diameter electrode re-
quires less current than a large
one. Follow electrode manufactur-
er’s instructions when setting weld
amperage (see Section 11-2).
4 Insulated Electrode Holder
5 Electrode Holder Position
6 Arc Length
Arc length is the distance from the
electrode to the workpiece. A
short arc with correct amperage
will give a sharp, crackling sound.
7 Slag
Use a chipping hammer and wire
brush to remove slag. Remove
slag and check weld bead before
making another weld pass.
Tools Needed:
1
4
3
5
2
7
6
To Next Page
