OM-245 849 Page 24

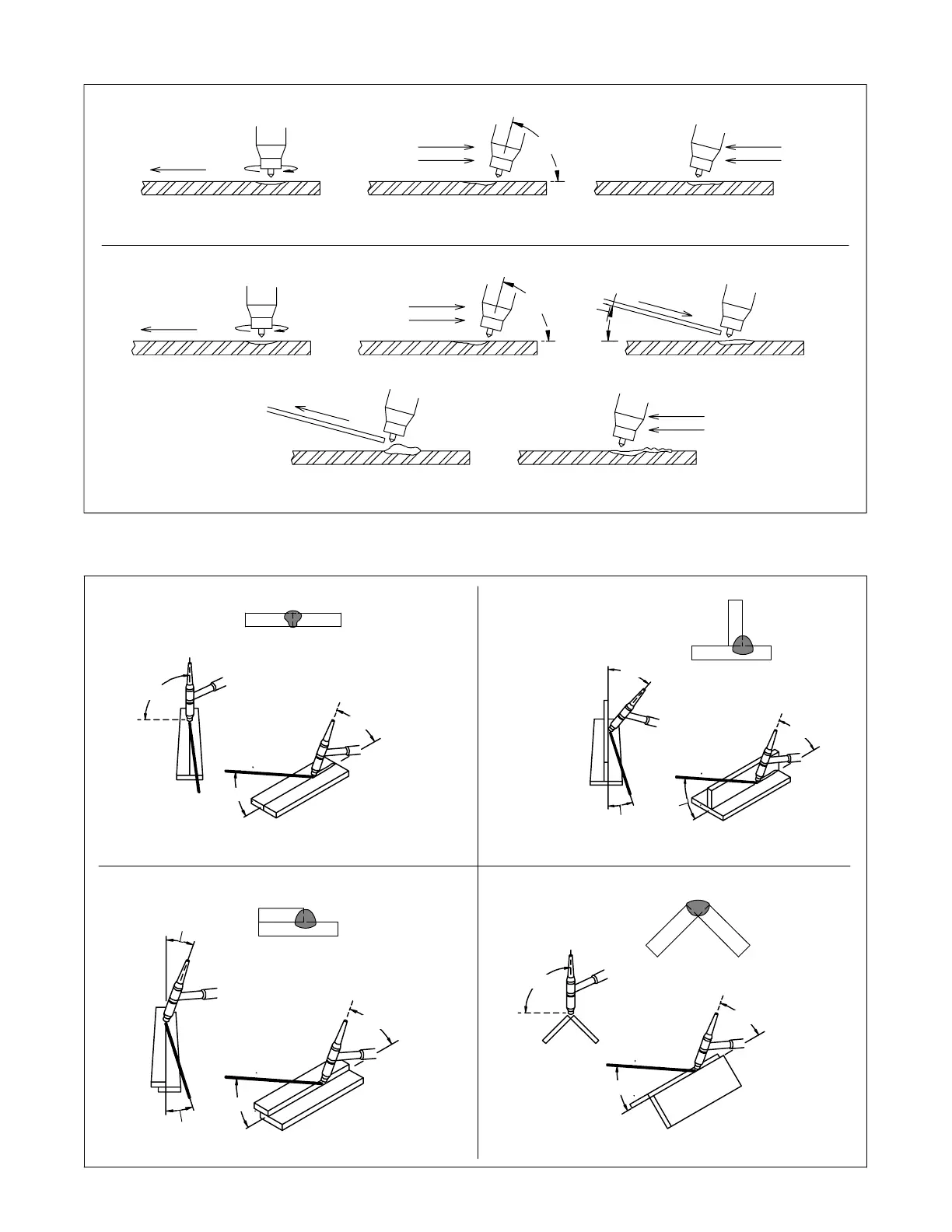

10-2. Torch Movement During Welding
ST-162 002-B
Tungsten Without Filler Rod
Tungsten With Filler Rod
Form pool Tilt torch Move torch to front
of pool. Repeat process.
75°
75°
Welding direction
Form pool Tilt torch Add filler metal
Move torch to front
of pool. Repeat process.
Remove rod
Welding direction
15°
10-3. Positioning Torch Tungsten For Various Weld Joints
ST-162 003 / S-0792
75°
70°
90°
20°
20°
10°
15°
75°
20-40°
30°
15°
75°
90°
15°
Butt Weld And Stringer Bead
“T” Joint
Lap Joint
Corner Joint
To Next Page
