OM-245 849 Page 28

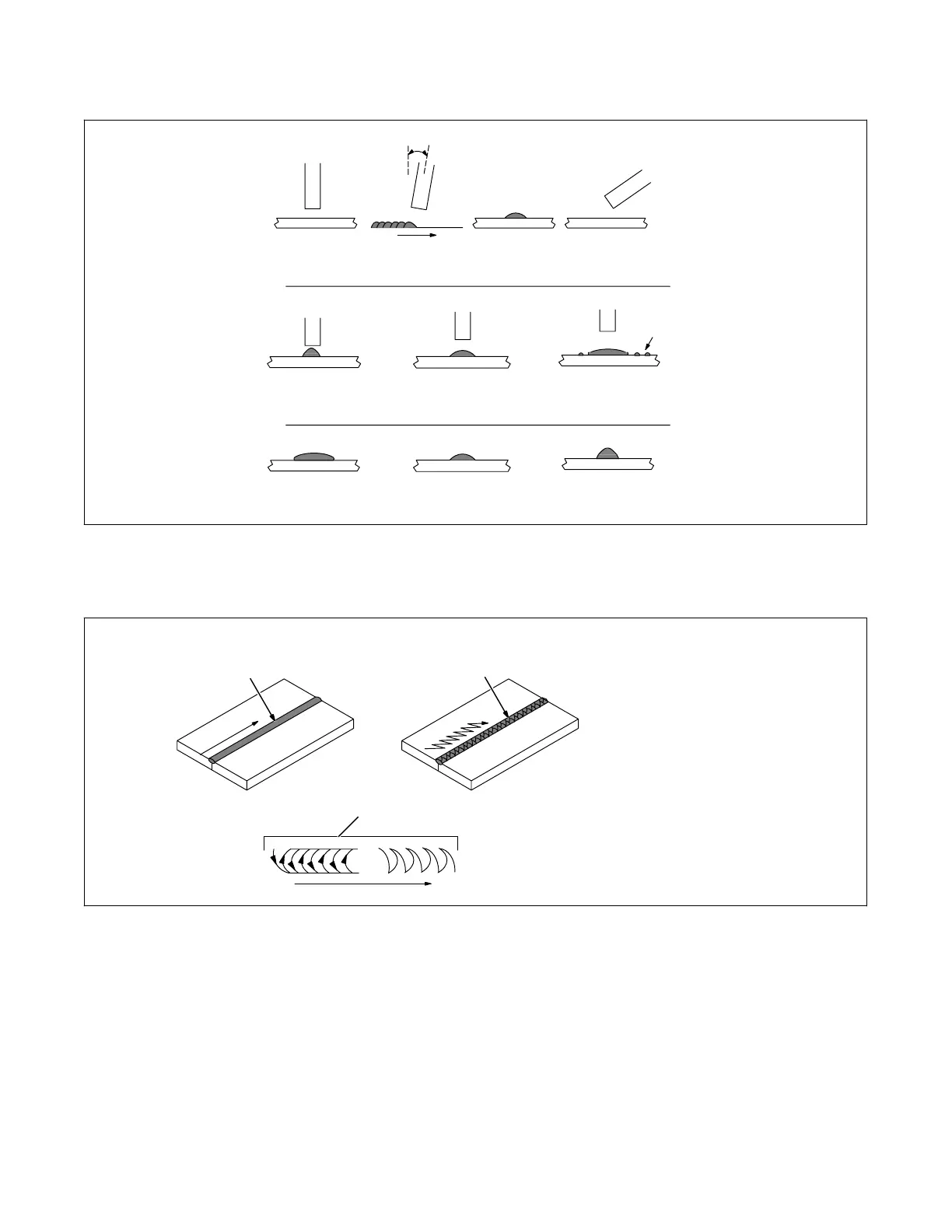

11-8. Conditions That Affect Weld Bead Shape
.
Weld bead shape is affected by electrode angle, arc length, travel speed, and thickness of base metal.
S-0061
ELECTRODE ANGLE
ARC LENGTH
TRAVEL SPEED
Slow
Normal Fast
10° - 30°
Drag
Too Short
Normal Too Long
Spatter
Angle Too Small
Angle Too Large
Correct Angle
11-9. Electrode Movement During Welding
. Normally, a single stringer bead is satisfactory for most narrow groove weld joints; however, for wide groove weld joints or bridging across
gaps, a weave bead or multiple stringer beads work better.
S-0054-A
1 Stringer Bead − Steady
Movement Along Seam
2 Weave Bead − Side to Side
Movement Along Seam
3 Weave Patterns
Use weave patterns to cover a
wide area in one pass of the elec-
trode. Do not let weave width ex-
ceed 2-1/2 times diameter of
electrode.
1
2
3
To Next Page
