Millipore Milli-Q Integral 3 - Details of the Main Display; Right

10
Cabinet, Continued

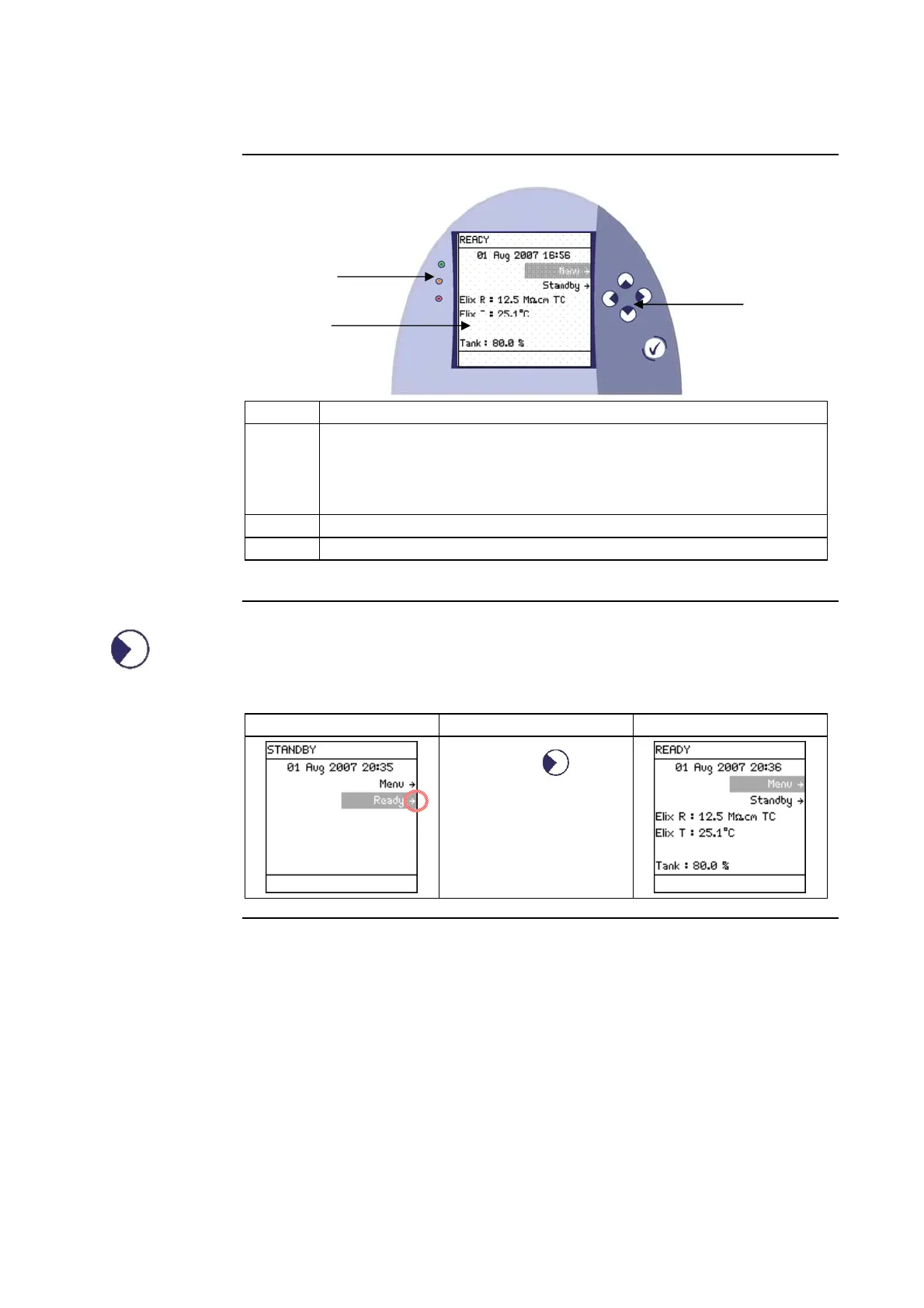

Details of the
Main Display
Item Description
1 LEDs
• Green = No Alerts or Alarms
• Yellow = Alert
• Red = Alarm
2 Main LCD
3 Main Keypad
Right
• The use of the Right Keypad button is shown below.
• In this example, the system is changed from STANDBY Mode to READY
Mode.
Diagram 1 Action Diagram 2
Press
.
Continued on next page
1
3
2
