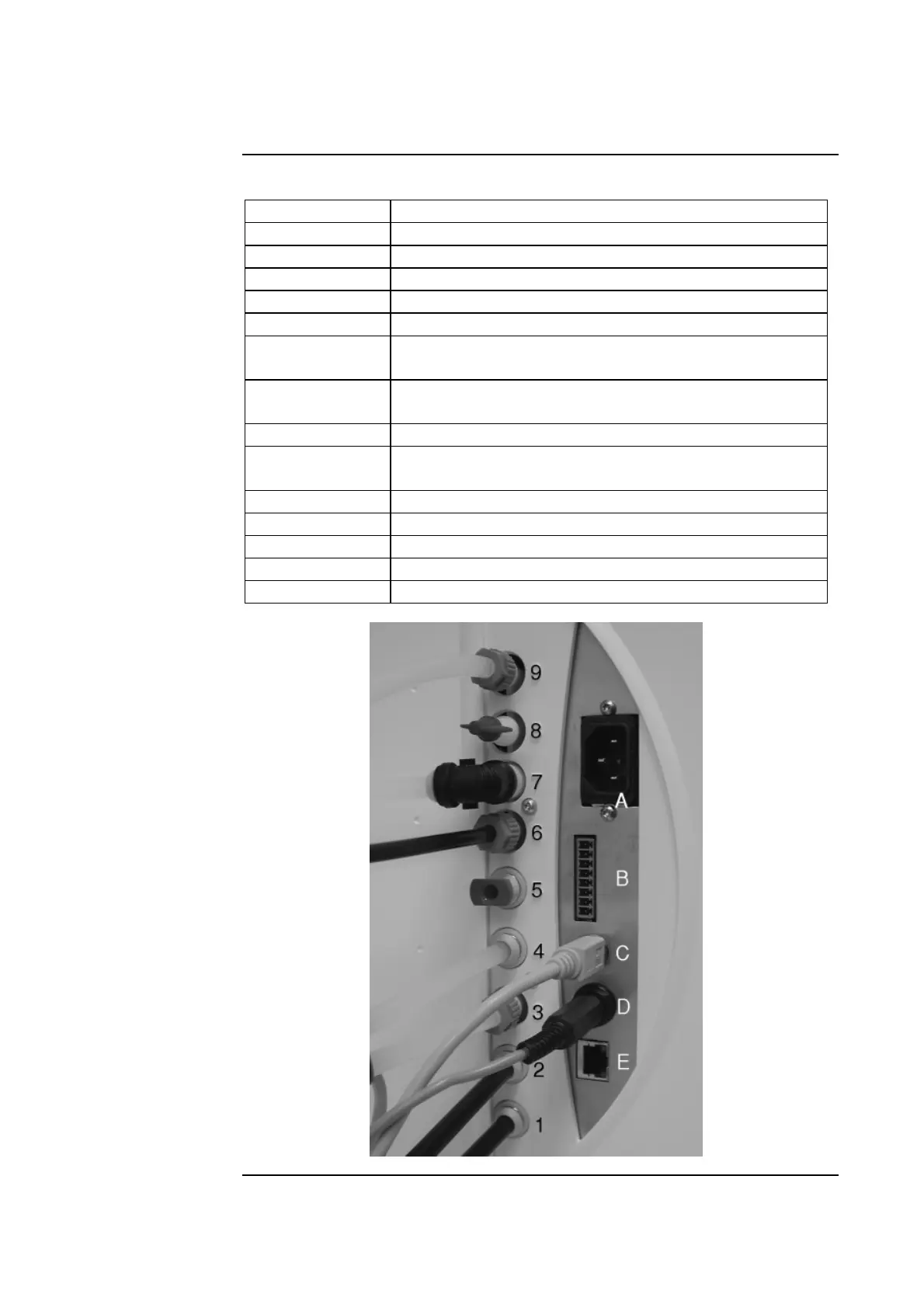

Main Cabinet tubings, cables and power cord
Summary
Item Description
1 RO Reject Water tubing goes to a drain.
2 Feedwater supply tubing to Milli-Q Integral system.
3 Tubing to Q-POD Unit. Use the RC-Link tubing.
4 Tubing to Q-POD Unit. Use the RC-Link tubing.
5
Water to E-POD Unit (accessory).
6 EDI Module waste water tubing connected here goes to
a drain.
7 Tubing connected here comes from the bottom of the
Reservoir. See the next section.
8
Water to E-POD Unit (accessory).
9 Tubing connected here goes to the bottom of the
Reservoir. See the next section.
A Power cord connected here.
B Accessories cable connected here.
C PS/2 cable connected here.
D Level Sensor from Reservoir connected here.
E Ethernet cable connected here.
Continued on next page
