Cabinet, Continued

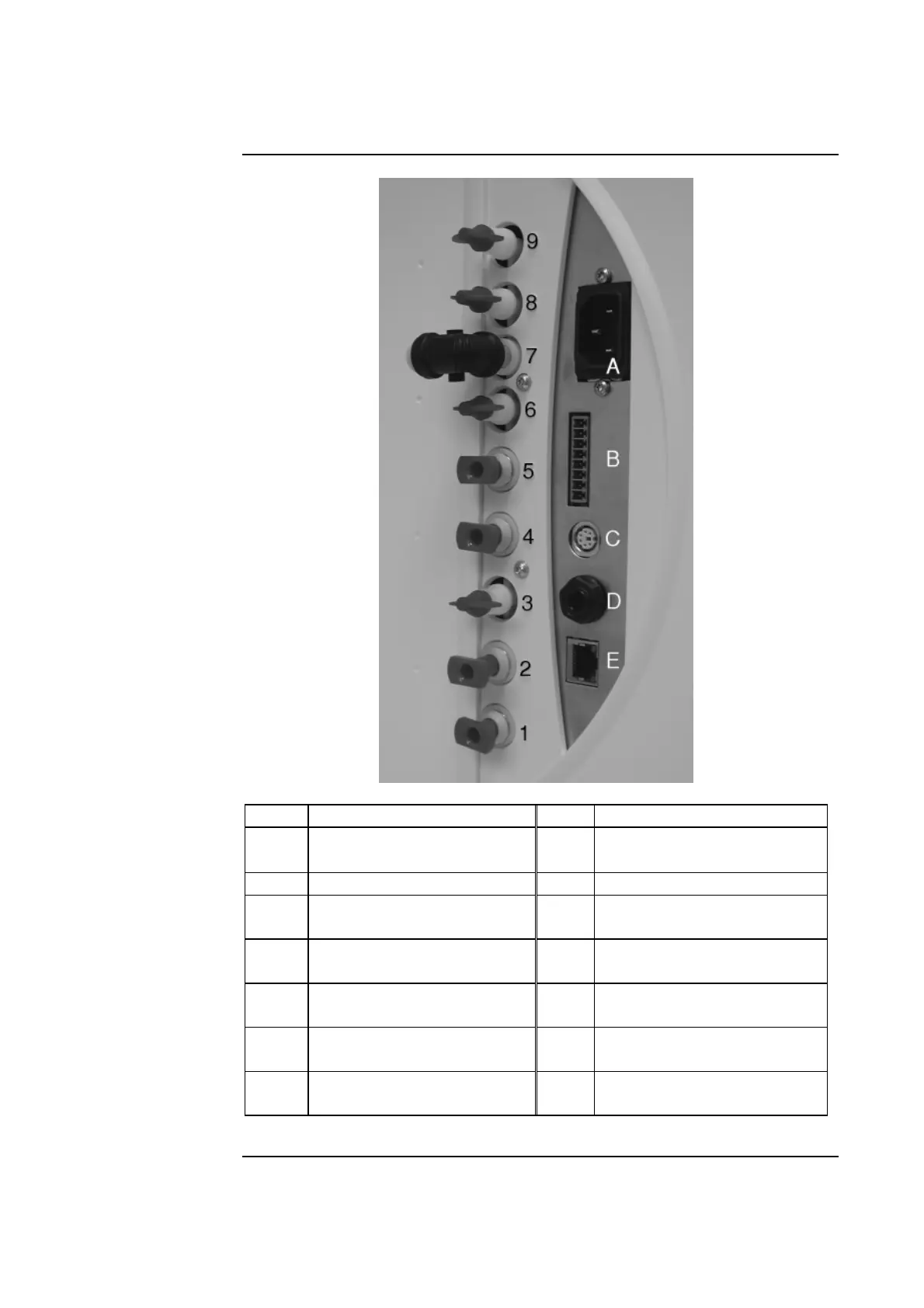

Ports and
cables
Item Description Item Description
1 RO Reject Port 8
E-POD™ Unit (Accessory)
Port
2 Feedwater Port 9 Reservoir Port
3 Port for RC-Link to Q-POD
Unit
A Power Entry connection
(100 – 240 V)
4 Port for RC-Link to Q-POD
Unit
B Accessories connection
(maximum 24 VDC)
5 E-POD Unit (Accessory)
Port
C PS/2 cable connection
(maximum 5 VDC)
6 EDI Waste Port D Level Sensor
(maximum 5 VDC)
7 Reservoir Port E Ethernet connection
(maximum 5 VDC)
