6 Select the [DATA DUMP].
7 Execute the [DATA DUMP].

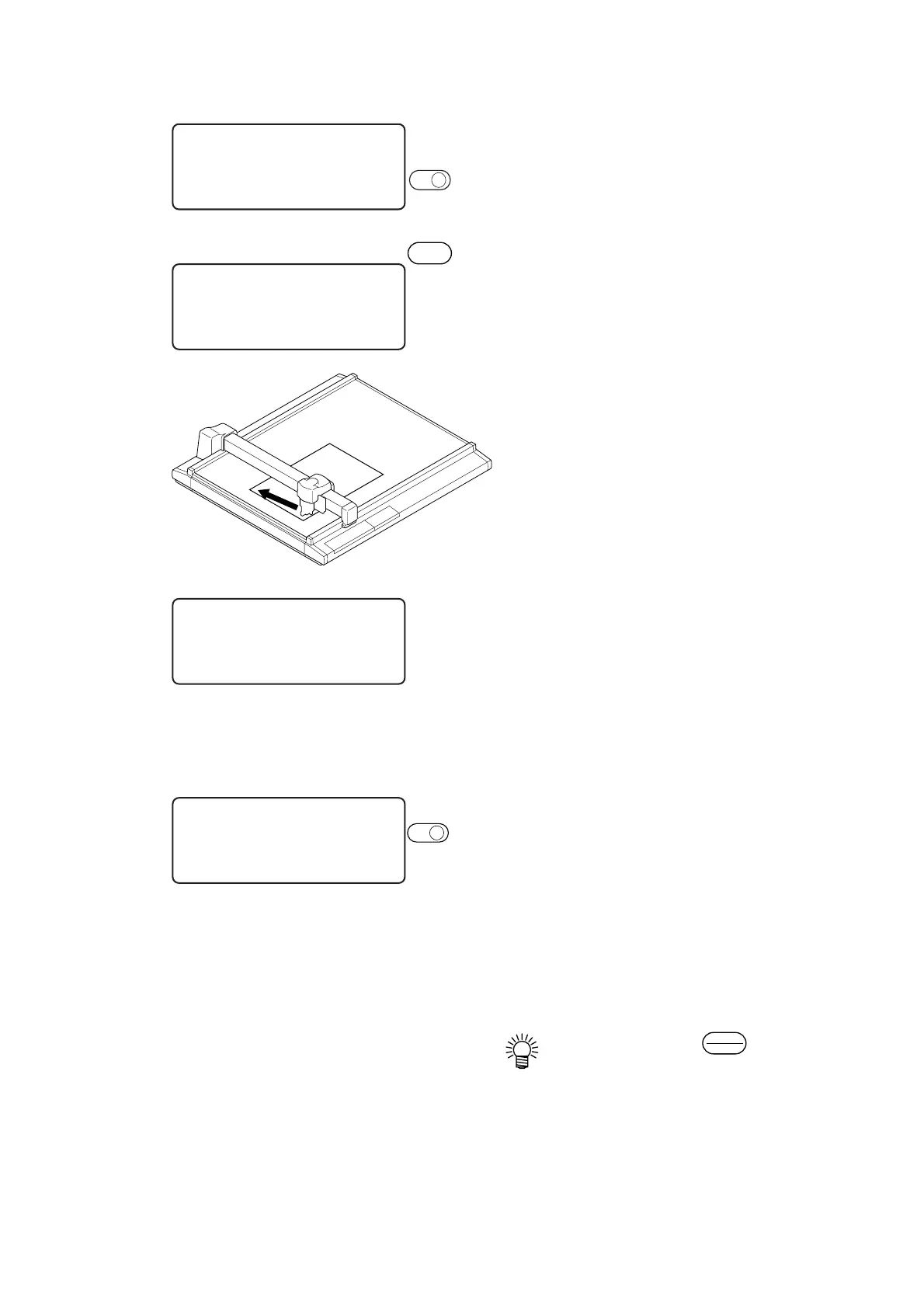

The tool travels to the upper left of the
paper.
8 Check the position of the paper.
Check to be sure that the tip of the pen
rests on the upper left of the paper.
If the tip of the pen is positioned any
position other than the upper left of the
paper, align the upper left of the paper to
the tip of the pen.
9 Execute the [DATA DUMP].
The machine plots communication
conditions and stops.
10 Transmit data form the computer to
the device.
The device plots data transmitted from
the computer with the ASCII code.
• To abort, press the
REMOTE
LOCAL
key to
temporarily interrupt the opera-
tion, then execute the data clear
function.
< SELF TEST > 1 / 5
PATTEN CUT 1 ———>
PATTEN CUT 2 ———>
DATA DUMP
< PATTN CUT 1 > 1 / 1
END KEY to START
CE KEY to CANCEL
< DATA DUMP > 1 / 1
A3 LOCAL CONFIR — >
∗UPPER LEFT SET
∗MARGIN 10 ∗ 10 mm
< DATA DUMP > 1 / 1
A3 LOCAL CONFIR — >
∗UPPER LEFT SET
∗MARGIN 10 ∗ 10 mm
F3
+
F1
+
END
