— 2.23 —

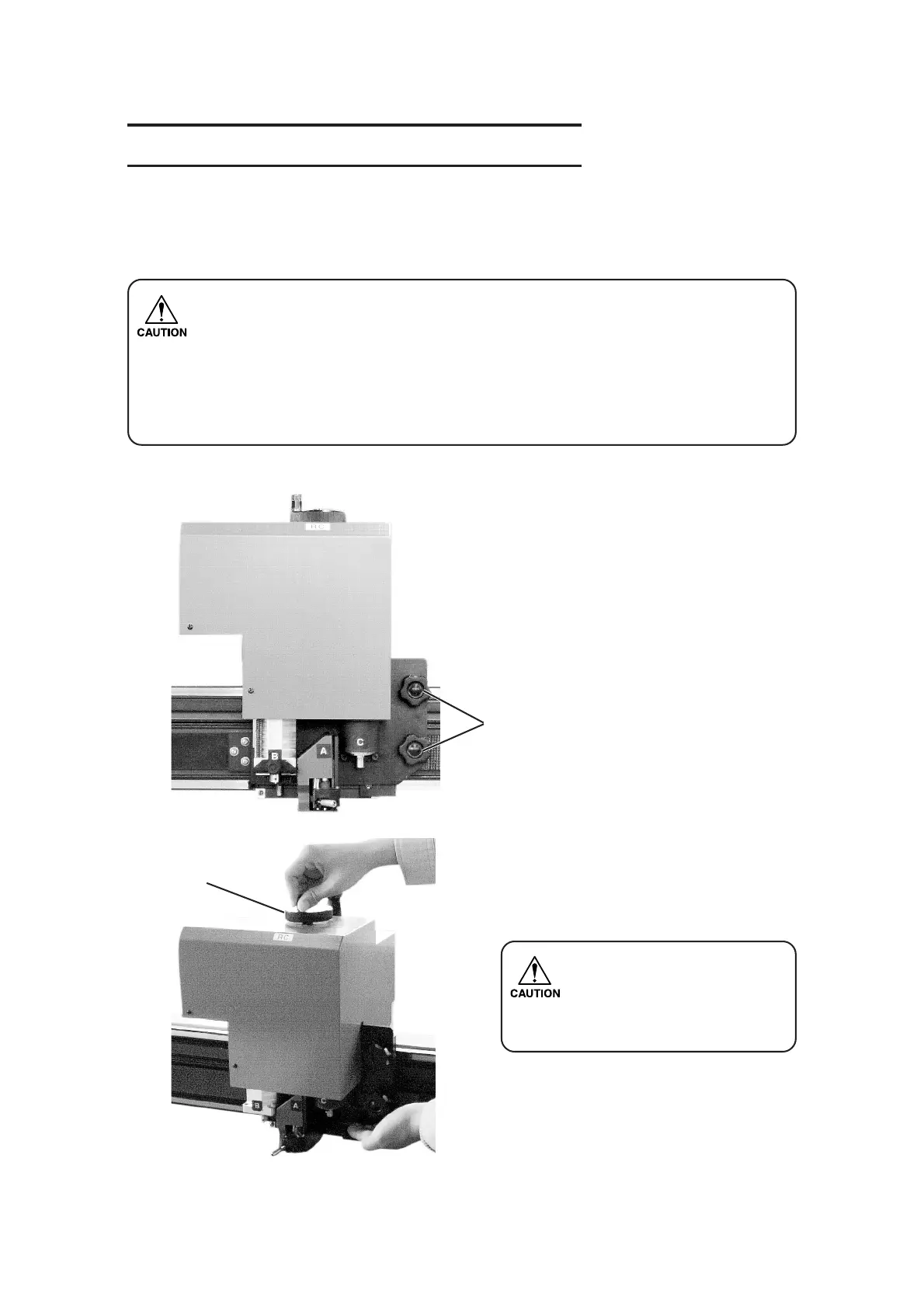

ADJUSTING THE HEIGHT OF THE HEAD
Once the work and tool have been attached, adjust the head height according to the tool that is used
and the thickness of the work.
• Be sure to use the felt mat placed on top of an insulated cutting mat. If cutting is
performed using unit B without using a felt mat, incomplete cutting will occur.
• When lifting the head, be sure to support the head base by hand. If lifting the head
only by the height adjusting handle, the height adjusting handle can break.
•Be sure to tight the both fixing screws alternately. If not, the fixing screws may be
broken.
1 Loosen two fixing screws in the head.
Turn the fixing screws counterclockwise
to loosen them.
2 Raise the head using the height adjust-
ing handle.
Turn the height adjusting handle coun-
terclockwise to lift the head.
• Since the head is heavy in
weight, support the head base
by hand. If not, the handle can
break.
Head base
Fixing screw
To Next Page
