— 1.13 —
Connecting the interface cable
The device is equipped as standard with an interface conforming to RS-232C.
Use a MIMAKI-recommended interface cable or a cable that matches your computer.

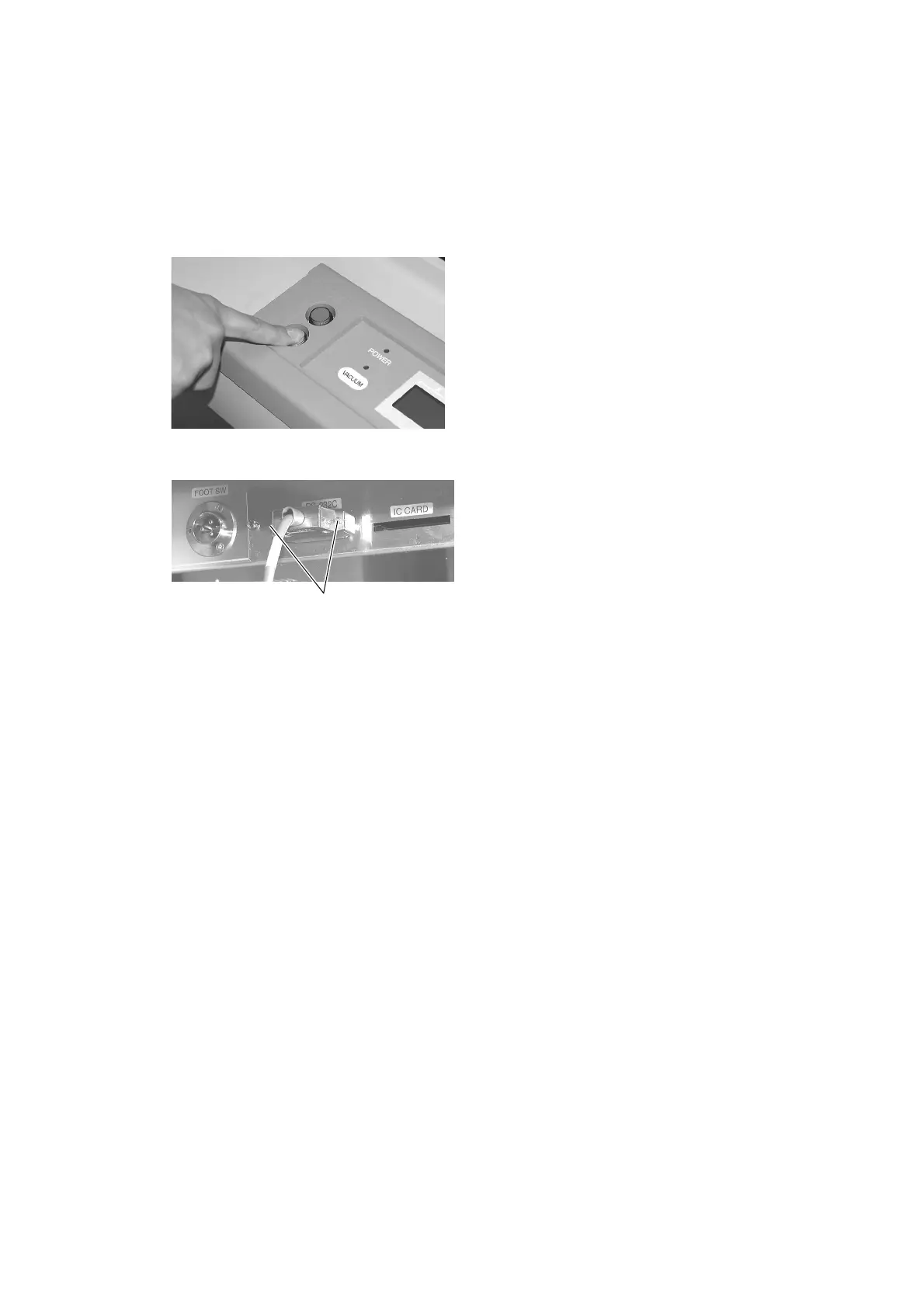

1 Turn off the power to the plotter and
that to the personal computer.
2 Insert one end of the interface cable
into the connector on the electrical
box.
Fix the connector with screws.
3 Insert the other end of the interface
cable into the connector of the com-
puter.
Fix the connector with screws.
Screws
