Head

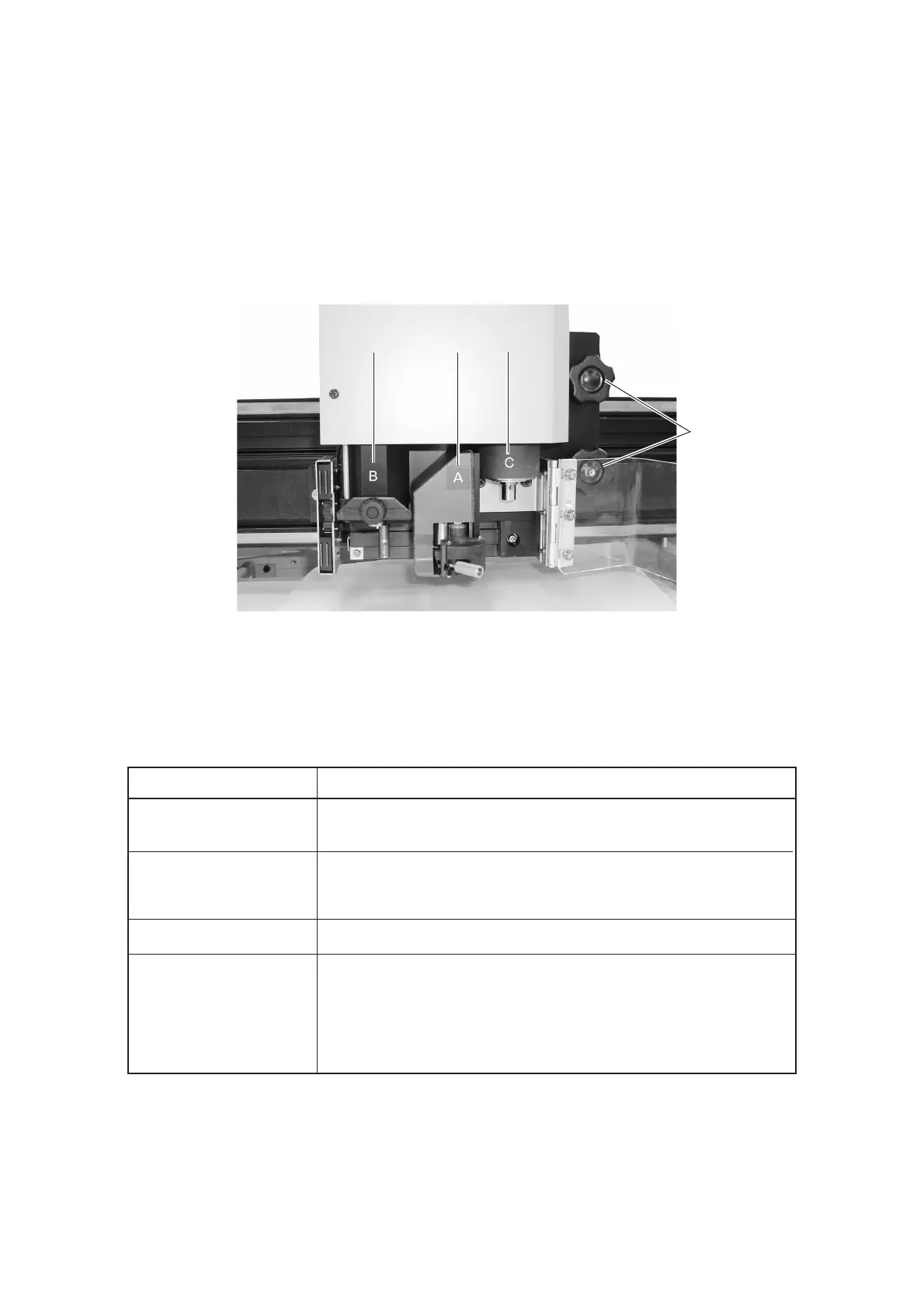

Front face
Name Function
1 Head securing screw Used to fix the head on the Y bar. Loosen it when adjusting the height of
the head or removing the head.
2 Unit C Attach a creasing roller or cutter holder (=> A.17).
In the case of the RC head model, a cutting pressure of 1 kg to 5 kg is output.
In the case of the RT head model, a cutting pressure of 0.3 kg to 1.5 kg is output.
3 Unit A A pen or swievel cutter (option => A.17) is attached to the head C.
4 Unit B Attach a reciprocal cutter holder.
RC head SPA-0113 (cutter holder 2N)
SPA-0114 (cutter holder 07)
RT head SPA-0113 (cutter holder 2N)
SPA-0099 (cutter holder 06)
Note: No holder may be provided depending on the model.
