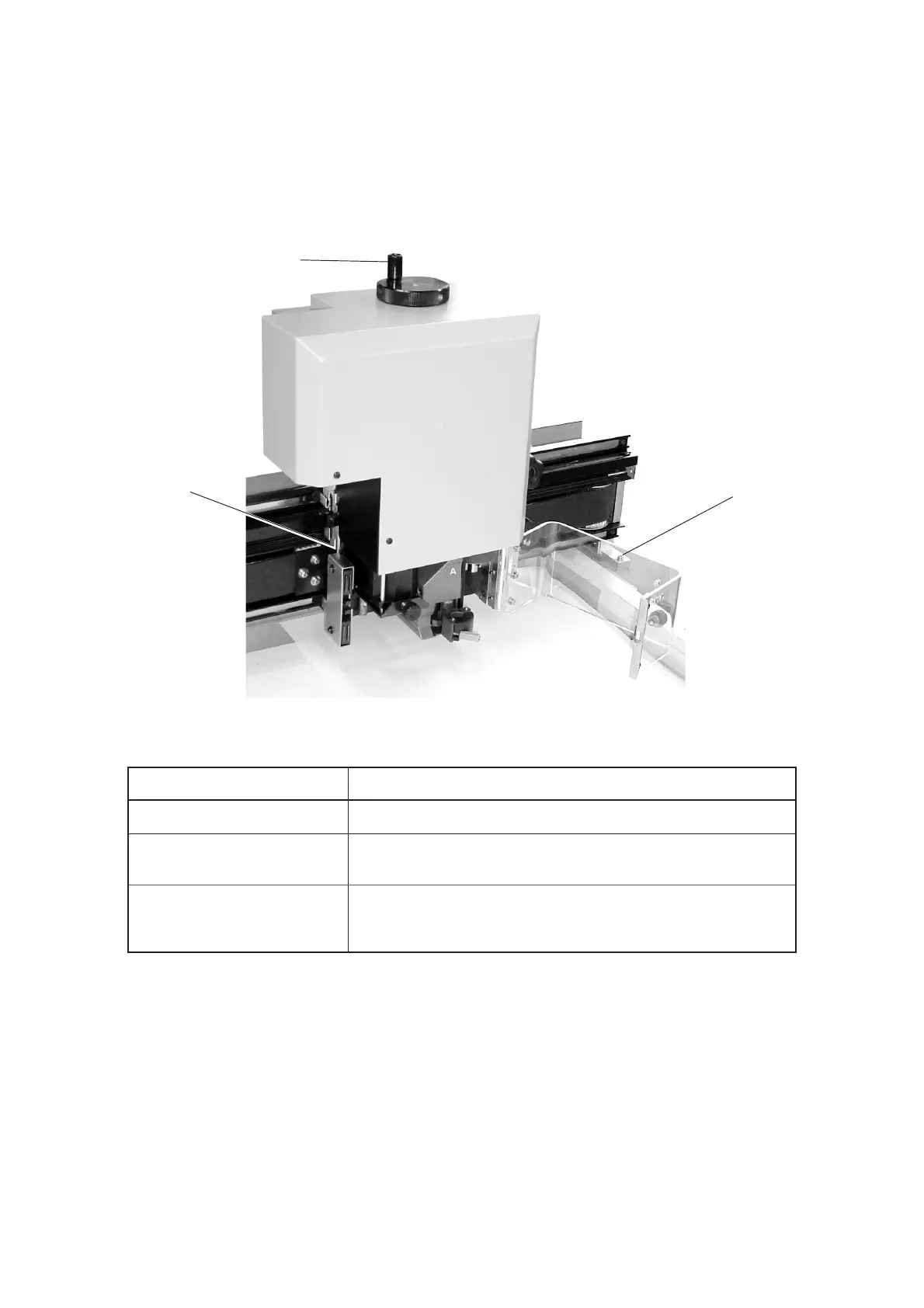

Left-hand side face
Name Function
1 Height adjusting knob Used to adjust the height of the head.
2 Height adjusting bar Used to adjust the height of the head in accordance with the thickness of a
work to be used.
3 Head safety cover Protects the operator from the blades. If this cover is opened while the head
is operating, the plotter stops and recovery is not possible. In this case, power
the device off and then back on.
1
3
2
