— A.3 —

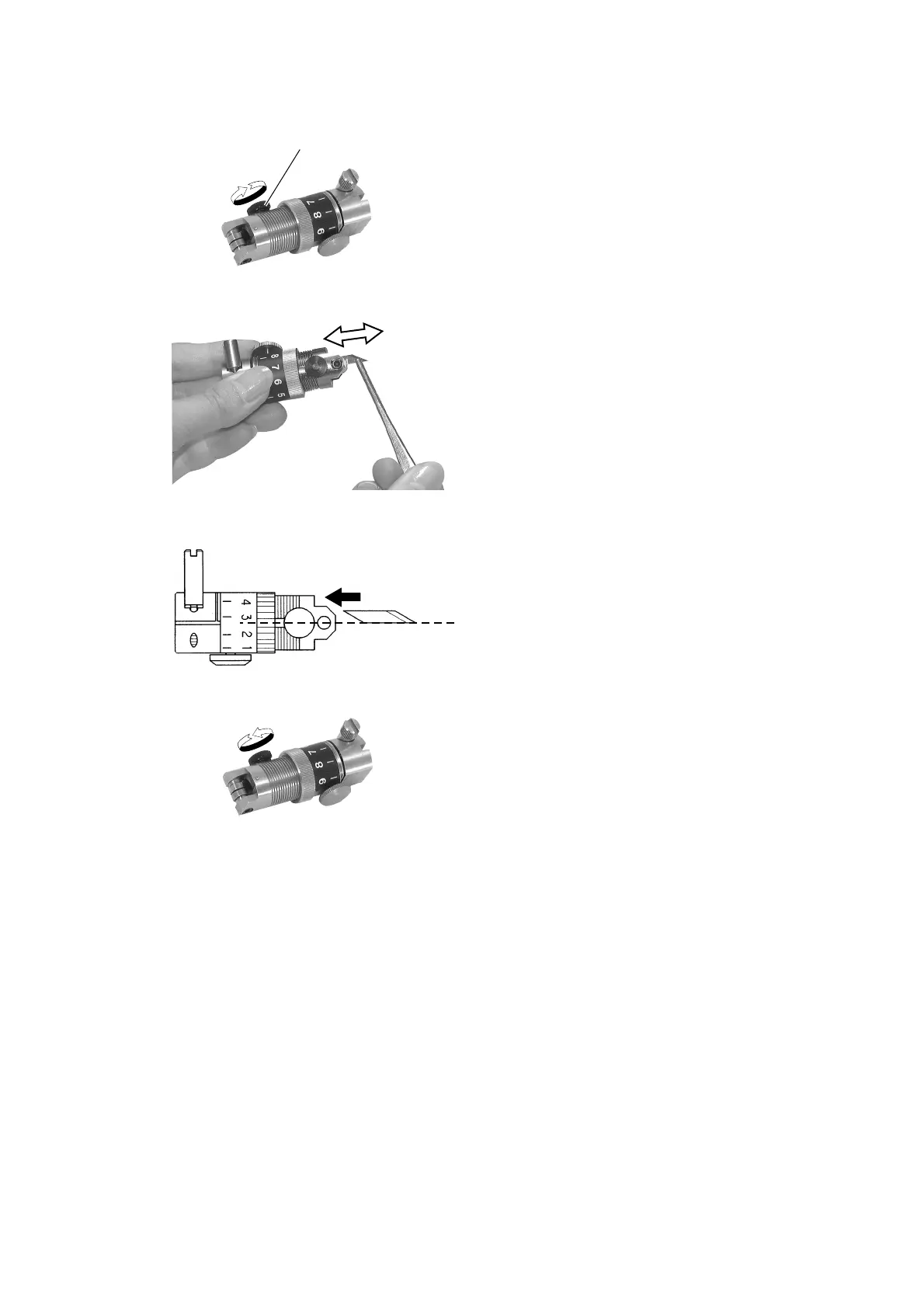

1 Loosen the cutter stopper.
Turn the cutter stopper counterclock-
wise to loosen it.
2 Replace the blade tip with a new one.
Hold the blade tip with a pair of twee-
zers supplied with the device as an ac-
cessory.
Insert the blade tip into the holder while
carefully checking the orientation of the
blade tip.
Insert the blade tip as illustrated in the
sketch on the left.
3 Tighten the cutter stopper.
Turn the cutter stopper clockwise to
tighten it.
4 Adjsut the projecting amount of the
blade tip.
Refer to the explanation given in the
“Adjusting the blade.” See page 2.12.
Cutter stopper
To Next Page
