4.3.1 P.1

R.1.1

Maintenance Manual > Adjustment Items > Mechanical Adjustment > Adjusting the Location of Mark Sensor

Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark

1.1

Rev.

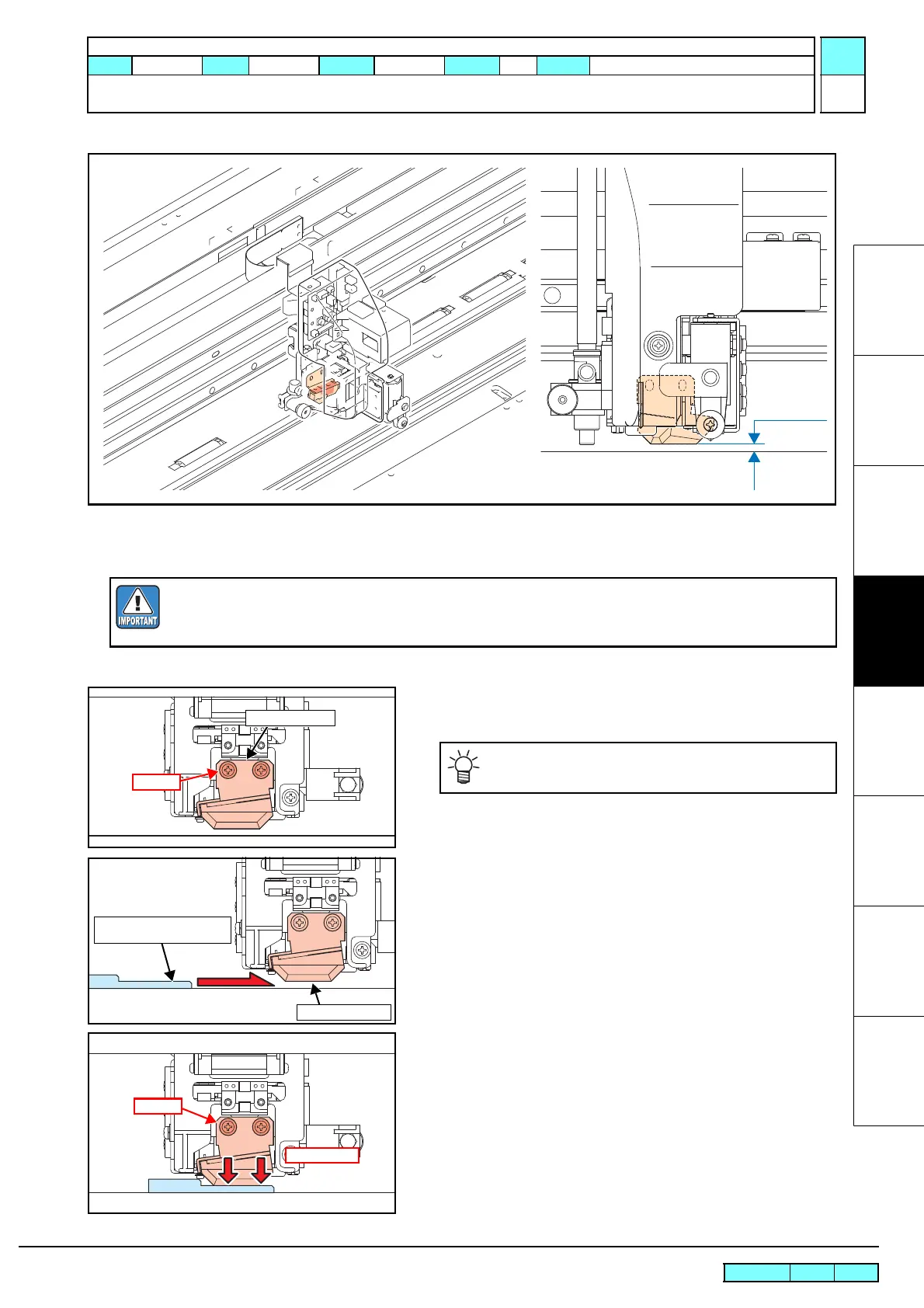

4.3.1 Adjusting the Location of Mark Sensor

 Function

Adjust the distance between the mark sensor (photo sensor) and the platen to the specified value.

 Procedure

1. From the back side of the printer, loosen the screws that hold

the T sensor BKT.

2. Insert the clearance gauge between the pen line film and the

bottom surface of the T sensor cover.

3. Check whether the right and left T sensor covers are fixed under

the conditions that each of them is in close contact with the

clearance gauge, then tighten up the screws.

 Set the pressure of all the clamps to Middle, and make the adjustment on the right station side.

 This adjustment is to be made mechanically without using any [#ADJUST] item. After completion of

this adjustment, however, make the adjustments of [PHOTO SENSOR] among the [#ADJUST] items.

2.8 mm

T Sensor BKT

Loosen

When no sheet is set: the plotter waits for input of a

compensation value without plotting.

Jig for adjusting the height

of CJV mark sensor

T Sensor Cover

Fix.

Press against.
