MIMAKI CJV30 Series User Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
4.3.4 P.1
1
2
3
4
5
6
7
8
R.1.0
Maintenance Manual > Adjustment Items > Mechanical Adjustment > Adjustment of the Wiper Height
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

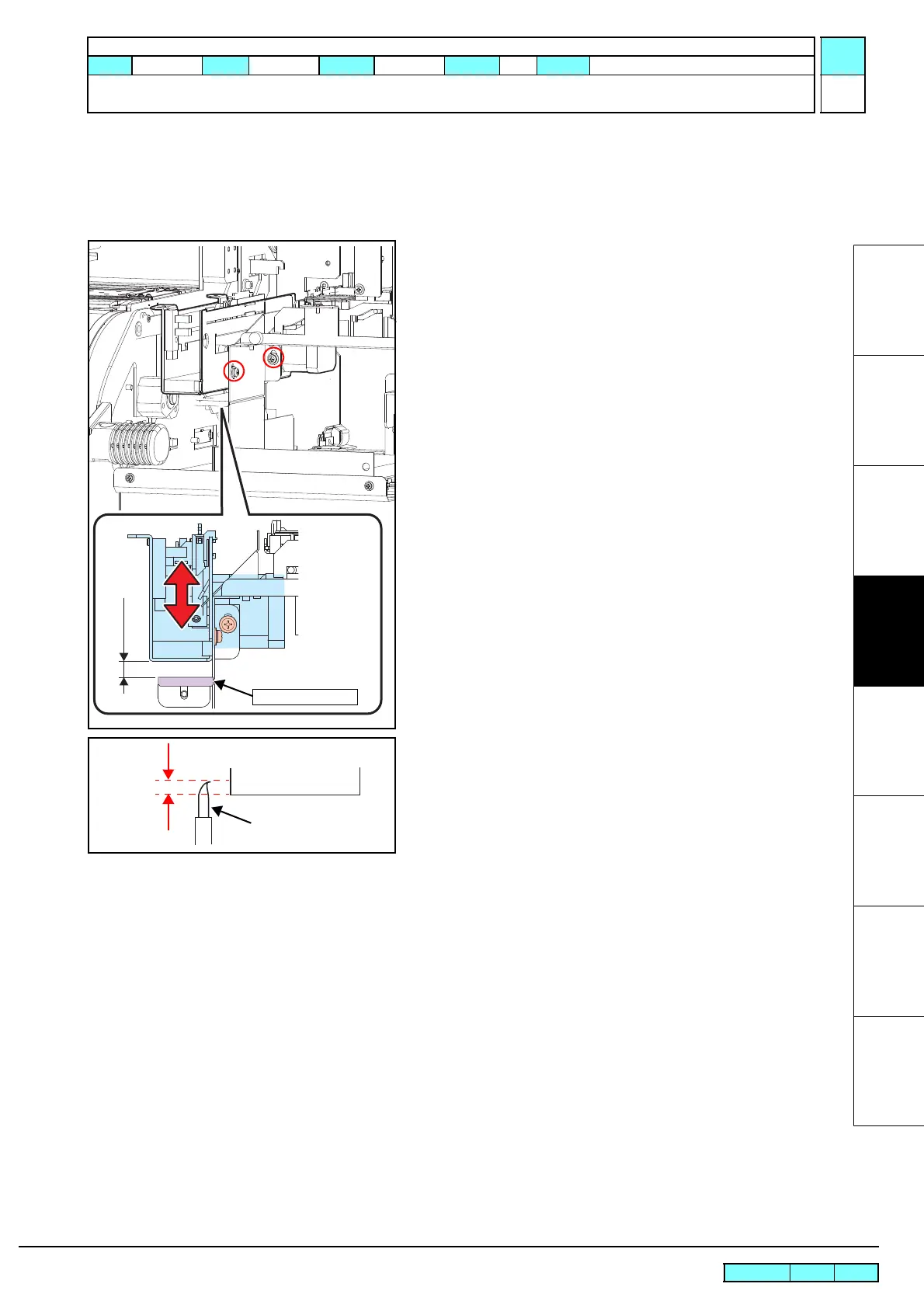

4.3.4 Adjustment of the Wiper Height
 Outline
 Procedure
1. Loosen the wiper height adjusting screws (x2), and temporarily
adjust the screws until the thickness gauge is 8mm.
2. Loosen the screws (x2) on the head cover front, and then tighten
the screws while holding the height adjustment lever in the lowest
position to fix the head in place.
3. Move the head, and adjust the wiper so that there is approximately
1.5 mm from the nozzle surface.
W-BKT spacer
8 mm
1.5 mm
Nozzle surface
Wiper

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
