Maintenance Manual > Adjustment Items > Mechanical Adjustment > Centering of the Roll Holder

Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark

1.0

Rev.

4.3.6 Centering of the Roll Holder

 Outline

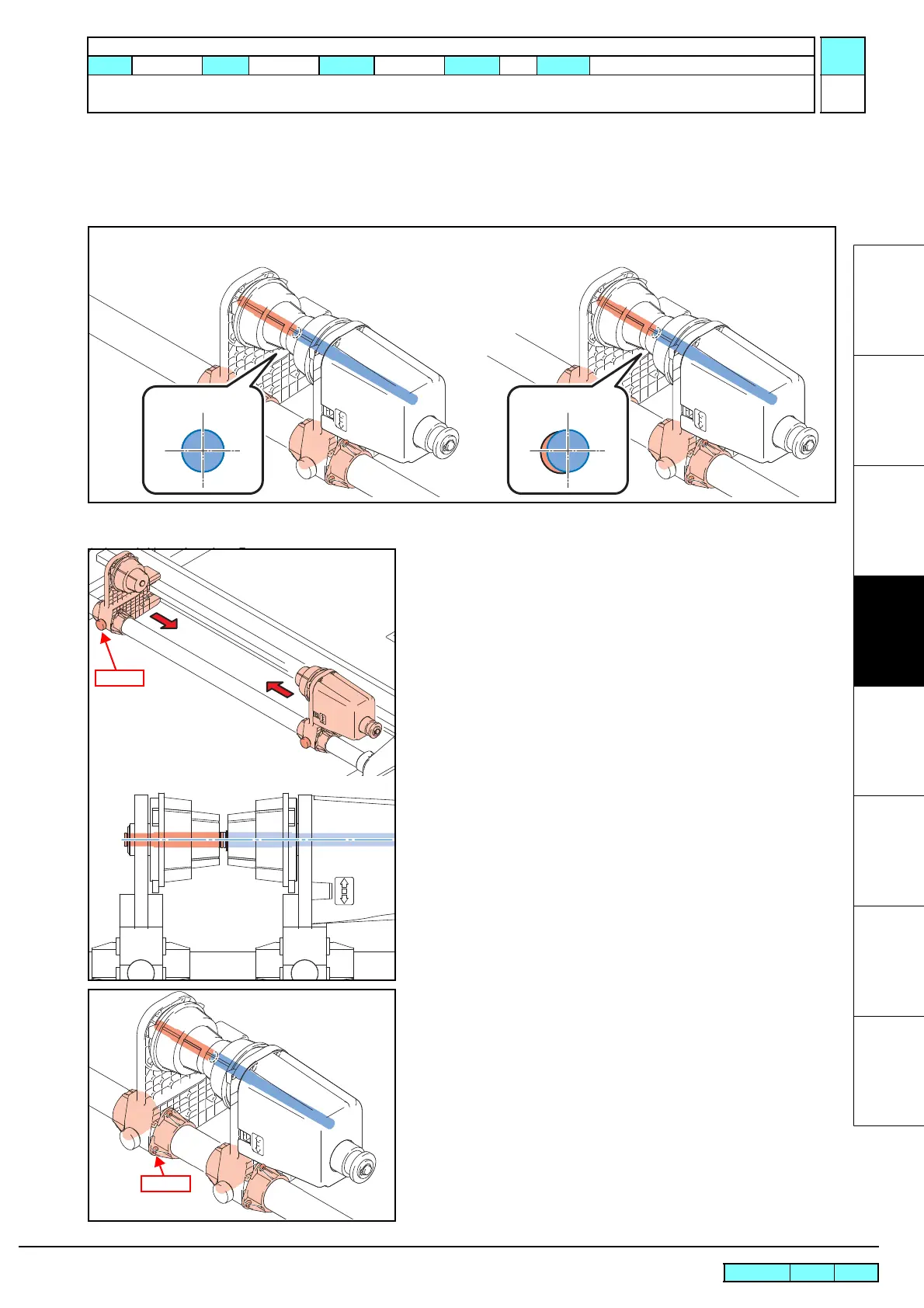

Carry out centering so that the axes of roller holder (axis of both feeding side and take-up side) are aligned, by

positioning them face-to-face.

 Adjustment procedure

1. Carry out centering so that the axes of roller holder are aligned by

positioning the feeding side and the take-up side face-to-face.

2. In case their axes are not aligned, make adjustment after loosening

the screws of the bushing.

3. After the both axes have been aligned, tighten up screws and check

for any misalignment of axis at the right, left and central part of

the main body.

Bad example: The axes of the right or left side of the

roller holder are out of alignment.

Good example: The axes of the roller holder

are in alignment.

Loosen
