Maintenance Manual > Disassembly and Reassembly > Electrical Parts > X-axis Motor Relay PCB Assy

Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark

1.1

Rev.

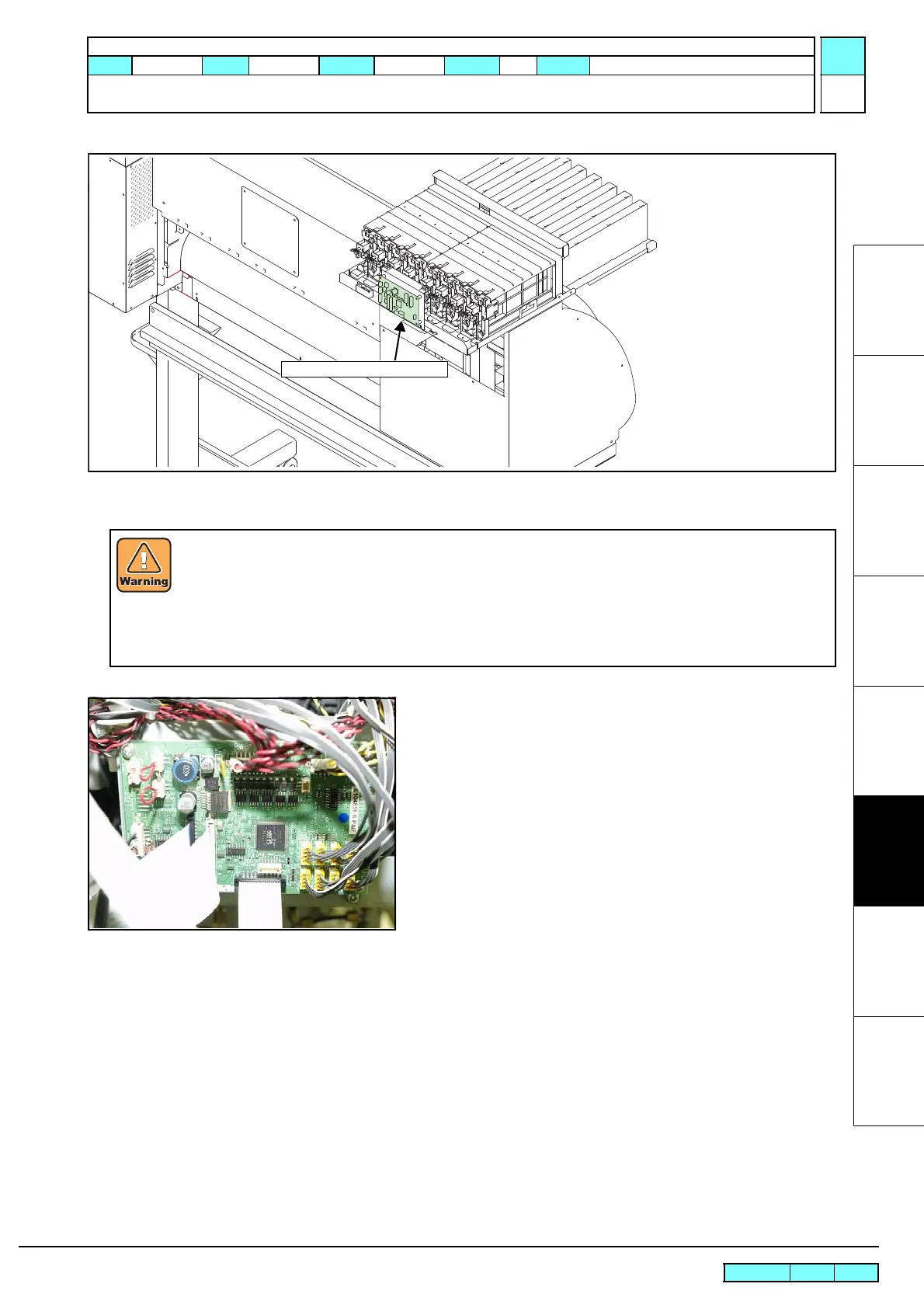

6.5.8 X-axis Motor Relay PCB Assy

 Work procedures

1. Remove the cartridge cover.

2. Disconnect all FFCs and connectors from PCB.

After turning off the sub and main power switches in order, unplug the power code.

Check if no electric charge is remaining in the PCB.

Refer to the "4.5.2 Electric charge checking when replace the Electrical Parts"

It is very dangerous if sleep mode functions mistakenly during the operation.

Moreover, the PCB may be damaged in case electric charge still remains inside.

Also there is a possibility of electric shock because of high power voltage applied the high-pressure part

of the power supply PCB assy. Take care to avoid contact with it.

X-axis Motor Relay PCB Assy
