MIMAKI CJV30 Series User Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
3.3.1 P.1
1
2
3
4
5
6
7
8
R.1.0
Maintenance Manual > Workflow > Driving Parts > Replacement of the X-axis Motor
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

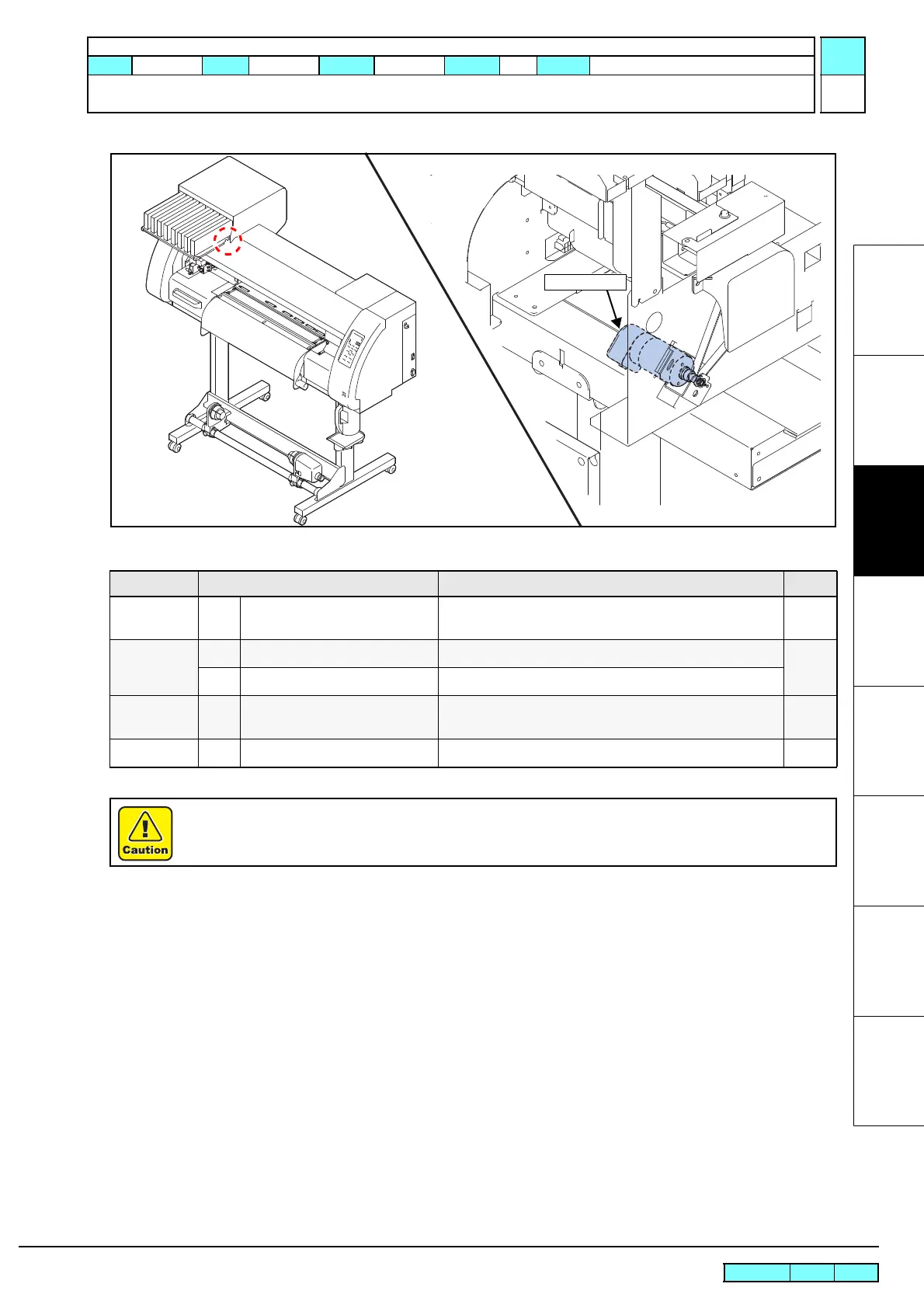

3.3.1 Replacement of the X-axis Motor
 List of replacement procedures
Item Work operation Description Ref.
Covers
1.

Removal of covers, etc. Remove the maintenance cover L, cartridge cover and left
cover.
6.1.1
X-axis Motor
2. 
Removal of the X-axis motor. Remove the X-axis motor. 6.4.1
3.

Mounting of the X-axis motor. Mount the X-axis motor.
Adjustment
4. 
Adjustment of the motor current If a hunting noise occurs while the motor is being driven,
adjust the X-axis motor current.
4.2.14
Covers
5.

Mounting of the covers Mount the covers that have been removed. 6.1.1
Be sure to wear protective glasses and working gloves during the operation.
Ink may get into your eyes depending on the working condition, or hand skin may get rough if you touch
the ink.
X-axis Motor

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
