MIMAKI JV5 Series Operating Manual

2-27
Setting a Medium
2
Basic Operations
9

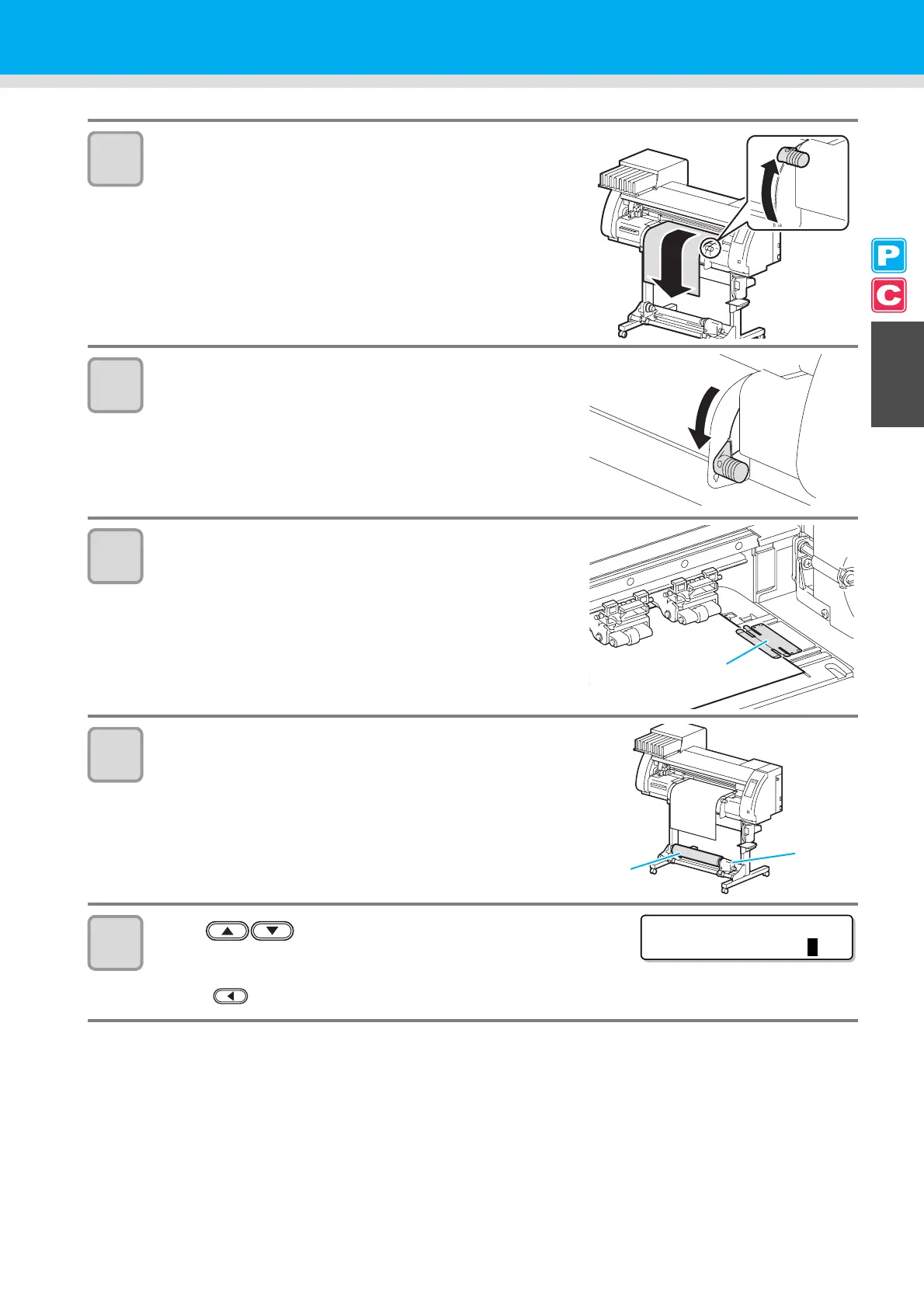

Pull out the roll medium out.
(1) Raise the clamp lever from the front of this machine.
(2) Pull out the roll medium gently and then stop pulling
when locked lightly.
10
Make the roll medium even, then lower the clamp
lever.
• Pulling several positions of the medium lightly, lower the
clamp lever after confirming that the amount of the roll
medium pulled out is almost even.
11
For printing, clip lightly the medium with the
medium holder.
• When using a thick medium, remove the medium holder from
the medium before printing.
• When setting the medium holder, refer to P.2-24.
• You do not need to use the medium holder for cutting.
12
Prepare the take-up device.
• Set an empty core of the roll medium on the take-up device.
13
Press to set the number of the pinch roller at
the left end of the medium.
• Set the number of the pinch roller at the left end of the set medium.
• Press to skip the pinch roller pressure setting from Step 14 to Step 17.
Medium holder
Core
Take-up
Device
** PINCH ROLLER **
P I NCH ROL L ER : No .
7 to1
