Installing Tools
2
Basic Operations

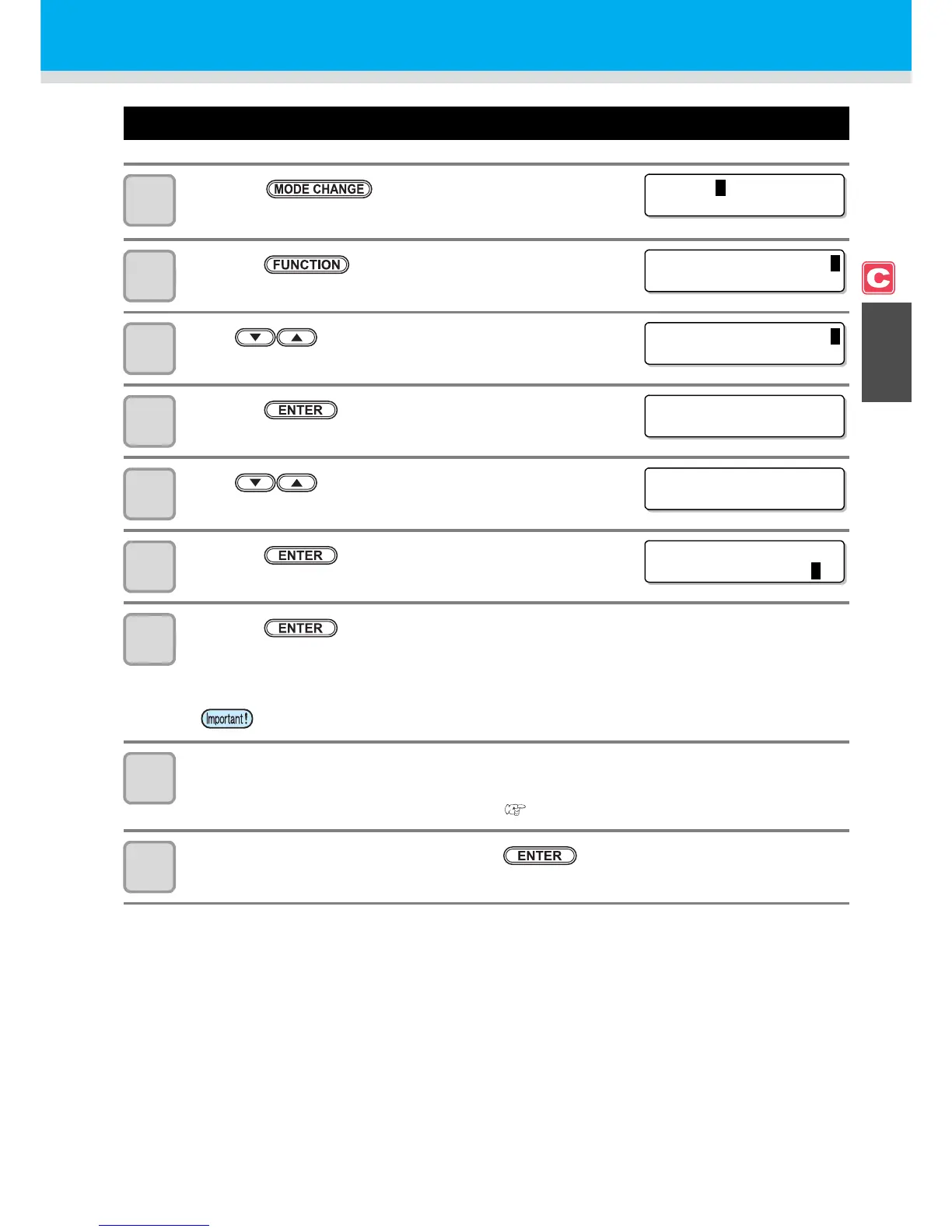

Exchanging Tool
1
Press the key in LOCAL to select cutting
mode.
2
Press the key.
3
Press to select [MAINTENANCE].
4
Press the key.
5
Press to select [TOOL REPLACE].
6
Press the key.
7
Press the key.
• The cutter unit moves to the left end of the machine.
• Now the cutter unit can be moved manually. Move the cutter unit to the position where you can assure
easy access, and then replace the blade edge.
8
See P.2-12 "Installing the Cutter Holder" to replace the cutter holder.
• When exchanging the cutter blade, refer to P.2-10 "Mounting a Cutter Blade".
• Adjust the length of the blade edge as required. ( P. 2-11)
9
When replacement is finished, press the key.
• Do not touch until the cutter unit stops.
<LOCAL . C >[#01]
CUT 1 ( 3 0 / 6 0 / 0 . 3 0 )
FUNCT I ON C
SETUP <ENT>
FUNCT I ON C
MA I NT ENANCE < EN T >
MA I NT ENANCE
MARK SEN SOR < e n t >
MA I NT ENANCE
TOOL REPLACE < e n t >
TOOL REPLACE
ACT I ON :
e nt
