Mindeo FS580 - Decode Zone

4
1-3 Decode zone

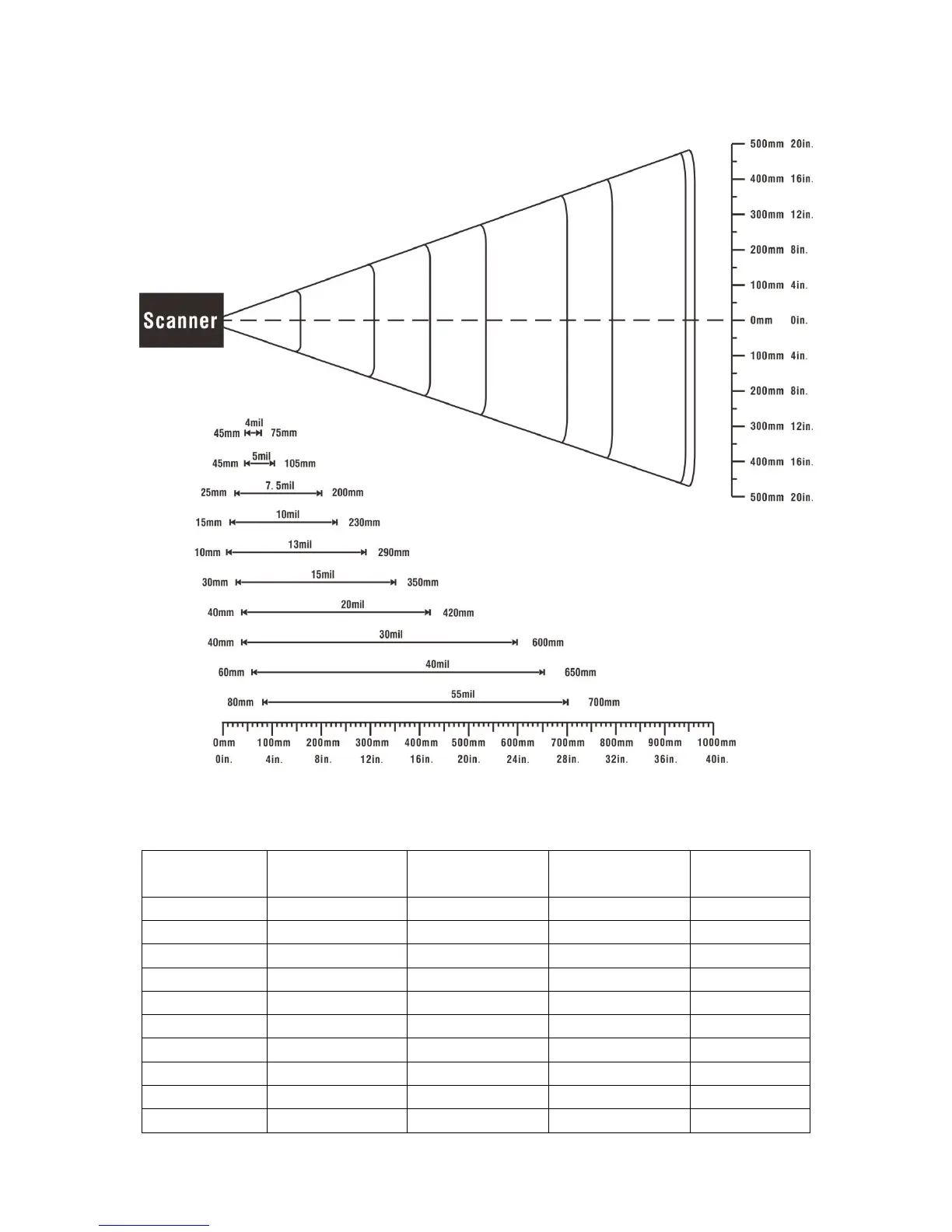

Figure 1-2 Decode zone @25°C, scan angle: 55°
Table 1-3 Description of barcode patterns applied in Figure 1-2
Resolution
Barcode type
Wide-narrow
element ratio
Barcode content
Contrast
4.0 mil
Code 128
2.5:1
123456789
80%
5.0 mil
Code 39
2.5:1
123
80%
7.5 mil
Code 39
2.5:1
ABCDEF
80%
10 mil
Code 39
2.5:1
123
90%
13 mil
100% UPC
-
1234546
90%
15 mil
Code 39
2.5:1
ABCD
80%
20 mil
Code 39
2.2:1
123
80%
30 mil
Code 39
2.2:1
EF
80%
40 mil
Code 39
2.2:1
AB
80%
55 mil
Code 39
2.2:1
CD
80%
