Mindeo FS580 - Mounting

8

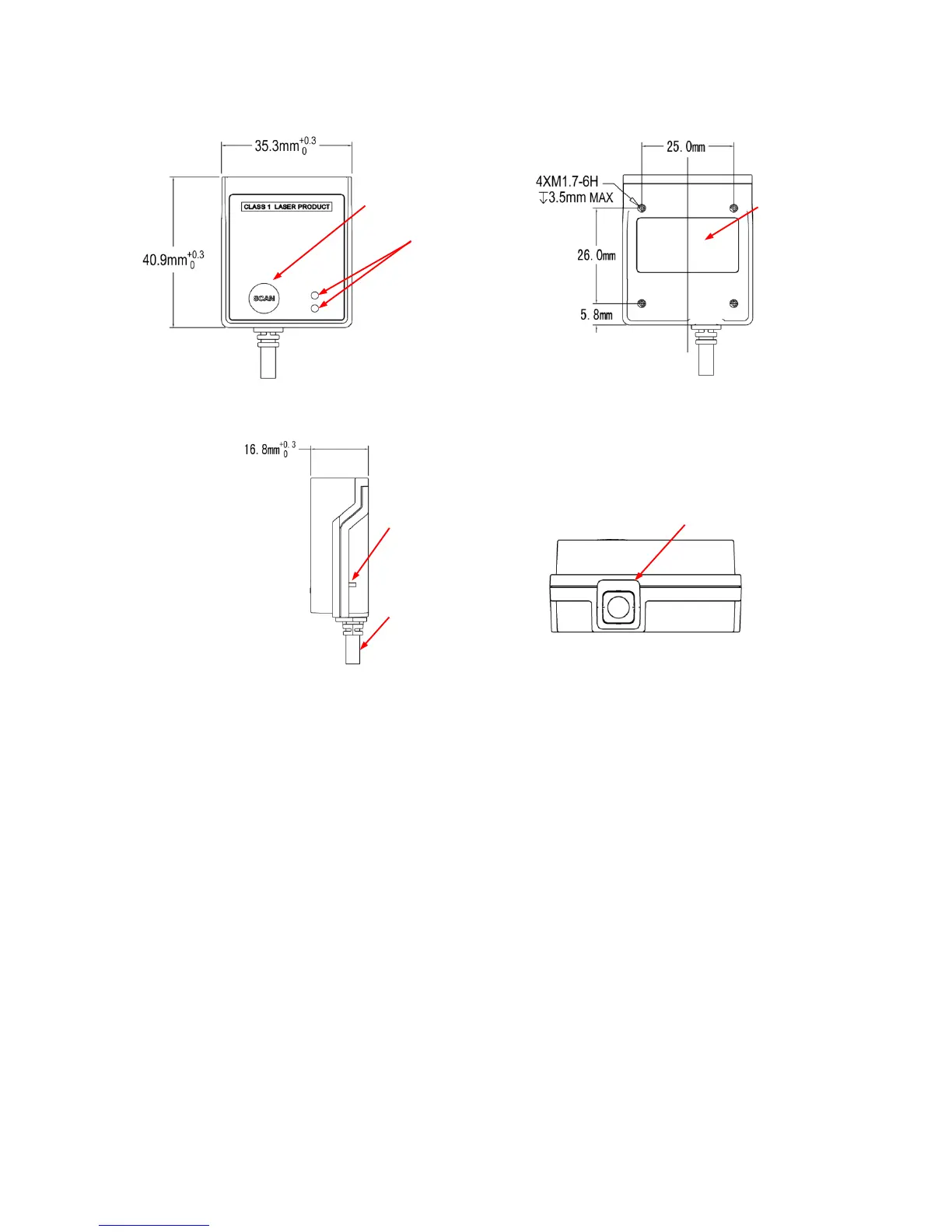

3-2 Mounting
Top view
Bottom view
Side view
Back view
Figure 3-2 Mounting diagram
Notes: Mounting screws and locating pins should be non-magnetic material. It is not recommended to
place any magnetic material within 1 inch of the scanner’s optics without testing.
Button
LEDs
Label
Beeper
Cable
Cable
