Mindray DC-8 EXP Service Manual

Structure and Assembly/Disassembly 9-19

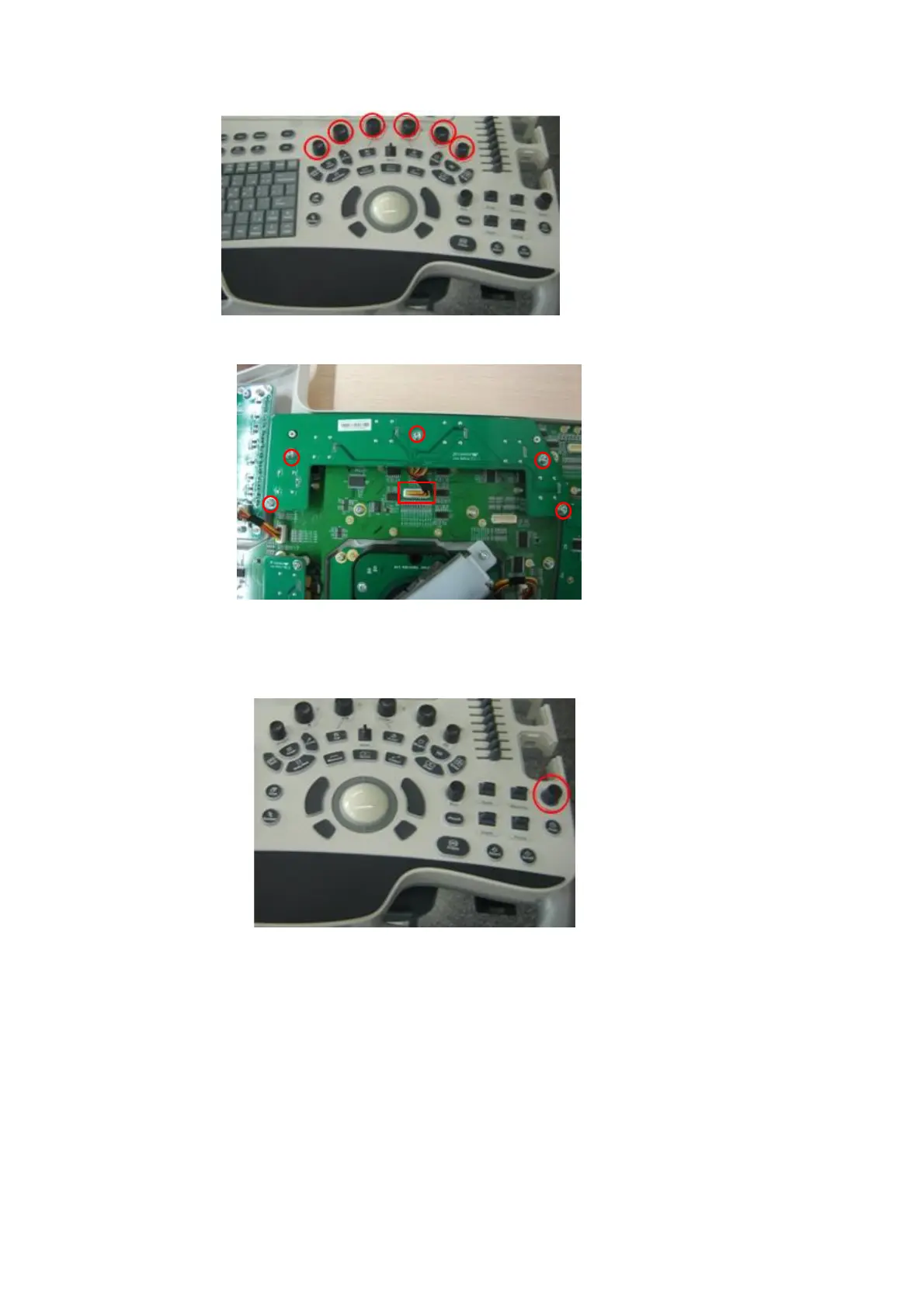

2. Unscrew five M3X8 screws on master panel six in one encoder and pull out signal wire of
encoder to remove the assembly.
9.3.9.2 ZOOM Encoder assembly
1. Pull out the cover of ZOOM encoder.
2. Pull out the signal wire of encoder as shown in the figure and unscrew two M3X8 screws to
remove ZOOM encoder assembly.
