9-20 Structure and Assembly/Disassembly
9.3.9.3 NAVI Encoder Assembly

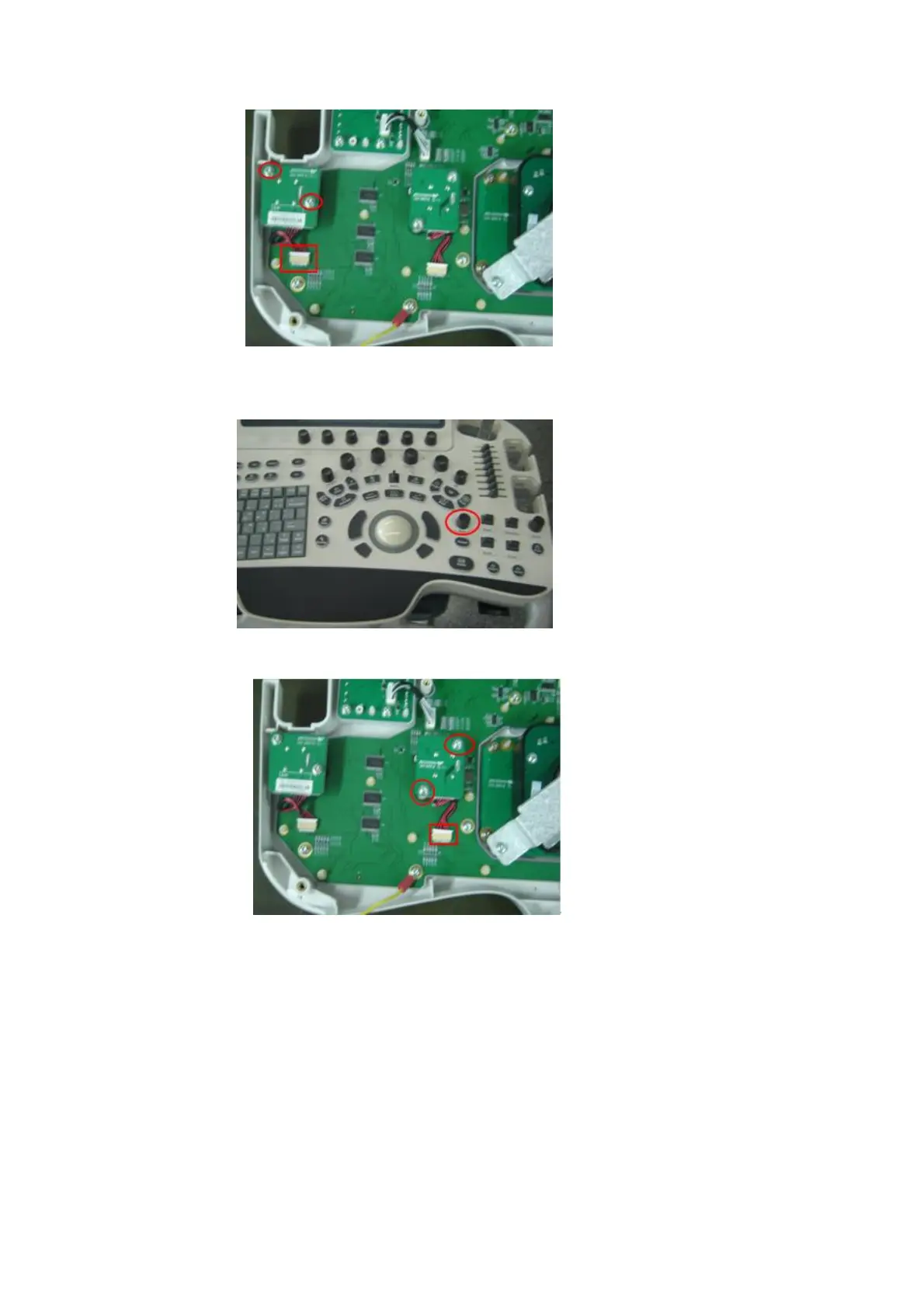

1. Pull out the cover of NAVI encoder.
2. Disconnect and remove signal wire of encoder as shown in the figure and unscrew two M3X8
screws to remove NAVI encoder assembly.
9.3.9.4 TGC Assembly
1. Pull out eight covers as shown in the figure.
