Mindray DC-8 EXP Service Manual

9-30 Structure and Assembly/Disassembly

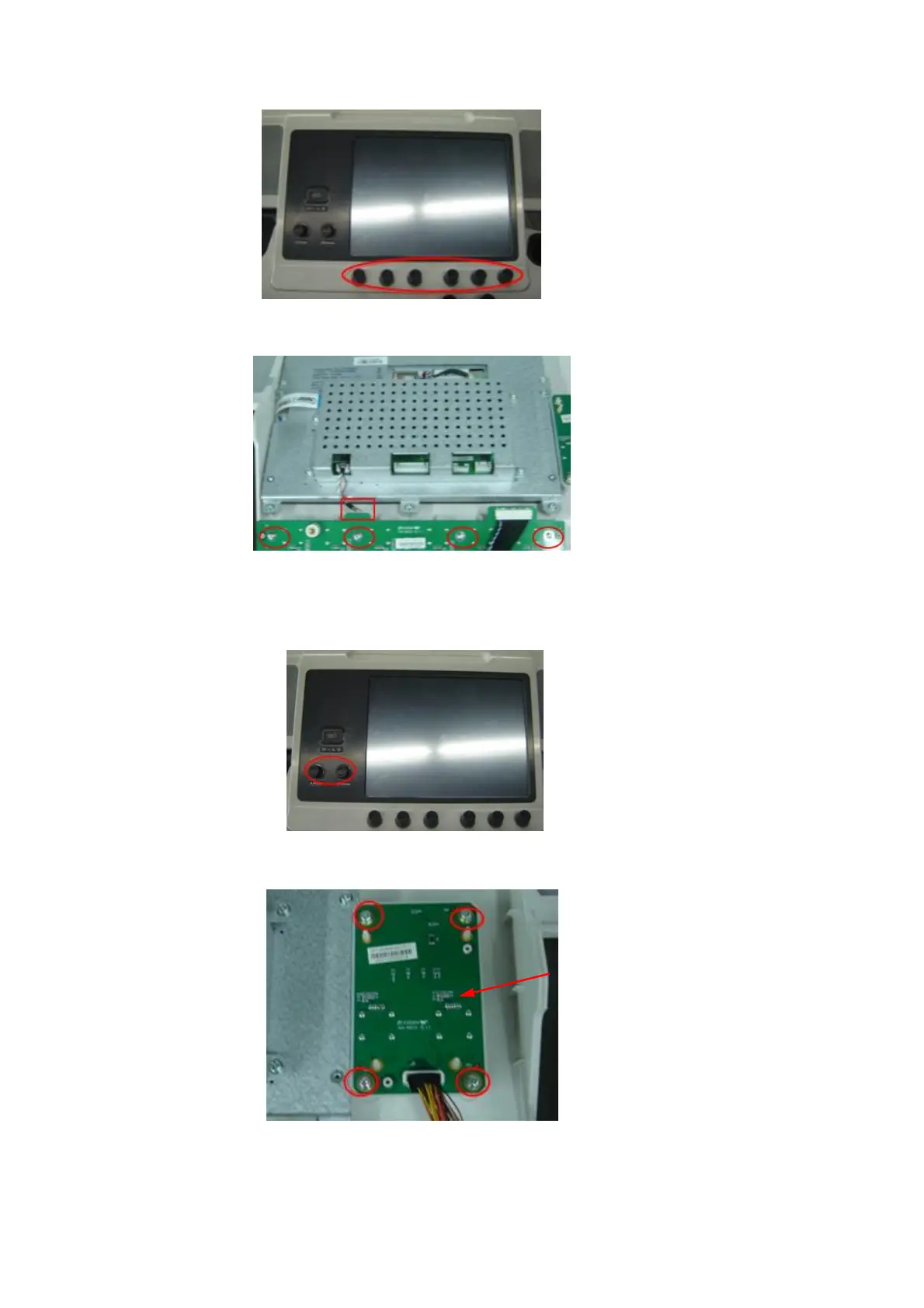

3. Pull out communication wire of touch screen and unscrew four M3X8 screws to remove six in
one encoder module.
9.3.11.5 Minor Keyboard Module, Power Silicon Key
1. Remove minor panel assembly. Refer to 9.3.11.
2. Pull out two covers of encoders.
3. Turn over minor panel and unscrew four M3X8 screws to remove Keyboard and power silicon
keypad assembly
.
4. Pull out four pins of power silicon key and remove it. The left part is minor keyboard.
