10-8 Optional Installation/Assembly

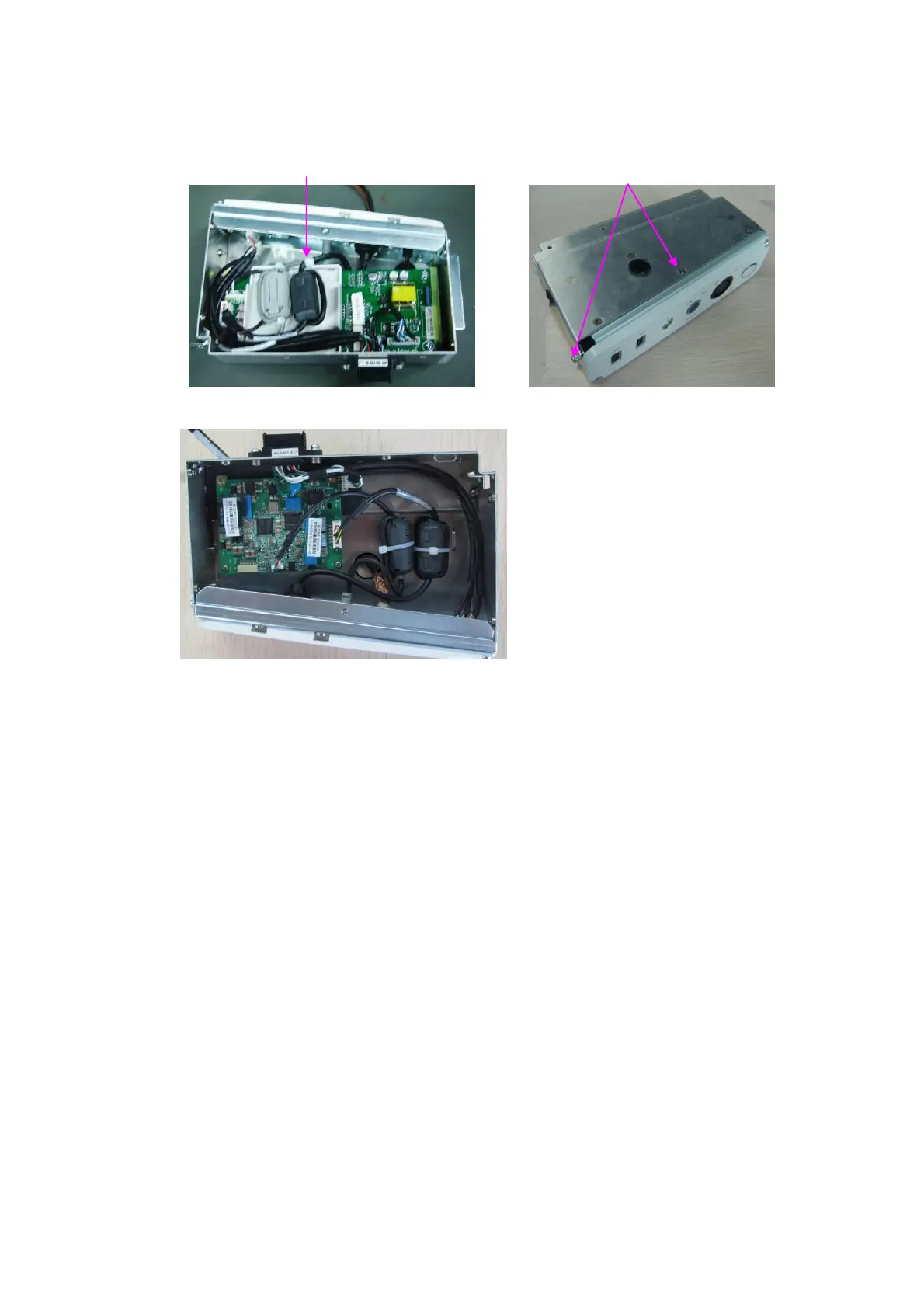

3 pcs of M3X6 Philips sunk head screws on the top
cable tie 3X100 left/right2 pcs of M3X8 Philips pan headed screws
Fig a XP
Fig b （Win7）
5. As shown in the figure 4a and 4b, remove the M3X8 Philips pan headed screws(2 pcs) for
fixing the ECG panel, take out the ECG panel and remove the sealing cover for the pencil
probe port on the panel.(Front panel should be faced up so that sealing cover can be pressed
down, and trim residual plastic edges without scratching the panel appearance. Note if the
sealing cover position is right）.As shown in the 4c graph, assemble the panel back（Use 2 pcs
of M3X8 Philips pan headed screws to fix the panel without fastening them, after gaps among
the panels and outlets are adjusted evenly, fasten the screws）.Then remove the front nut of
the outlet(provided with the pencil probe cable) from the pencil probe cable, screw the back
hexagon nut towards the end of the screw thread; guide the pencil probe outlet through the
corresponding pencil probe port hole on the ECG front cover (the locating slot should be
upward), and then screw the front nut and make it parallel to the stud; fasten the back
hexagon nut so as to fix the pencil probe cable on the front cover.
