Description of Self-diagnosis Test Items C-11

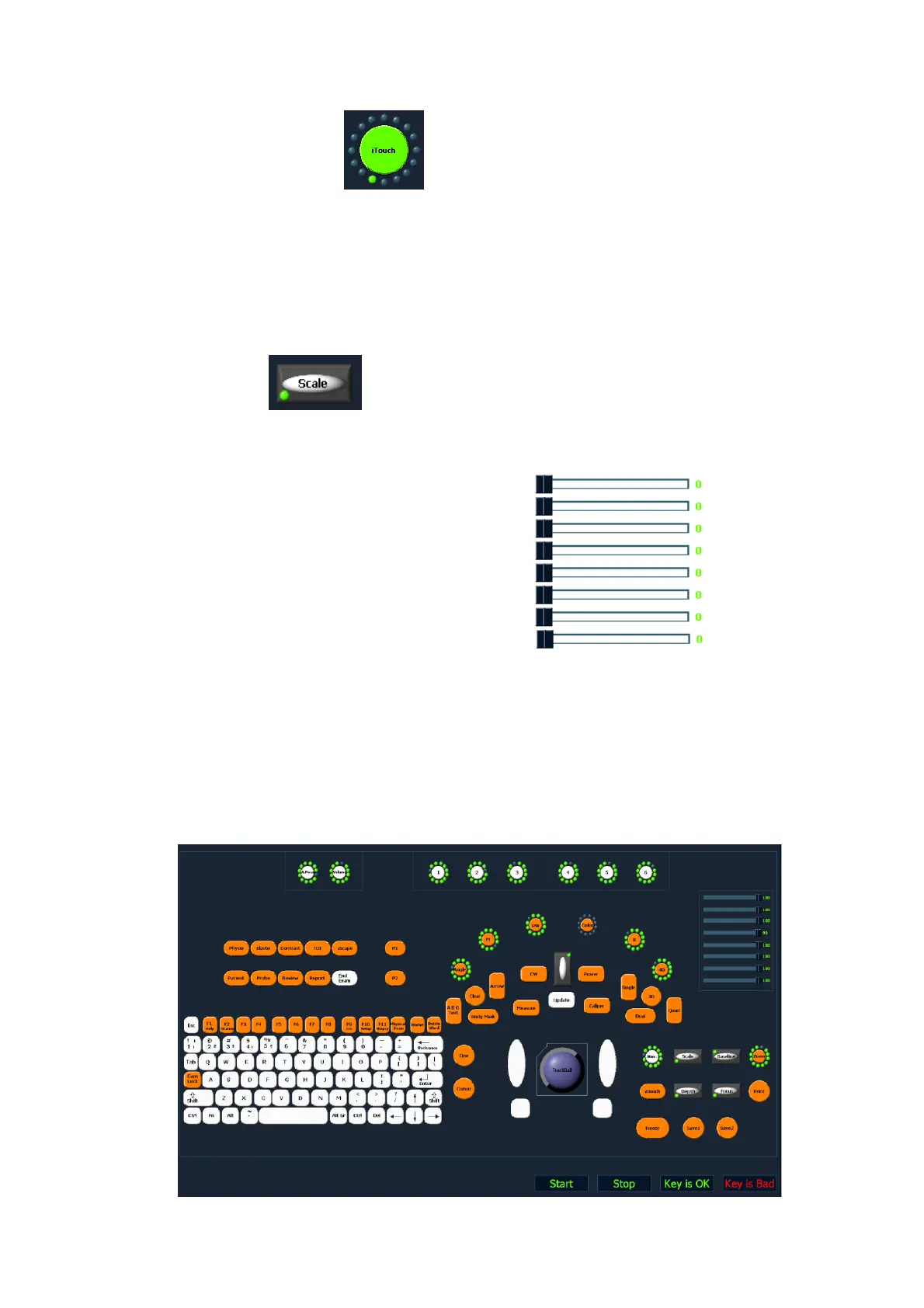

The encoder rotation test: the on the simulation keyboard corresponds to the encoder
on the real keyboard. When you rotate the encoder in a direction, the corresponding green ball
around the encoder on the simulation keyboard will rotate in the same direction. The encoder face
will flicker and turn green or orange.
The encoder key test: when you press the encoder key, the encoder key on the simulation keyboard
will change status accordingly, and flicker and turn green.
When you dial the , the control will change according to the direction of the slider with
corresponding green light point the direction.
All controls which turn orange stand for corresponding keys having orange indicators.
TGC test: 8 TGC sliders on the keyboard correspond to controls on the
simulation keyboard. When sliding TGC sliders on the keyboard, the corresponding controls on the
simulation keyboard will move as well.
Keyboard backlight test: when the simulation keyboard initializes, all dual-color lights will highlight in
green on the keyboard. When a key is being tested, the dual-color backlight will automatically turn
orange after it is pressed.
After all tests for the keyboard assembly finished, the keyboard screen is shown in figure as below.
