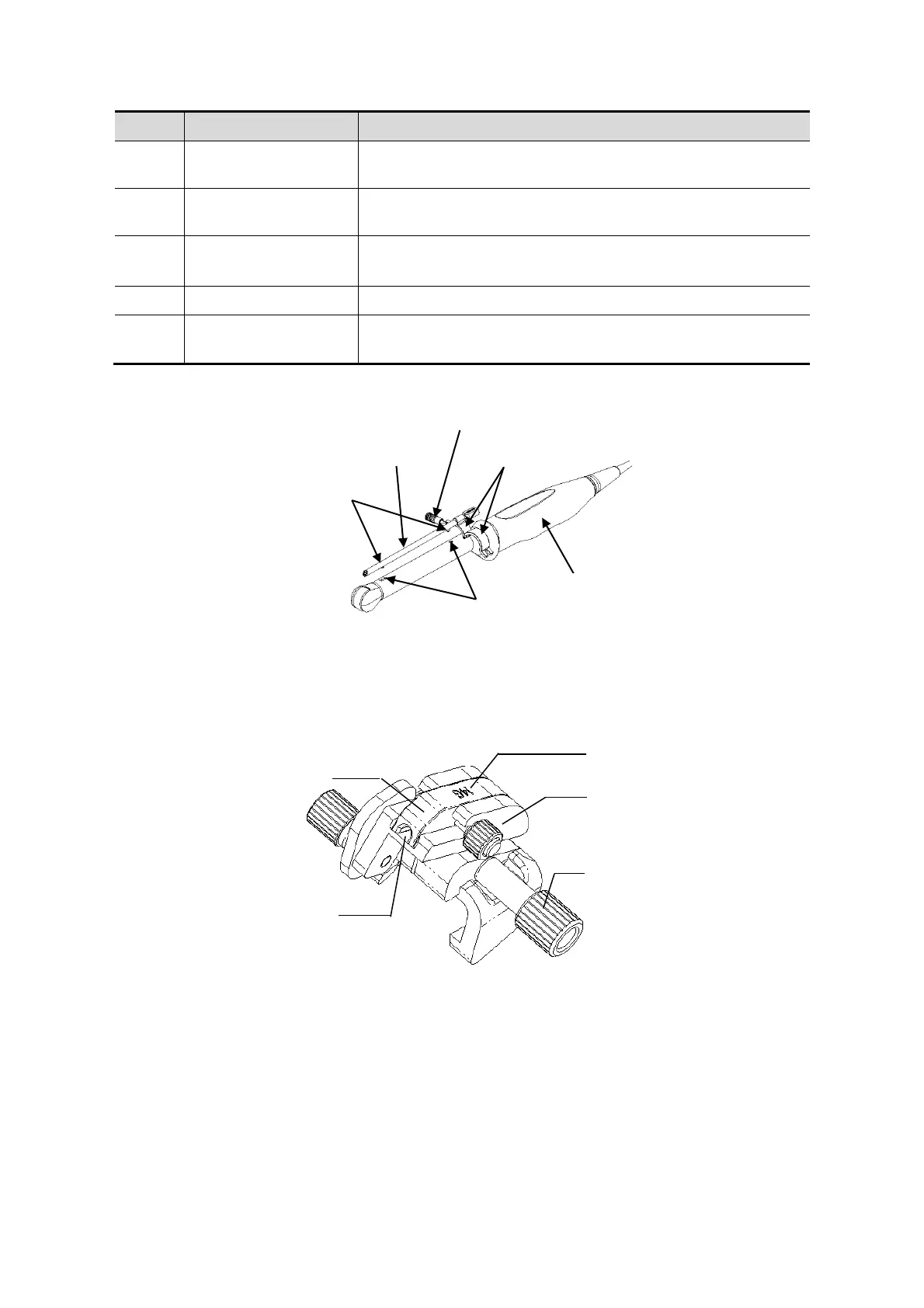

Mindray DP-50 PT - Page 206

12-18 Probes and Biopsy
No.
Name
Description
<6>
Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used
<7>
Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy needles
<8>
Specification of
guiding block(14G）
Matched with the corresponding biopsy needle(14G）
<9>
Needle guide hole
Used for installing the biopsy needle
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the
transducer
 NGB-004
 NGB-007
 Metal:
<6>
<9>
<7>
<10>
<8>
Locating groove
Transducer
Needle guide
Locating bulge
Locking nut
Retaining clamp
