12-34 Probes and Biopsy

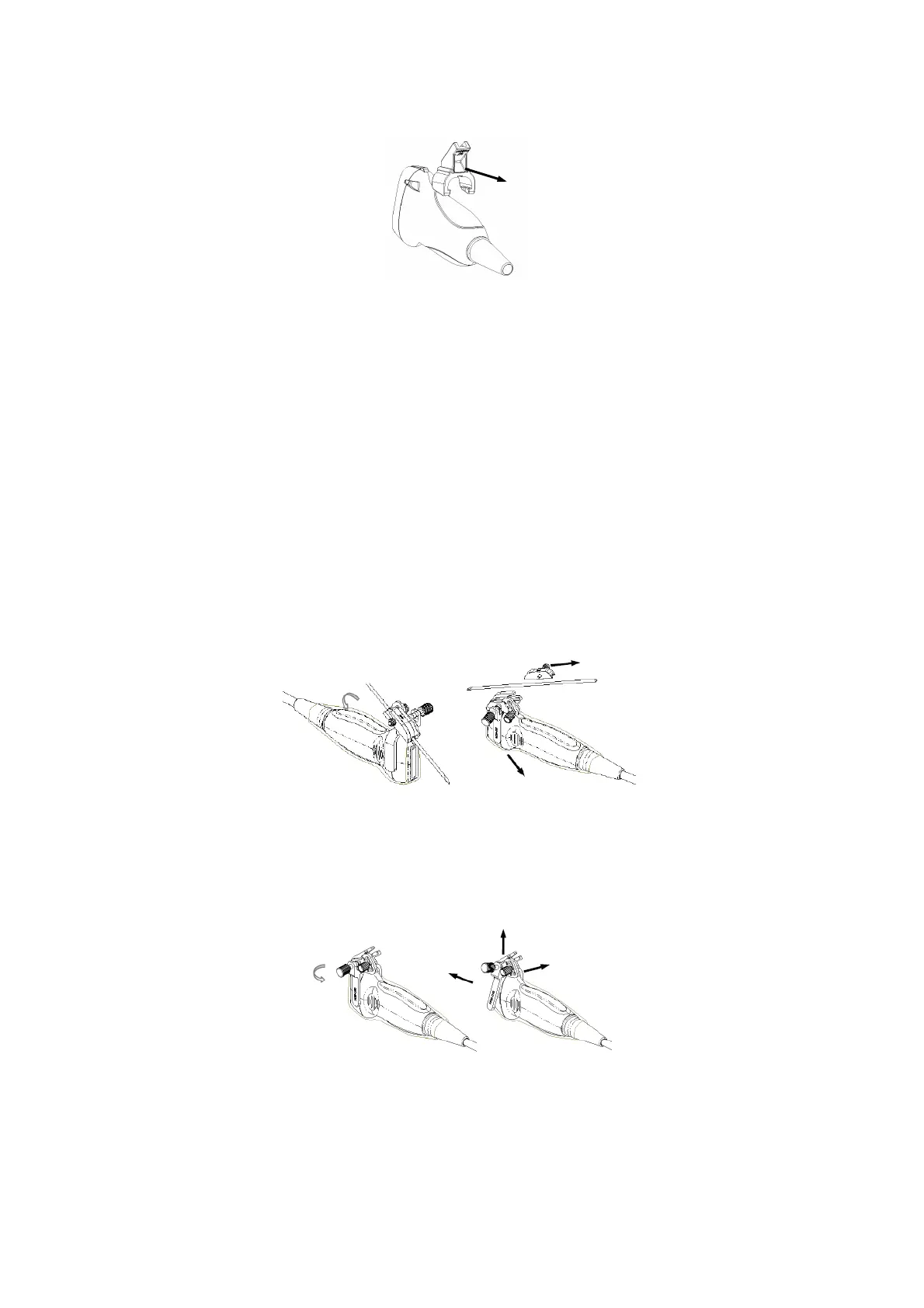

3) Remove the support of needle-guided bracket from the transducer.
NGB-009
(1) Turn on the knob of fixing the needle and separate the needle from the needle-
guided bracket.
(2) Turn on the knob of fixing guiding block and remove the guiding block from the hole
of installing guiding block.
(3) Turn on the knob of fixing needle-guided bracket and remove the needle-guided
bracket.
NGB-010
(1) Remove the guiding block slightly along the direction of the needle’s tail, and
separate the residual part of the needle-guide bracket and the transducer from the
needle.
(2) Remove the support of needle-guided bracket from the transducer.
NGB-016
1. Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
2. Separate the residual part of the needle-guide bracket and the transducer from the
needle.
3. Screw the pinch nut of the bracket, and remove the needle-guided bracket from the
transducer.
4. Separate the transducer and the needle-guided bracket.
