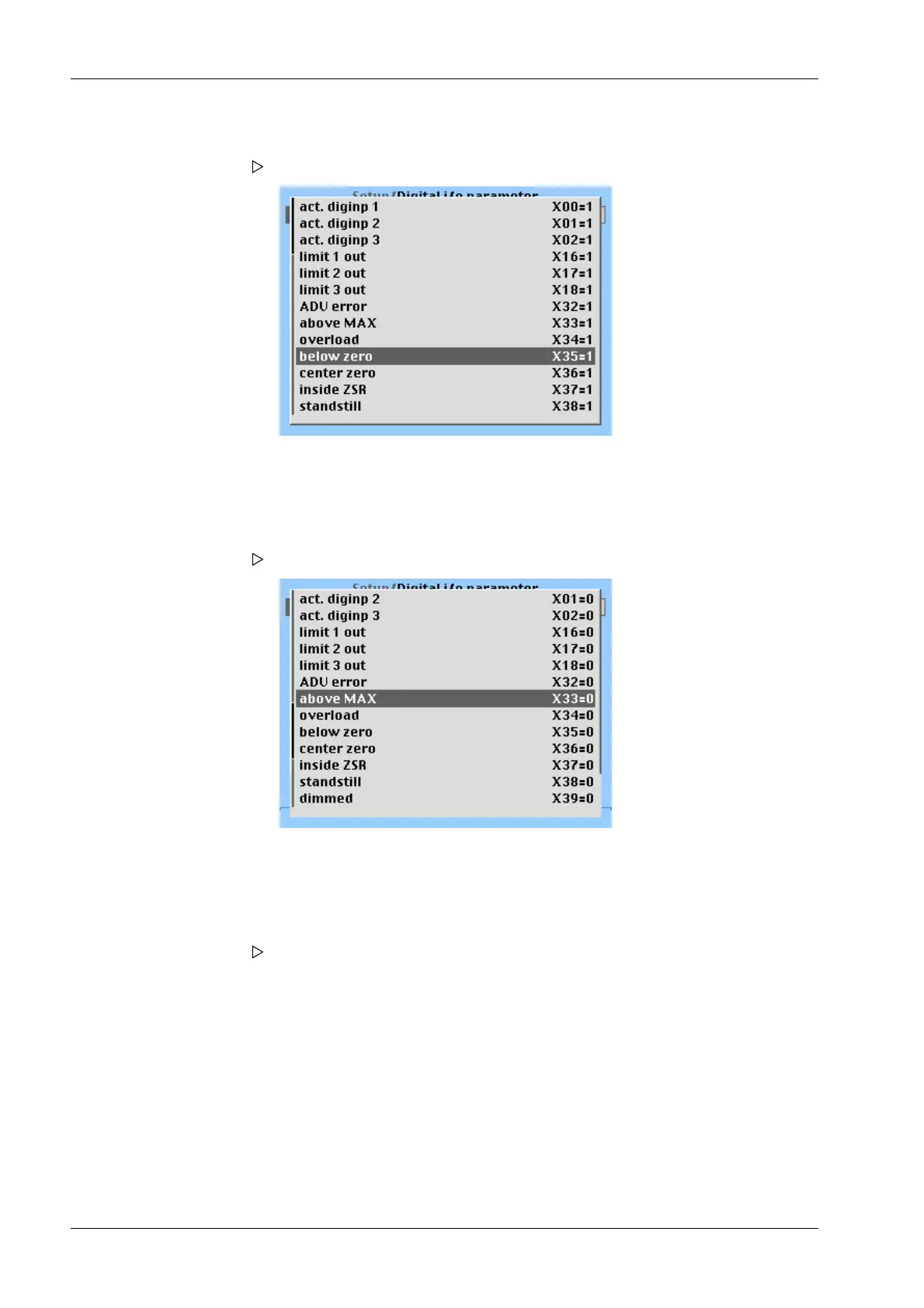

1. Select [Output 1] and conrm.
The output 1 [Output 1] is true (active), when the weight value drops below zero
(X35=1).
A selection window opens.
2. Select [below zero] and conrm.
3. Select [Output 2] and conrm.
Output 2 [Output 2] remains (active), as long as the weight is not above Max
(X33=0).
A selection window opens.
4. Select [above MAX] and conrm.
5. Select [Output 3] and conrm.
A selection window opens.
