4. Device installation | 4.3 - Hardware construction | 48

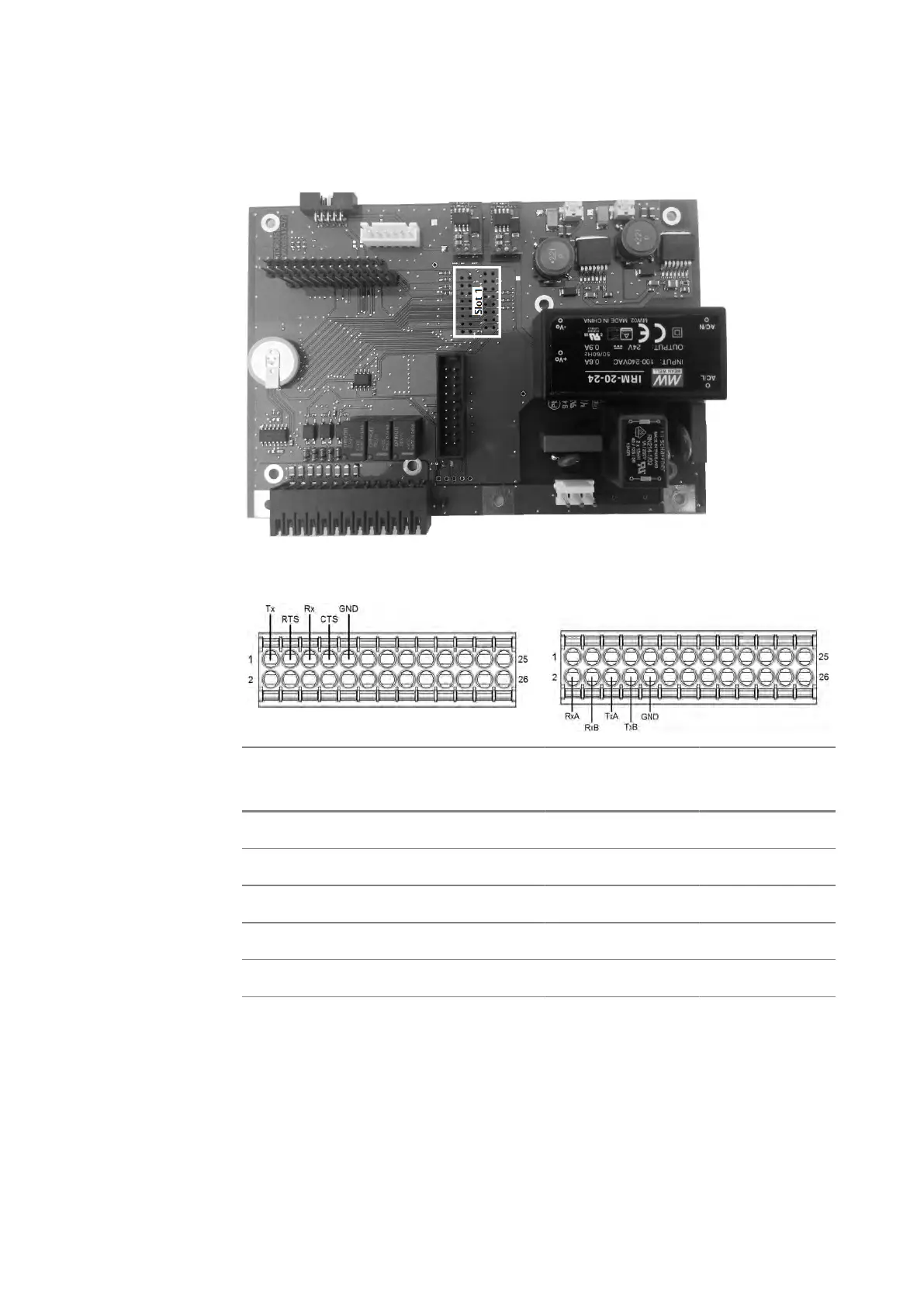

4.3.4 1×RS-232 interface und 1×RS-485 interface
The interfaces can be configured via the front-panel keys.
RS-232 RS-485
Terminal con
tact
Connection Terminal contact Connection
1 RS-232 - Tx 2 RS-485 - RxA
3 RS-232 - RTS 4 RS-485 - RxB
5 RS-232 - Rx 6 RS-485 - TxA
7 RS-232 - CTS 8 RS-485 - TxB
9 RS-232 - GND 10 RS-485 - GND
