4. Device installation | 4.3 - Hardware construction | 35

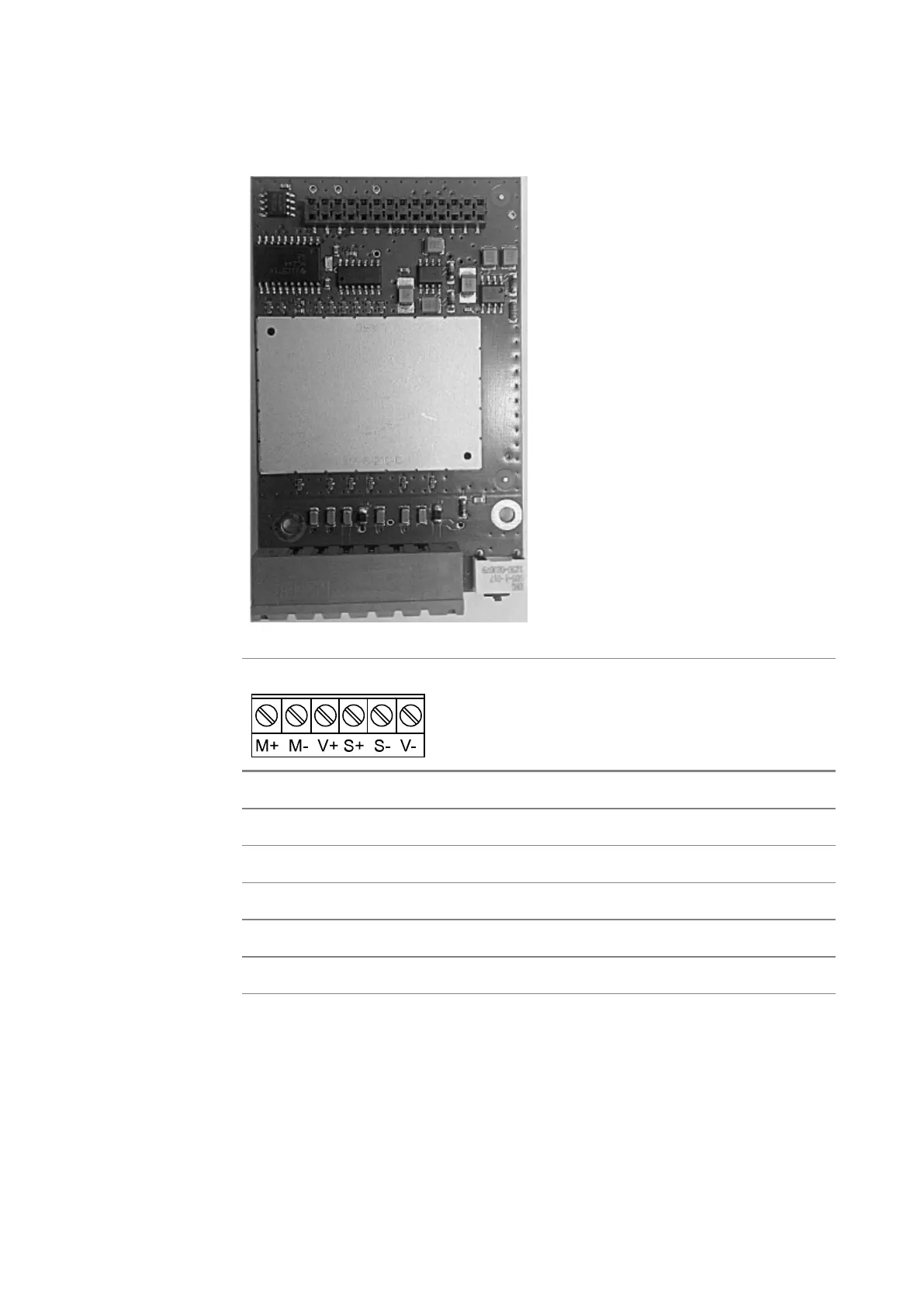

4.3.2 Analog weighing electronics board
Terminal contact Connection Description
M+ + Meas. + Signal/LC output
M- - Meas. - Signal/LC output
V+ + Supply + Supply/excitation
S+ + Sense + Sense
S- - Sense - Sense
V- - Supply - Supply/excitation
The analog weighing electronics board, including CAL switch, is located on
the main board.
Calibration data and parameters are saved to the EAROM (non-volatile mem
ory) of the weighing electronics board.
